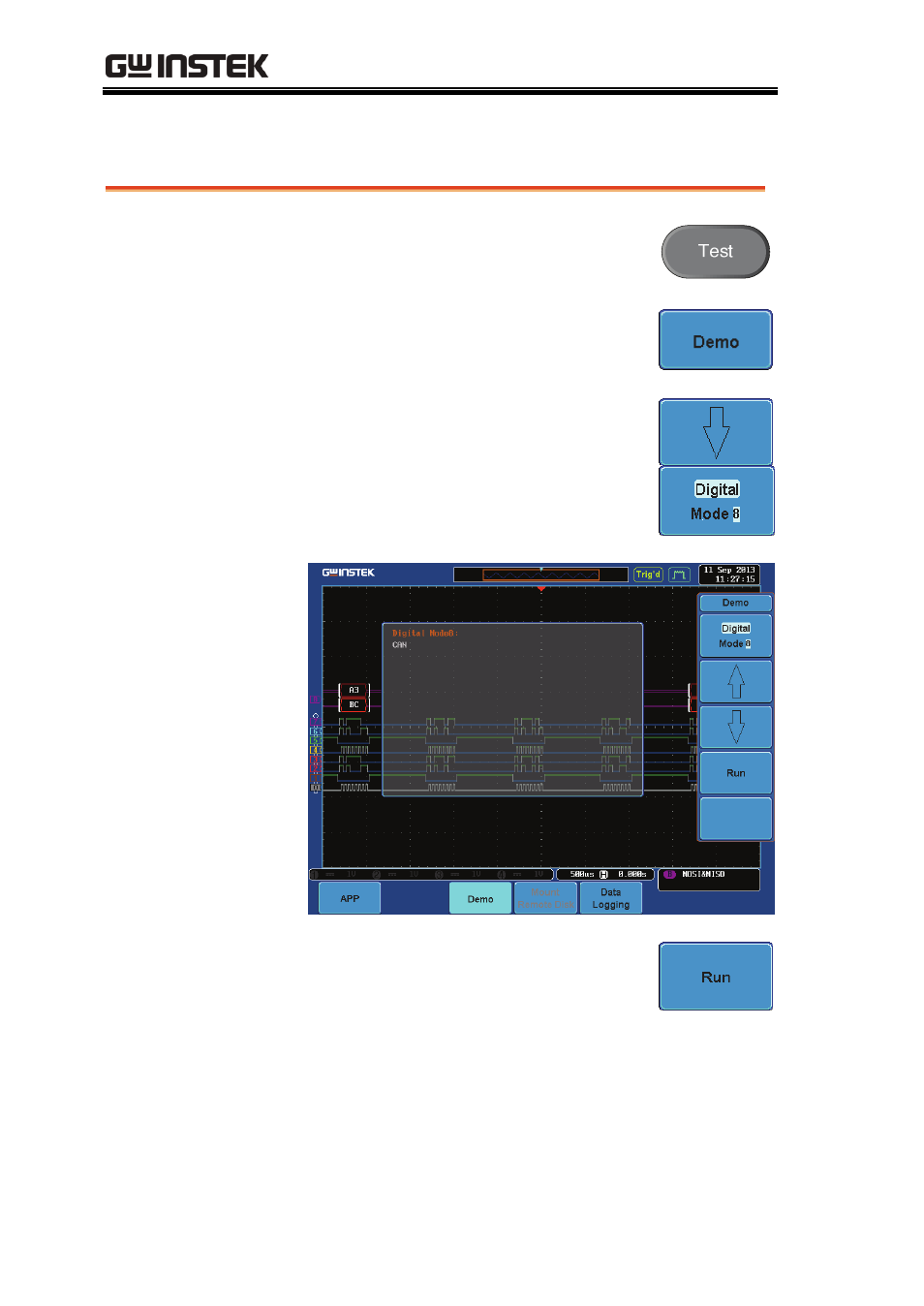

Display CAN (Digital Mode 8)

Step

1. Press the Test key on the front

panel of the GDS-2000A.

2. Press the Demo button.

3. Press the Down button to select

Digital Mode 8. A screen
confirming Digital Mode 8 is
selected as shown on the next page
appears.

4. Press the Run button to display the

waveform.
