GDB-03 Demo Module User Manual

36

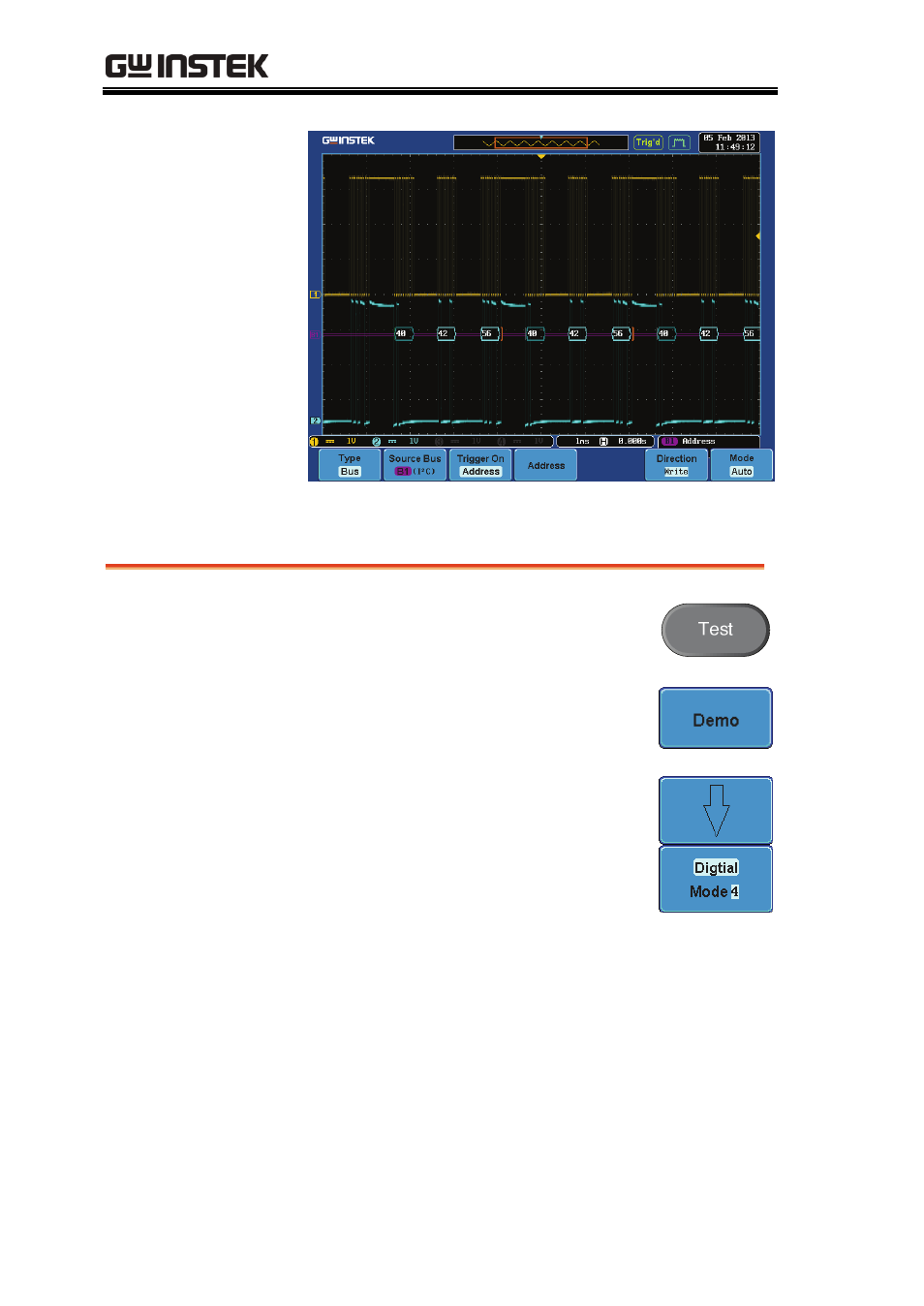

Display SPI (Digital Mode 4)

Step

1. Press the Test key on the front

panel of the GDS-3000.

2. Press the Demo button.

3. Press the Down button to select

Digital Mode 4. A screen
confirming Digital Mode 4 is
selected as shown on the next page
appears.
