GDS-2000A

59

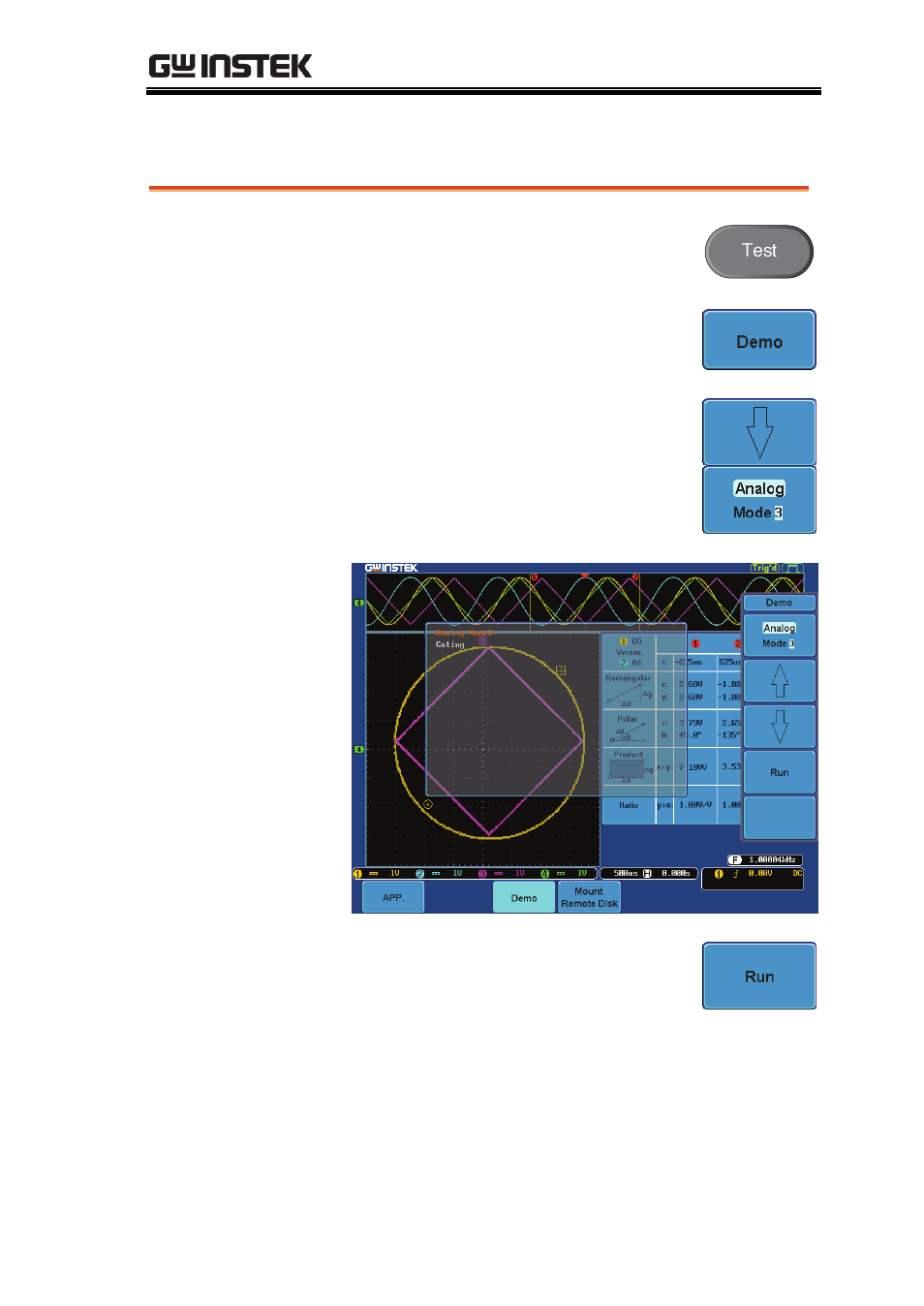

Display Gating Measurement (Analog Mode 3)

Step

1. Press the Test key on the front

panel of the GDS-2000A.

2. Press the Demo button.

3. Press the Down button to select

Analog Mode 3. A screen
confirming Analog Mode 3 is
selected as shown on the next page
appears.

4. Press the Run button to display the

waveform.
