GDB-03 Demo Module User Manual
18
Display Split windows 1 (Analog Mode 2)
Background Display 4 unsynchronized waveforms at different
frequencies in different separate split windows
with different trigger settings

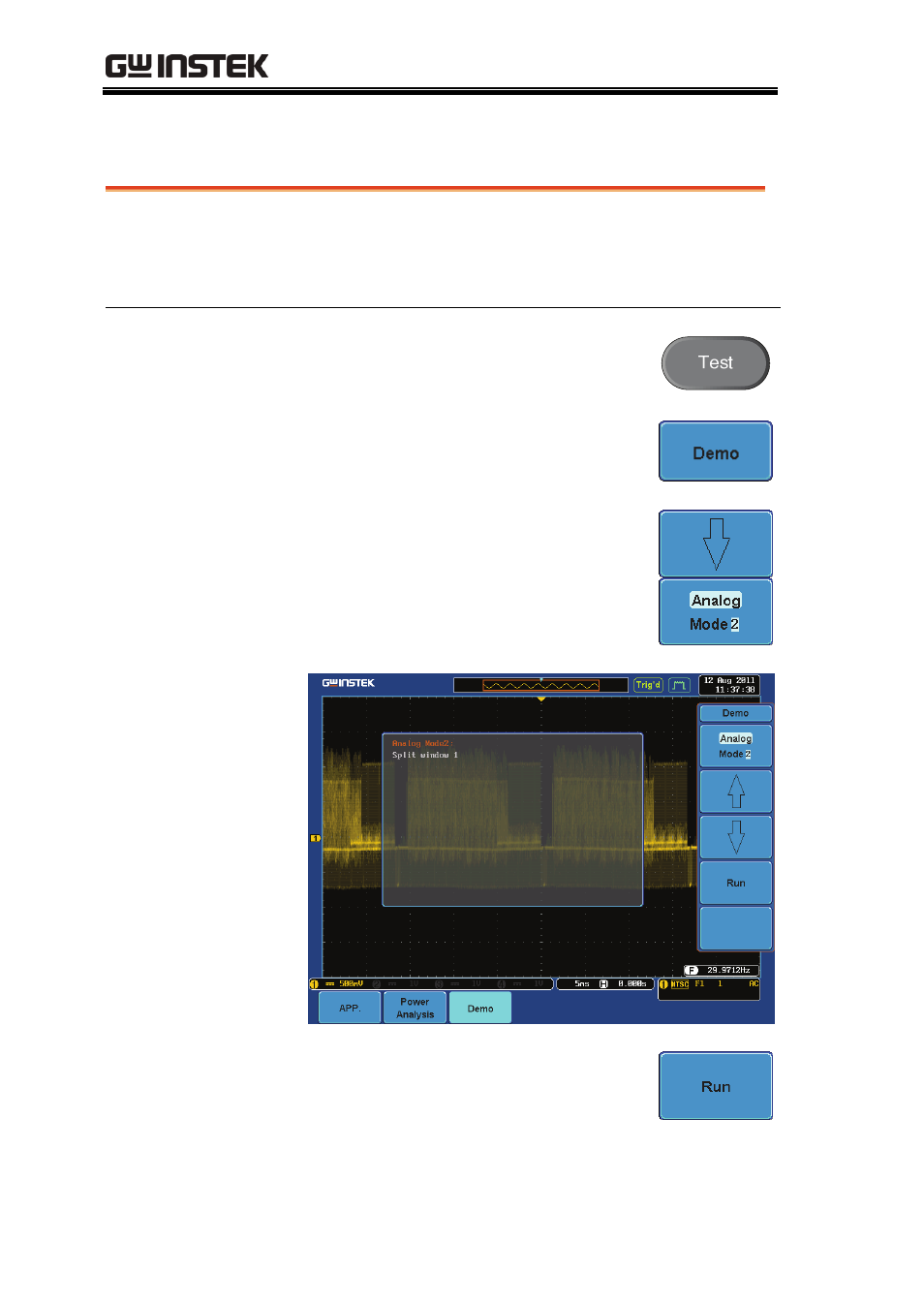

Step 1. Press the Test key on the front
panel of the GDS-3000.
2. Press the Demo button.
3. Press the Down button to select
Analog Mode 2. A screen
confirming Analog Mode 2 is
selected as shown below appears.
4. Press the Run button to display the
waveforms in split windows as
shown on the next page.
