GDB-03 Demo Module User Manual

66

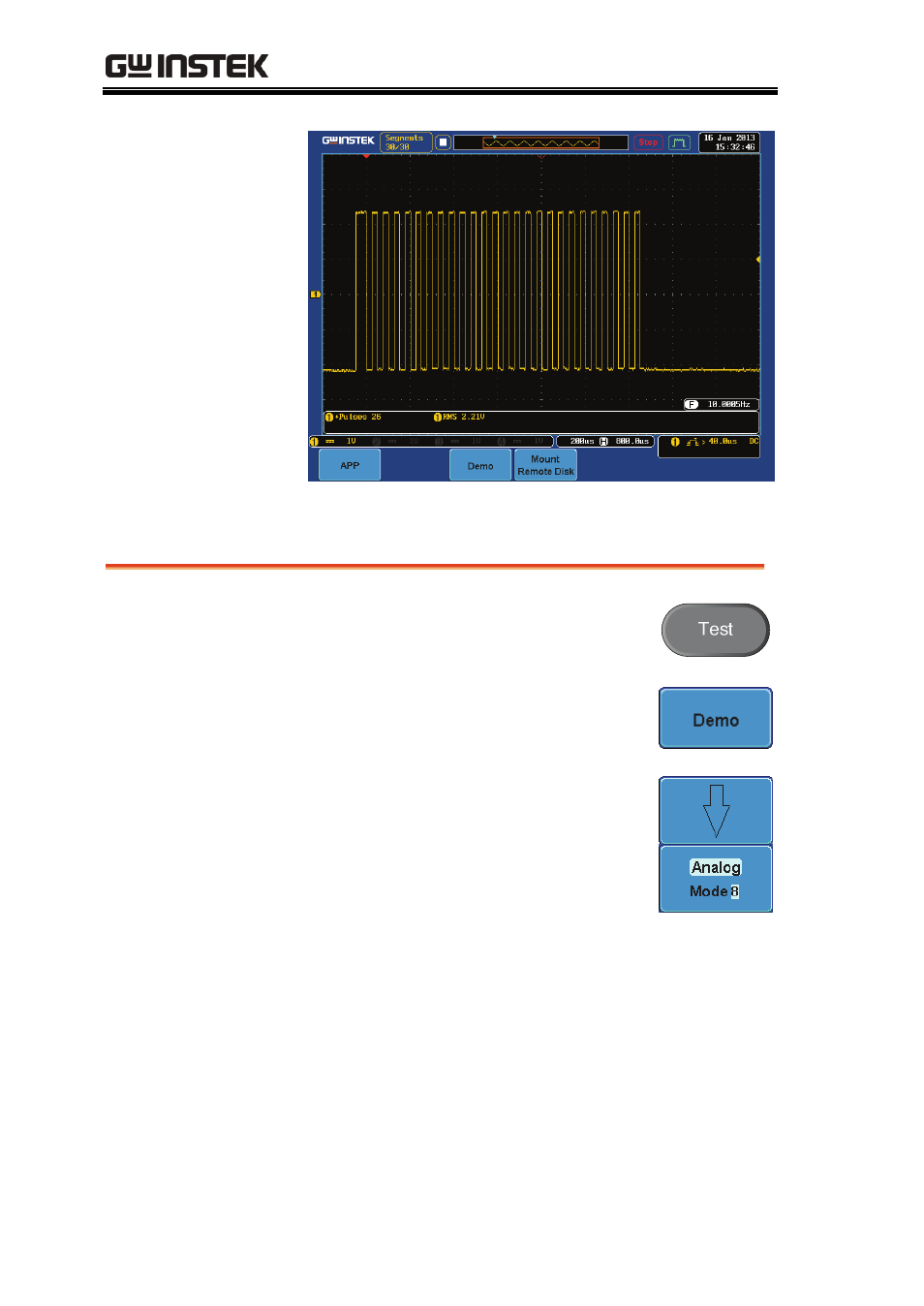

Display Parallel (Analog Mode 8)

Step

1. Press the Test key on the front

panel of the GDS-2000A.

2. Press the Demo button.

3. Press the Down button to select

Analog Mode 8. A screen
confirming Analog Mode 8 is
selected as shown on the next page
appears.
