GDB-03 Demo Module User Manual
40
Display FM (FM mode)

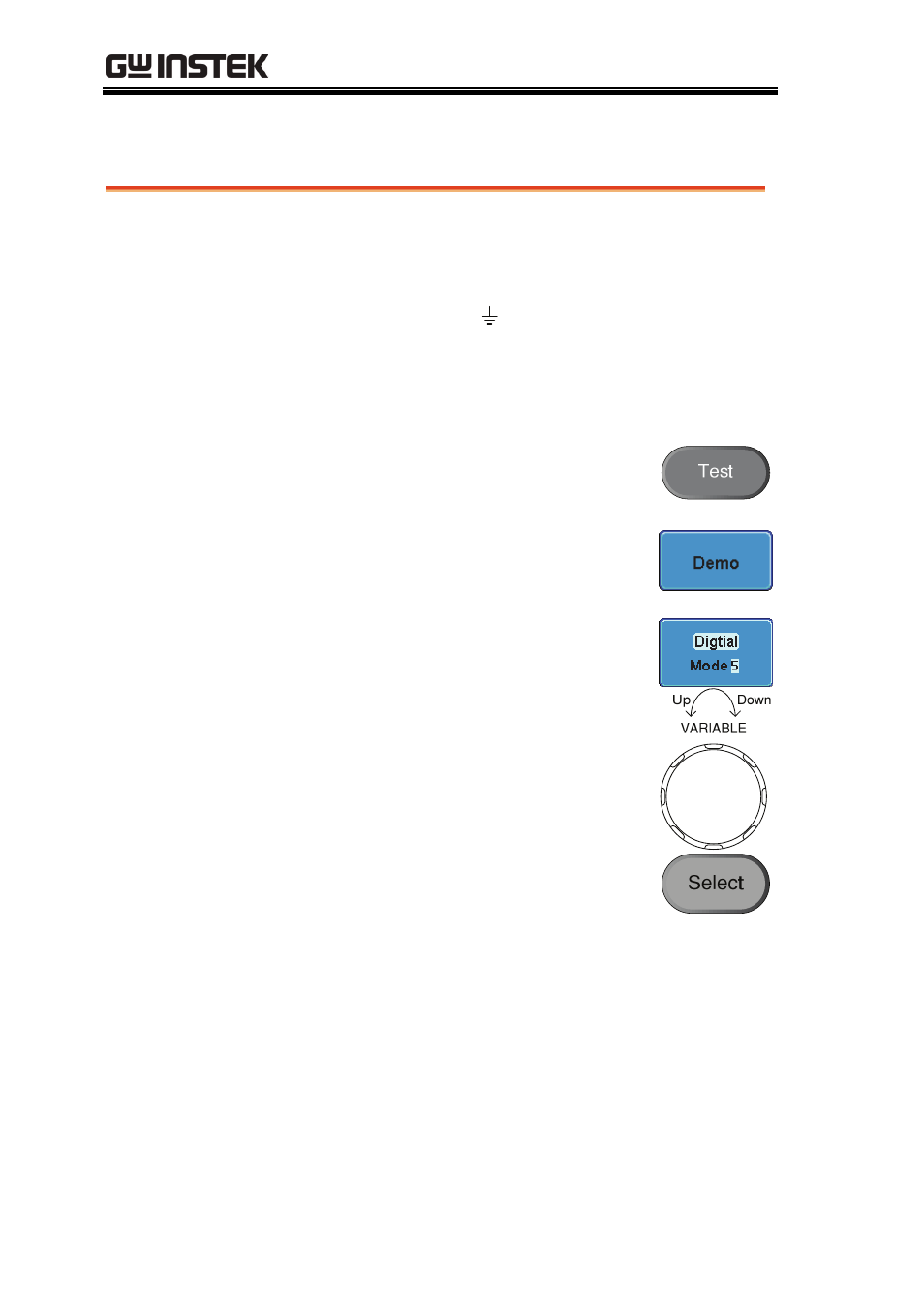

Step 1. Connect a probe to the FM
terminal on the demo board.
Connect the grounding clip to the
ground terminal ( ).
2. Connect the other end of probe to
CH1 terminal on the GDS-3000.
3. Press the Test key on the front
panel of the GDS-3000.
4. Press the Demo button.
5. Press the Digital mode button (F1
button). Use the Variable knob to
select FM mode. Press the Select
button to confirm FM mode is
selected.
