GDS-3000
19

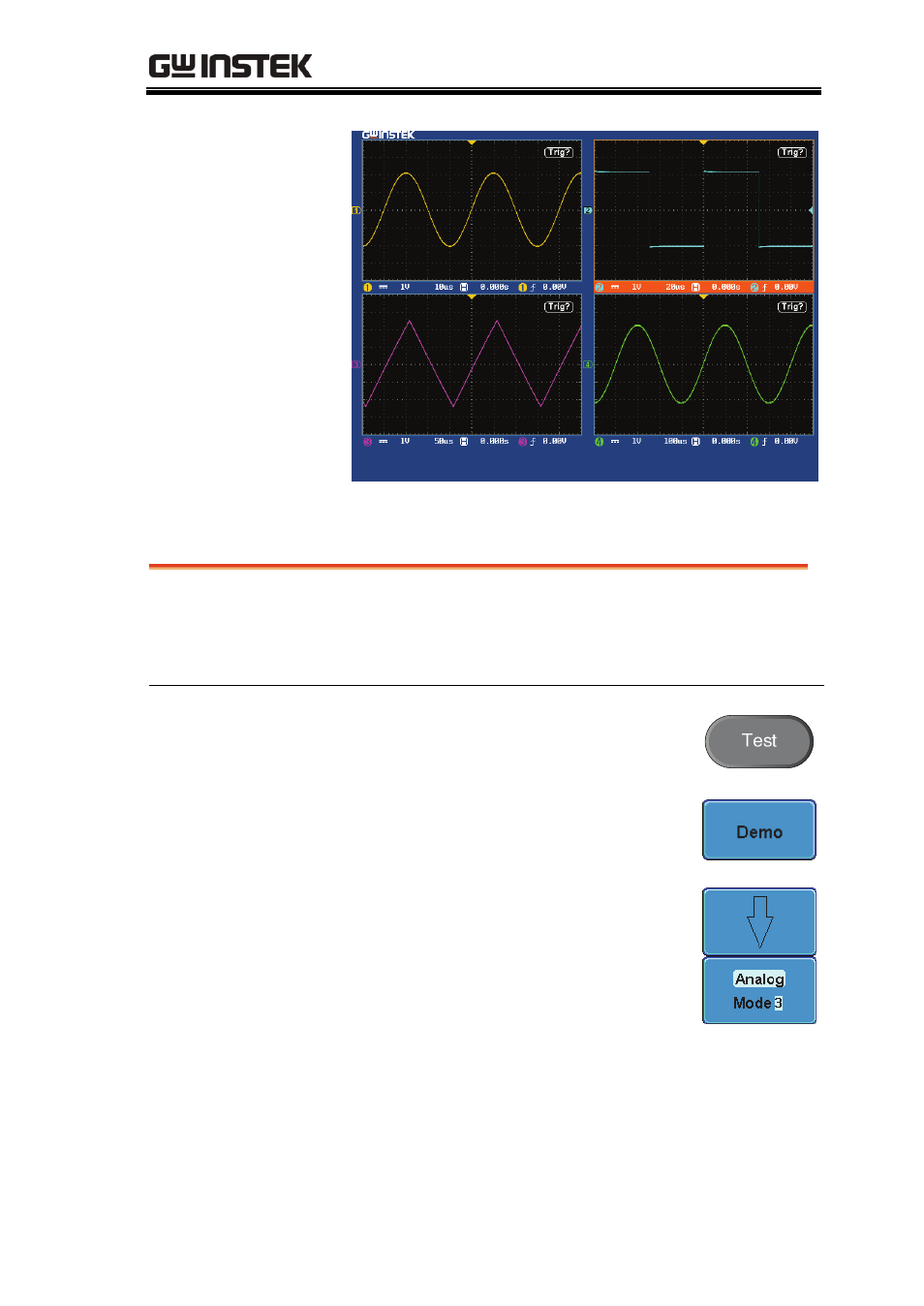

Display Split windows 2 (Analog Mode 3)
Background Display a signal (a more complex signal) that can
have different settings and be displayed in four
split windows.
Step 1. Press the Test key on the front
panel of the GDS-3000.
2. Press the Demo button.
3. Press the Down button to select
Analog Mode 3. A screen
confirming Analog Mode 3 is
selected as shown on the next page
appears.
