GDB-03 Demo Module User Manual
46

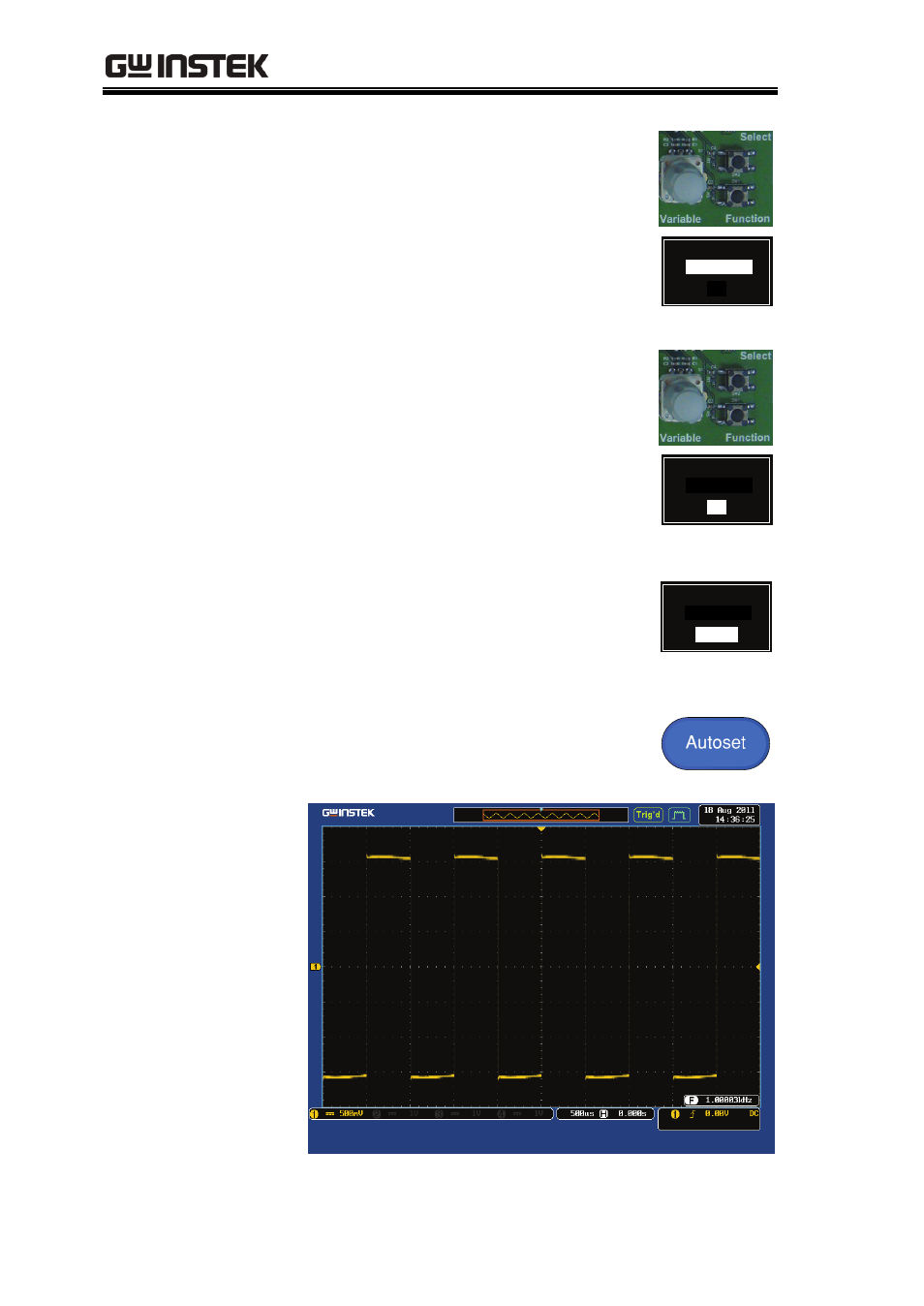

9. Adjust the Variable knob on the
demo board to select the Wave
Type. Wave Type is selected when it
is highlighted on the OLED
display.
10. Push the Select button to change
the highlight to the bottom line on
the OLED display.
11. Adjust the Variable knob on the
demo board to select Square. Square
is selected when it is highlighted
on the OLED display.
12. Press the AutoSet button to display
the Square waveform.
Generator
Wave Type
Sin
Generator
Wave Type
Sin
Generator
Wave Type
Square
