GDB-03 Demo Module User Manual

52

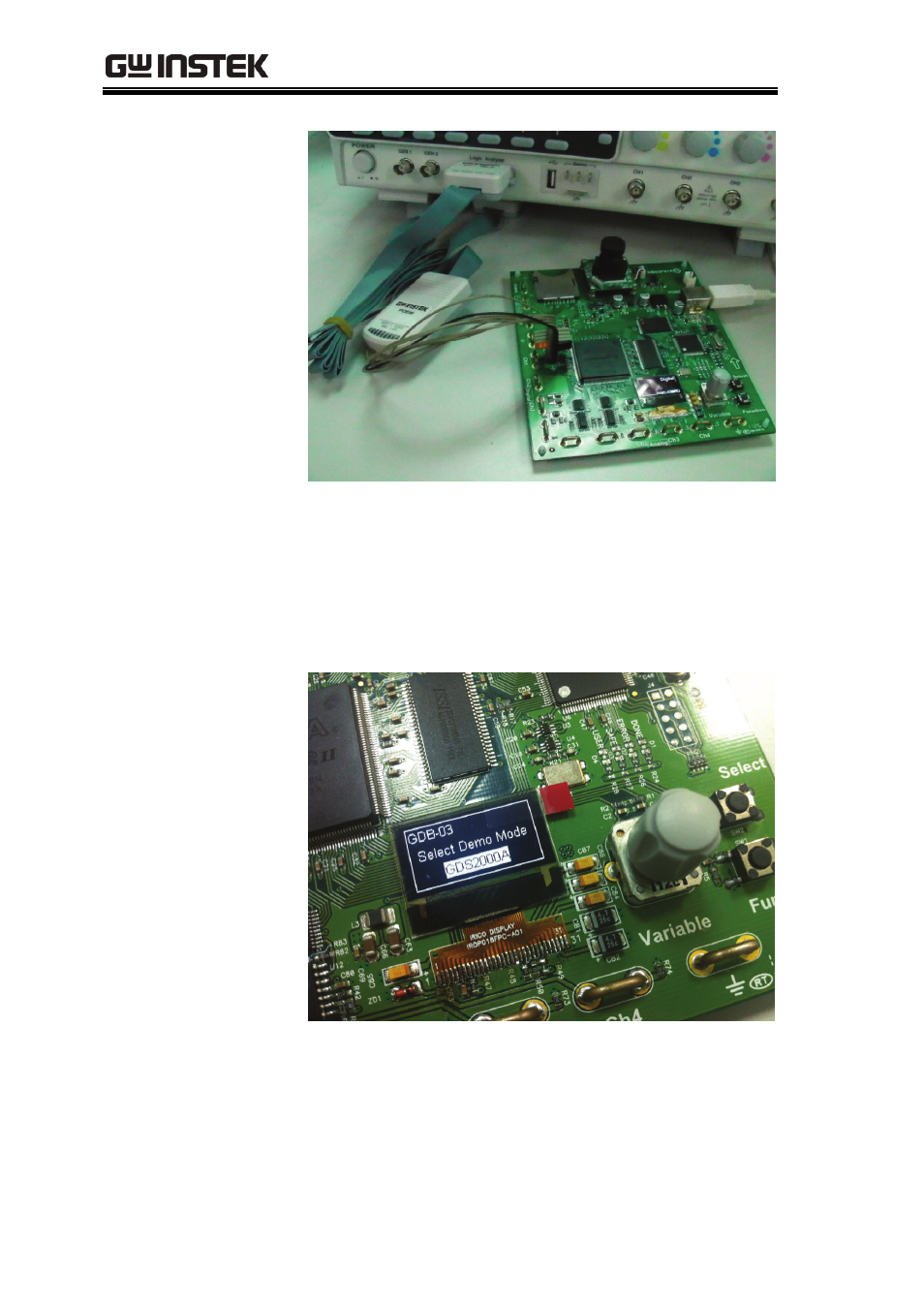

15. Adjust the Variable knob on the demo board to

select which oscilloscope to demonstrate when
the USB cable is connected to the demo board
and the oscilloscope. The GDS-2000A is selected
when it is highlighted on the OLED display.
