GDS-2000A

65

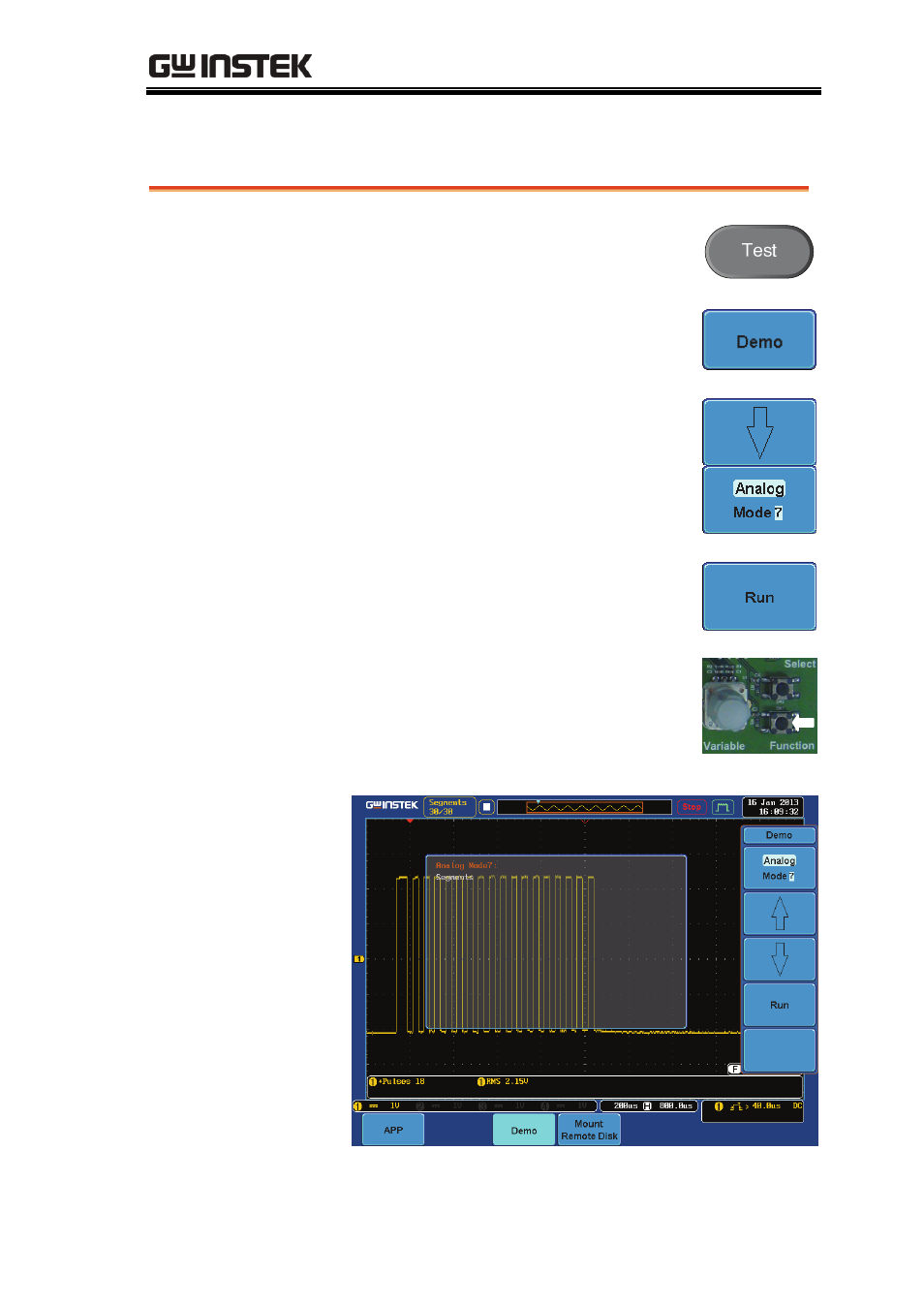

Display Segments (Analog Mode 7)

Step

1. Press the Test key on the front

panel of the GDS-2000A.

2. Press the Demo button.

3. Press the Down button to select

Analog Mode 7. A screen
confirming Analog Mode 7 is
selected as shown below appears.

4. Press the Run button to display the

waveform.

5. The function key on the demo

board should be press down before
the segments waveform can be
outputted.
