A-28
M
ODEL
8100 U
SER
/ I
NSTALLATION
M
ANUAL
2. Slide the dispenser mounting tray
to its fully extended position
(Figure 2).

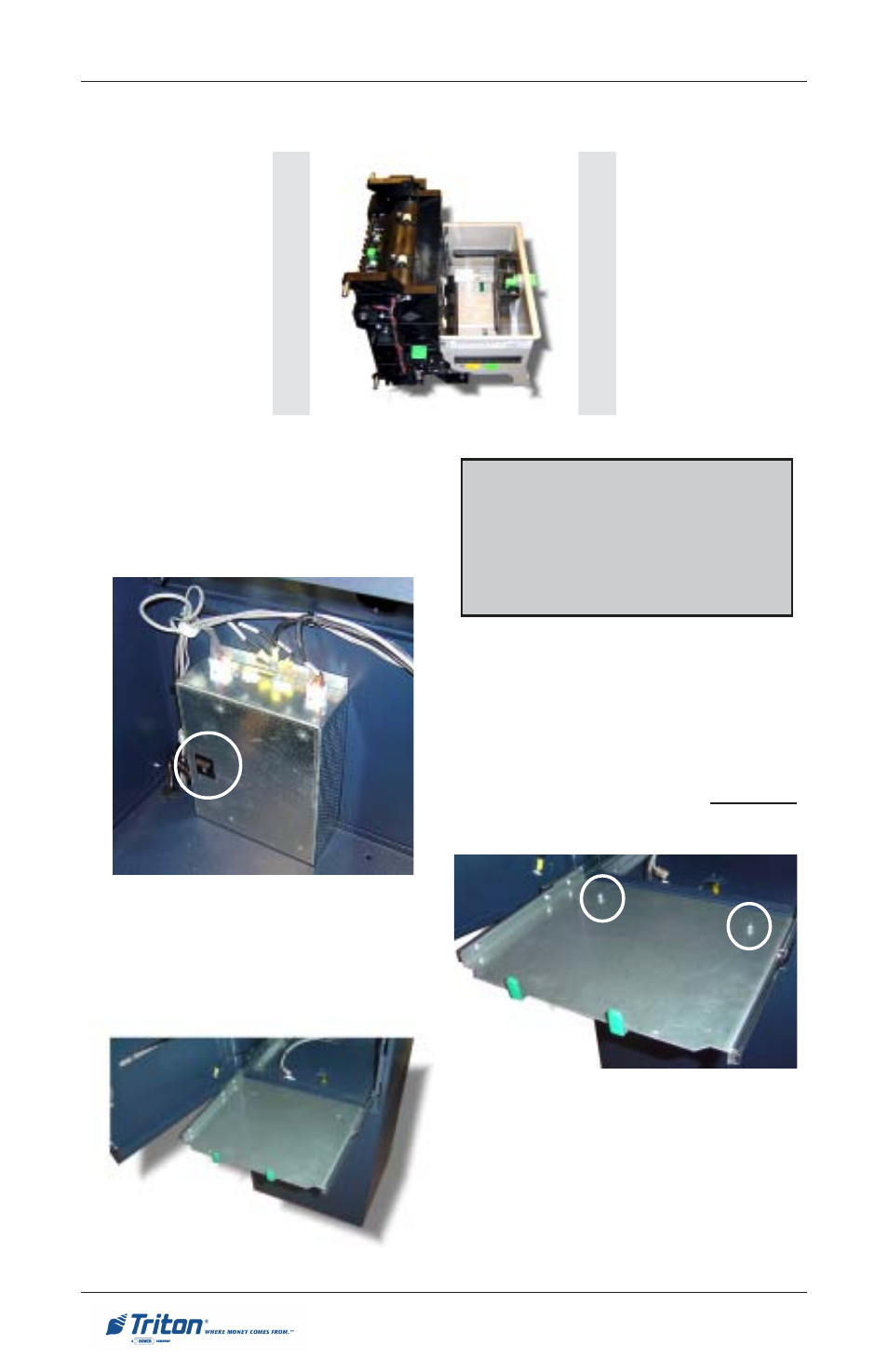

I
NSTALLING THE
TDM-50 D
ISPENSING
M
ECHANISM
Figure 3. Loosen phillip screws in rear
mounting holes.
3. Mounting tray. Using a phillips
screwdriver, remove the front two
(2) screws and loosen the rear 2.
Retain the front screws. The rear
screws will act as a guide for
installing the dispenser. DO NOT
tighten these screws at this time.
1. Refer to Figure 1. Unlock and open
the control panel. Verify that the
power switch is in the OFF (0)
position. Close the control panel.
Figure 1. Power switch location.
Four, 6-32 x 5/16 phillips screws
(02054-00098) are required to attach
the dispensing mechanism to the
mounting tray. The screws are pre-
installed on the tray.
TDM-50
Figure 2. Dispenser mounting tray
fully extended.
