A-25

I

NSTALLATION

P

ROCEDURES

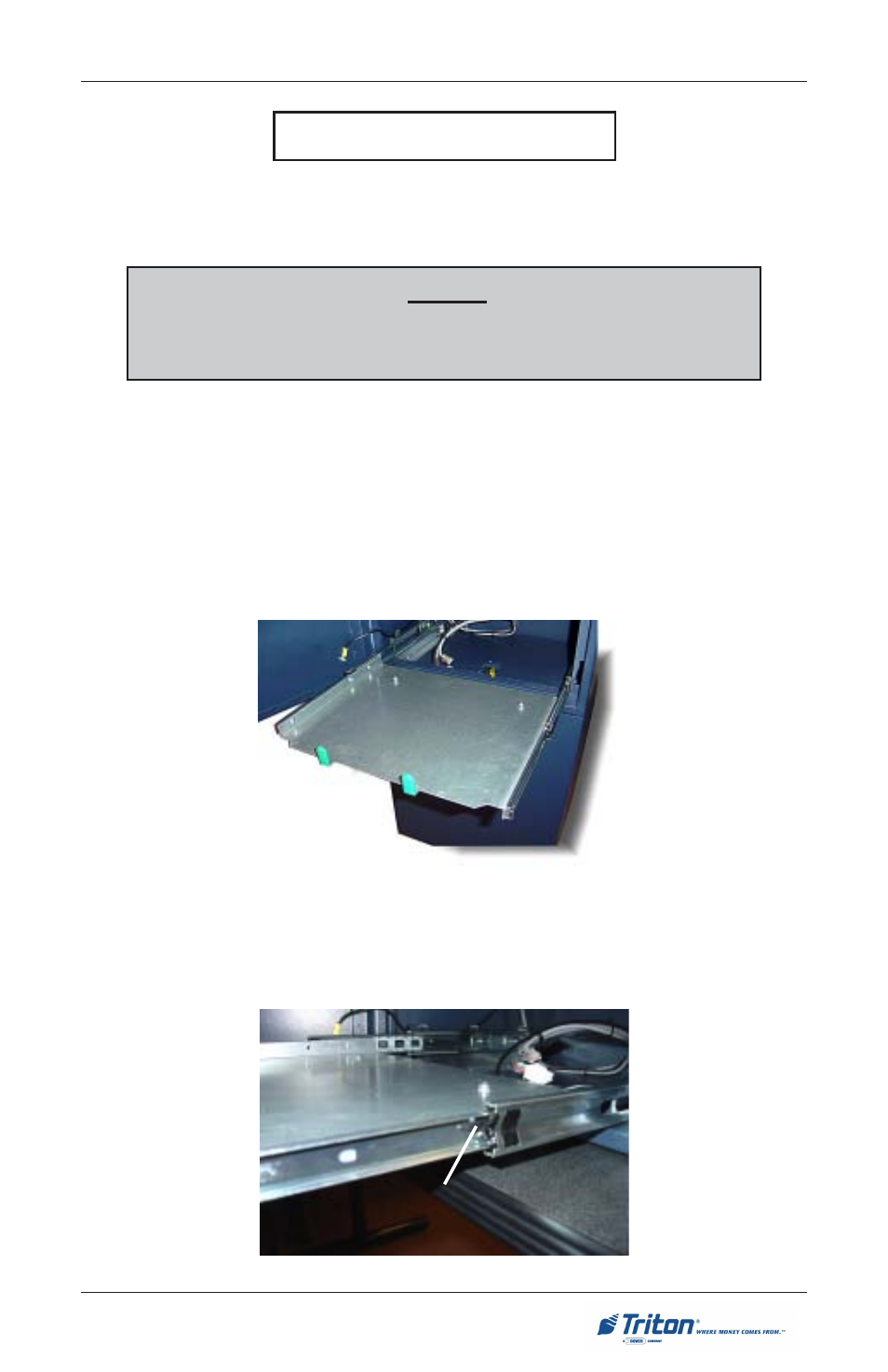

Before mounting the ATM cabinet to the plinth, some preliminary steps may be
helpful for ease of installation.

!

!!

!!

Lift/place the ATM cabinet on a table, bench, etc. Open the security door

and slide the dispenser tray out fully. This will be temporarily removed.

TOOLS:

#2 Phillips screwdriver
7/16" nutdriver or equivalent

!

!!

!!

Locate the locking slide tabs on each side of the slide rails. Push tabs up/

down on each side and remove tray from rails. Push rails back into cabinet and
set tray aside.

Locking side tab

NOTICE

It is highly recommended that steps requiring lifting of the ATM
cabinet be performed by 2 personnel.

Mount/Install ATM
