Hierarchical QoS (HQoS) for 8x10G modules
5
HQoS Queue Schedulers - Customer Traffic
Strict Priority (SP)
Figure 25 depicts the SP scheduling model for HQoS other traffic. All the 4 scheduler inputs are SP.

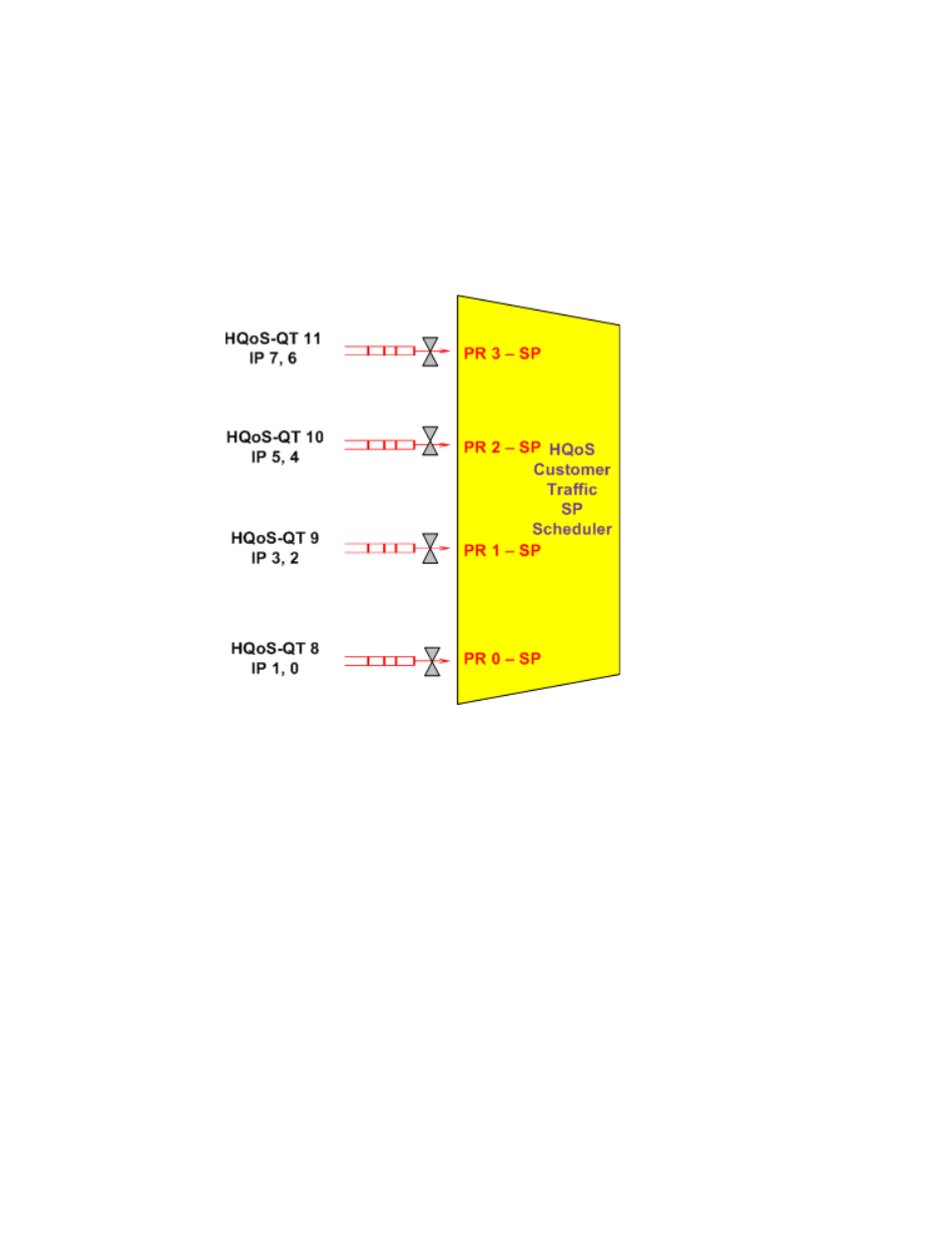

FIGURE 25 SP scheduling model for HQoS other traffic
HQoS-QT stands for hqos-queue-type. The range is <8-11>.
IP stands for internal priority. The range is <0-7>.
PR stands for scheduler-input (the ordering of a flow with respect to a scheduler which is specified
in the hqos scheduler policy). The range is <0-3>.
