<2. FIELDBUS COMMUNICATION CONTROL CARD>

2-1

IM 11M12D01-61E

2. CONTROL CARD FOR FIELDBUS

COMMUNICATION

Fieldbus simulation functions on the control card are enabled using the SIMULATE_ENABLE switch.
For details of the simulation functions, see Sec. 6.3 Simulation Functions.

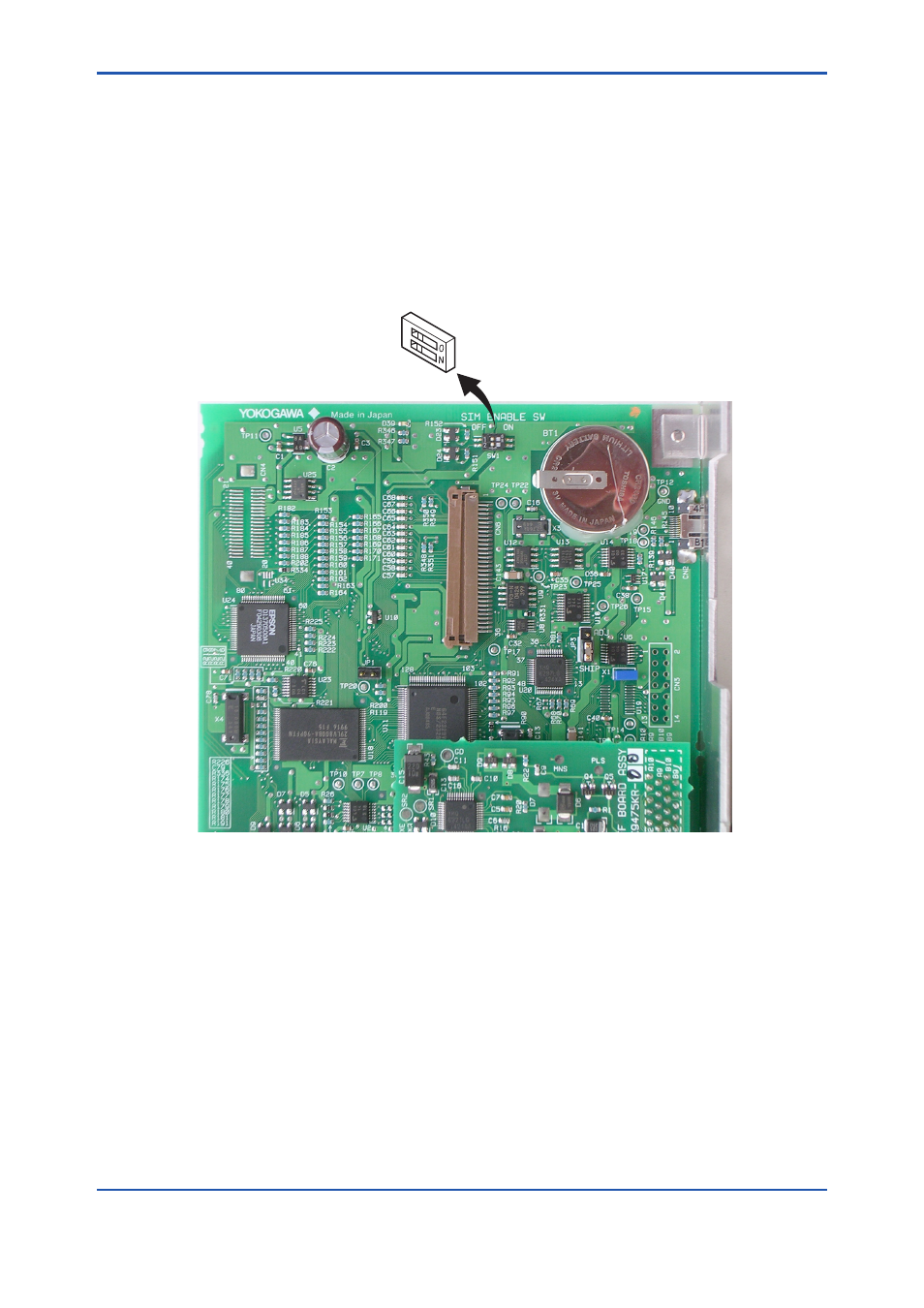

Fig. 2.1 Fieldbus Communications Control Card.

SIMULATE_ENABLE

Switch
