Silver Series OIT  46  Watlow Addendum

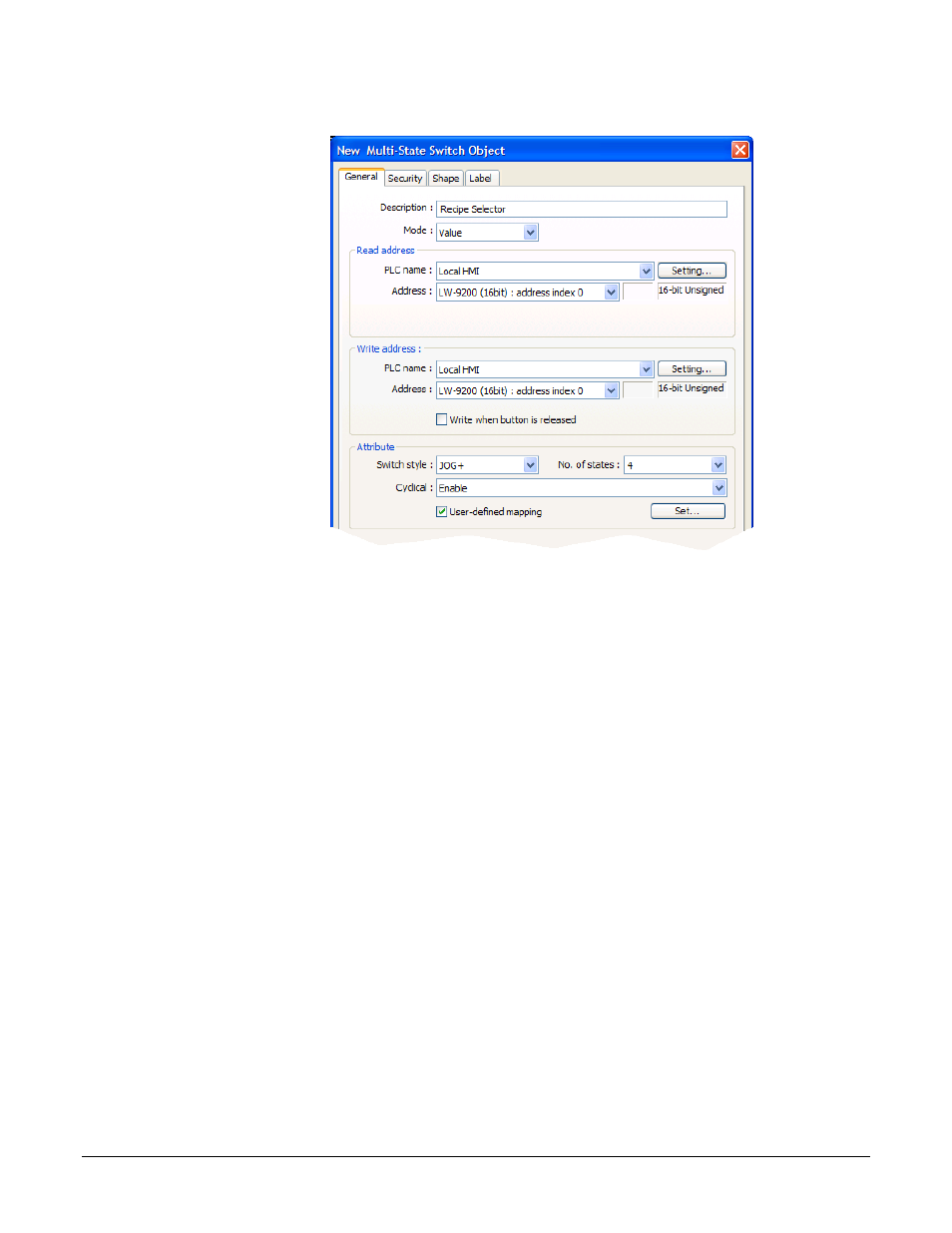

To select the recipe to save to or load from create a multi-state switch to select the recipe as
follows:
1) On the Objects menu
point to Buttons and
choose Multi-State
Switch.
2) In Description type
“Recipe Selector”.
3) Click Read address
Setting…
4) For PLC name
choose the OIT
(Local HMI by
default).
5) Check System tag.
6) For Device type
choose LW-9200
(16bit) : address
index 0.
7) Click OK to close
the Address dialog.
8) Click Write address
Setting…
9) For PLC name
choose the OIT
(Local HMI by
default).
10) Check System tag.
(069)
11) For Device type choose LW-9200 (16bit) : address index 0.
12) Click OK to close the Address dialog.
13) For Switch style choose JOG+.
14) For No. of states choose the number of recipes you want to store.
15) For Cyclical choose Enable.
16) Check User-defined mapping.
