Silver Series OIT

 43 

Watlow Addendum

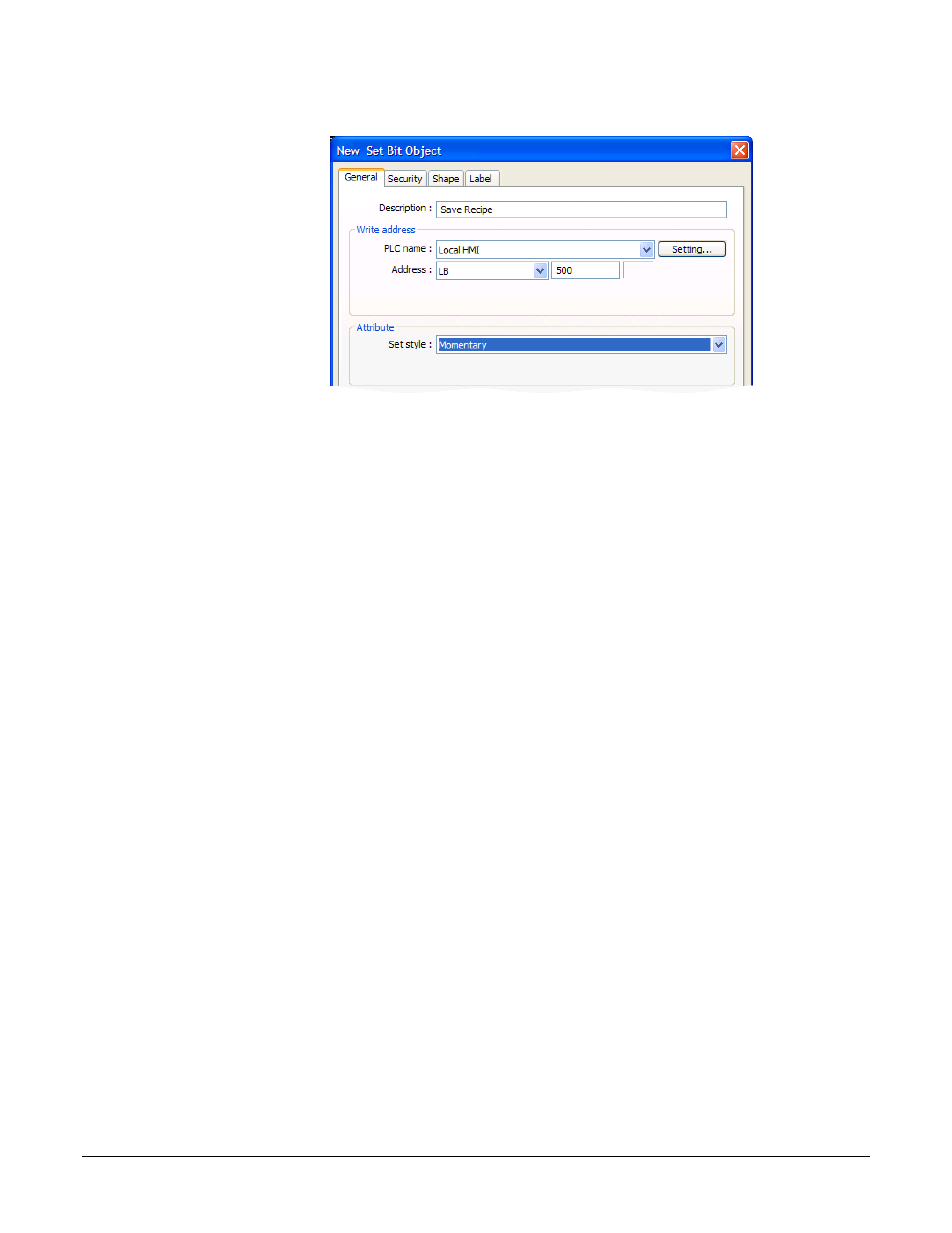

To create a button to trigger the data transfer objects to copy the values currently in the
controller to the corresponding recipe memory in the OIT:

1) On the Objects

menu, point to
Button and choose
Set Bit.

2) In Description type

“Save Recipe”.

3) For PLC name

choose the OIT
(Local HMI by
default).

4) For Address choose

LB and type 500.

(063)

5) For Set style Choose Momentary.

6) Click the Label tab.

7) Check Use label.

8) In Content for state 0 type “Save to OIT”.

9) Click OK.

10) Place the button.

To create a button to trigger the data transfer objects to copy the values currently in the OIT’s
recipe memory to the controller:

1) On the Objects menu, point to Button and choose Set Bit.

2) In Description type “Load Recipe”.

3) For PLC name choose the OIT (Local HMI by default).

4) For Address choose LB and type 501.

5) For Set style Choose Momentary.

6) Click the Label tab.

7) Check Use label.

8) In Content for state 0 type “Load from OIT”.

9) Click OK.

10) Place the button.

Note: Using pictures for buttons may help operators.
