Silver Series OIT  22  Watlow Addendum
Add an Option List for Control Mode
This example assumes you have created a window in a project that communicates with a Watlow
Controller and that window is open in EasyBuilder5000.

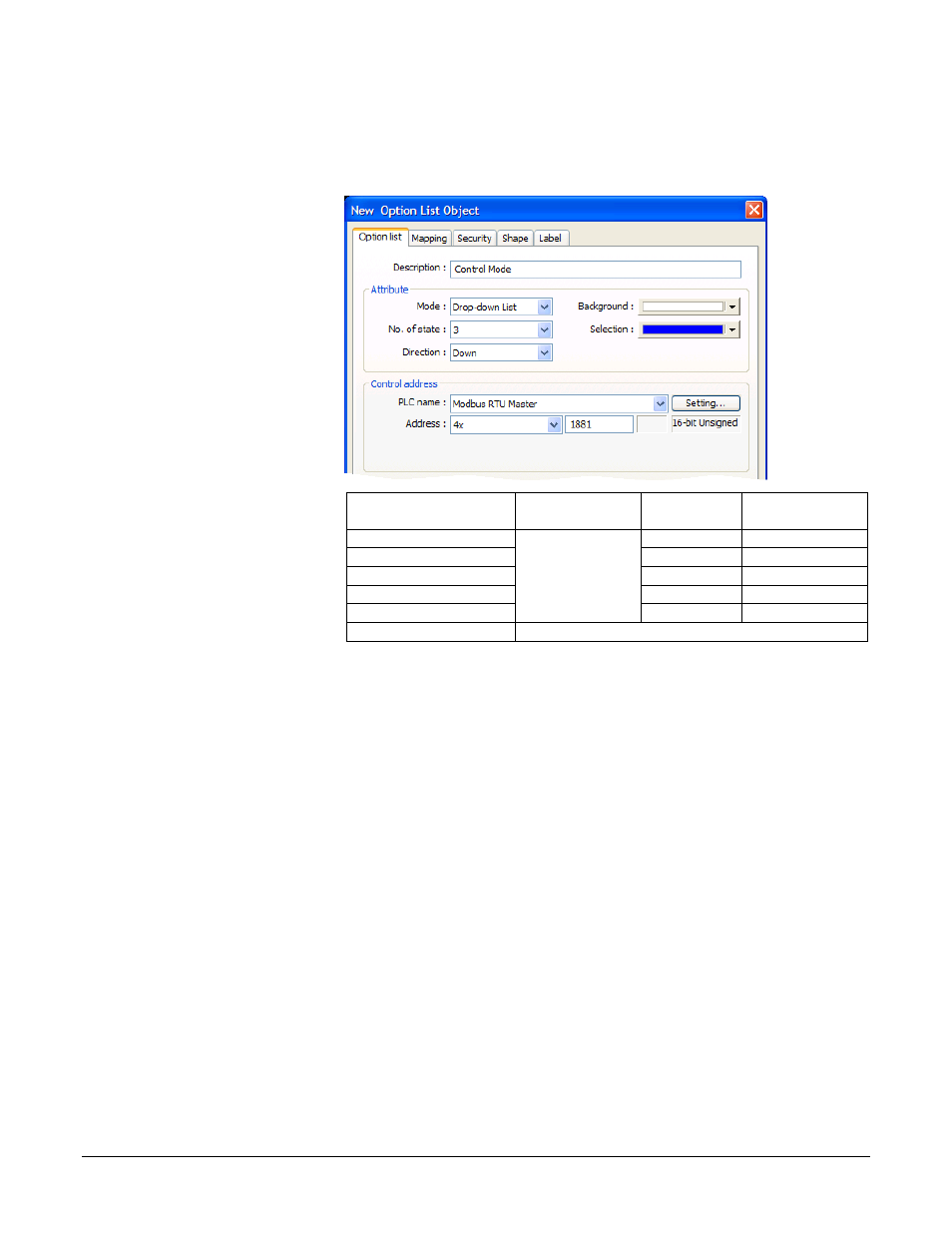

1) On the Objects menu,
click Button then
choose Option List.
2) Click the General tab.
3) In Description type
Control Mode.
4) Set Mode to Drop-
down list.
5) Set No. of states to 3.
6) In the Control address
group:
• For PLC name choose
Modbus RTU Master or
Modbus TCP/IP Master.
• Click Setting…
• For Device type choose
4x.
• In Address enter the
address of the Control
Mode. See the table.
• Select the data type in
the field below the
Address field.
• Click OK to close the
Address dialog
7) Click the Mapping
tab.
(019)
For this controller…
This
parameter… Enter this
Address*… Choose this
Data Type…
RMCxxxx-xxxxxxx
Control Mode
2221 16-bit Unsigned
RMHx-xxxx-x1xx 4101 16-bit Unsigned
PMxxxxx-xxxxxxx 1881 16-bit Unsigned
STxx-xxMx-xxxx 222 16-bit Unsigned
ST via RUI Gateway 1881 16-bit Unsigned
Other Controllers Consult the controller manual.
*These addresses have already been changed to the absolute form required
for EasyBuilder5000 by adding 1 to the value listed in the Watlow manual.
Enter them as listed.
