Watlow Silver Series Addendum User Manual
Page 21

Silver Series OIT
21
Watlow Addendum

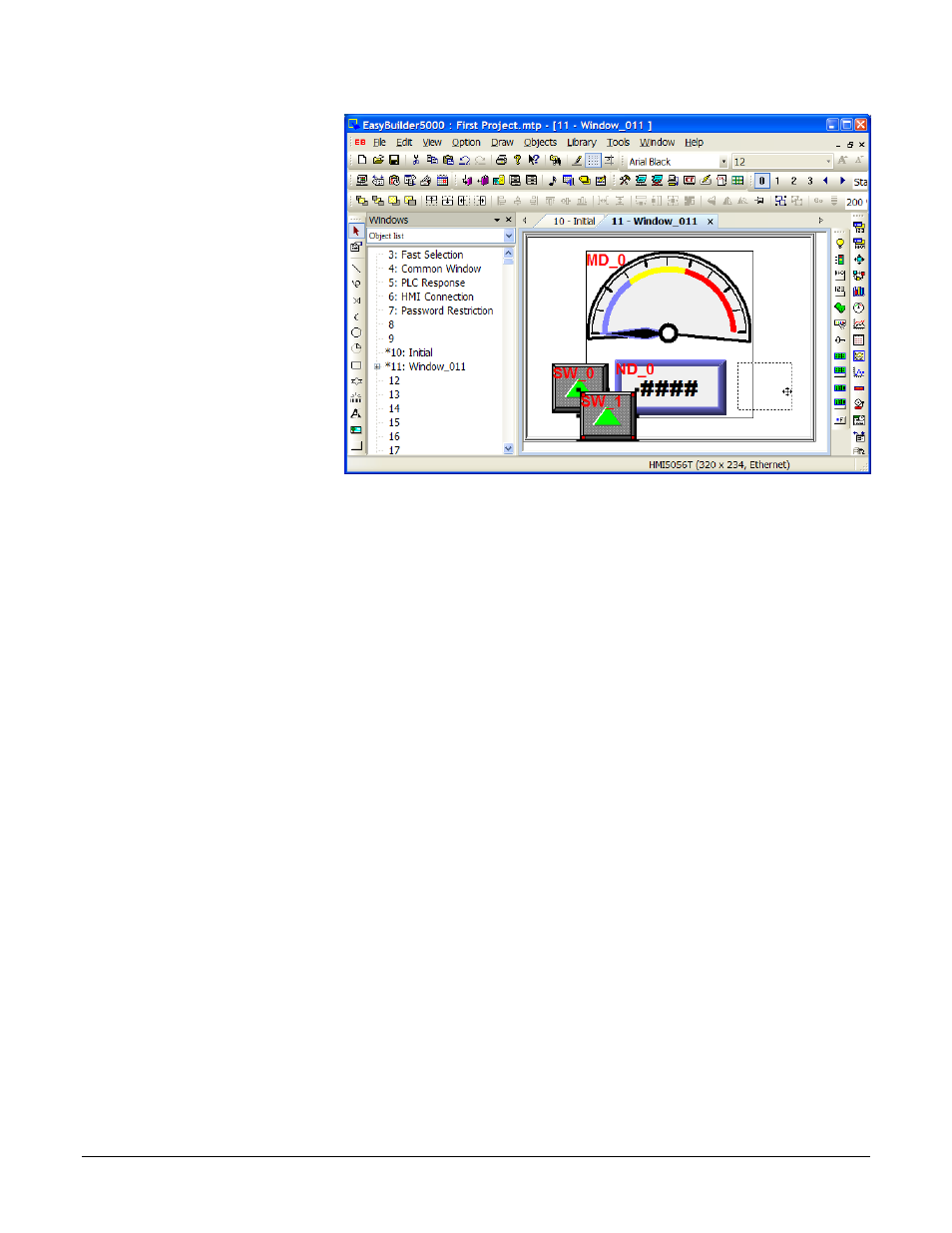

To add a button that decrements the set point:
1) Click the increment
button to select it.
2) From the Edit menu,
choose Copy.
3) From the Edit menu,
choose Paste.
4) Drag the new button to
an appropriate
position.
5) Deselect the button by
clicking on the
window’s background
or another item in the
window.
(018)
6) Double click the new button to edit its properties.
7) On the General tab change:
• Description to Decrement Set Point
• Set Style to Press and hold decrement (JOG--).
8) Set Bottom Limit to 0.
9) On the Shape tab click Shape Library…
10) Locate the button with the triangular arrow pointing down and click it.
11) Click OK to close the Shape Library.
12) Click OK to close the Set Word Object Properties dialog.
13) From the File menu choose Save.
