Silver Series OIT
34
Watlow Addendum

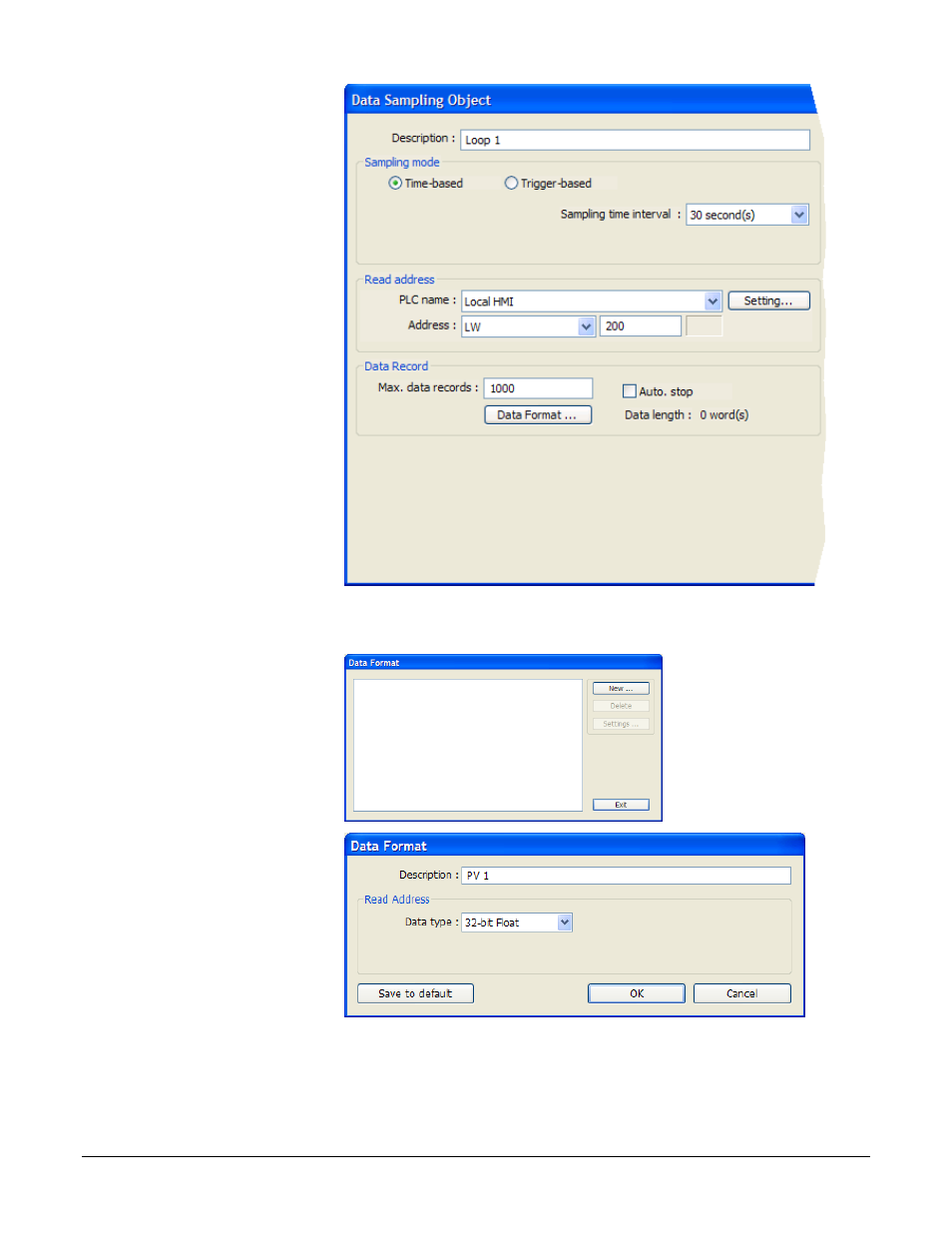

3) In Description type a
description for the set
of data such as “Loop
1”.
4) For Sampling mode
choose Time-based.
5) For Sampling time
interval choose the
time between samples.
6) For Read address
PLC name choose the
OIT (“Local HMI” by
default).
7) For Read address
device type choose
LW.
8) In Read address
Address type the first
address to which data
was copied. In the
example, this is 200.
(045)
9) In Max. data records type the number of records to save in a file.
10) Click Data Format…
11) For each item to be
logged in the file:
• Click New…
(046)
• For Data type choose
the data type of the item
being logged. Typically
32-bit Float).
• Enter a description for
the item to be logged,
for example “PV 1”.
• Click OK.
(047)
