Watlow Silver Series Addendum User Manual
Page 30

Silver Series OIT
30
Watlow Addendum
To download the project via a USB drive to an OIT equipped with a USB Host port:
1) Connect at USB drive to the PC

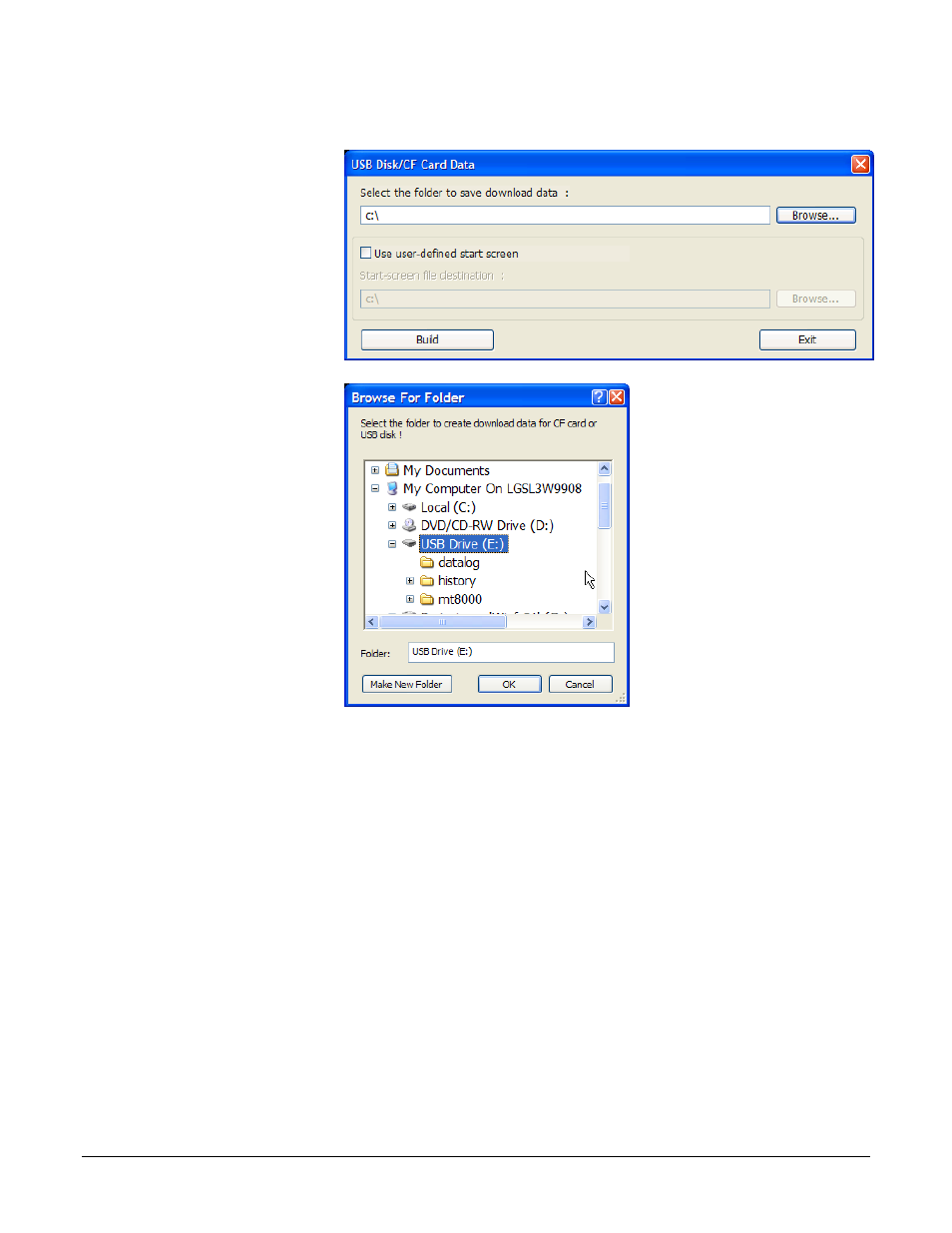

2) From the Tools menu
choose Build Data for
USB Disk or CF Card
Download…
(038)
3) Click Browse…
4) Locate and select the
USB drive.
Note: Do not select a sub
directory of the USB drive.
Select the root.
5) Click OK to close the
Browse For Folder
dialog.
(039)
6) Click Build.
7) When the files are transferred successfully, click OK.
8) Click Exit to close the USB Disk/CF Card Data dialog.
9) Remove the USB drive from the PC.
To download the from the USB drive to the OIT:
1) Connect a USB mouse to the OIT.
2) Apply power to the OIT.
3) Once the OIT is powered up, connect the USB drive to it.
4) When the download/Upload screen appears on the OIT click Download.
Note: You only have a few seconds to do this before the screen times out. If you miss it, disconnect the
USB drive and connect it again.
