Watlow Silver Series Addendum User Manual

Page 29

background image

Silver Series OIT

 29 

Watlow Addendum

• Connect the USB cable to a USB port on the computer.
• If this is the first time you have connected the OIT to the computer via the USB port, locate a

follow the procedure in the EasyBuilder 5000 help, “How Do I Install the Maple Systems USB
driver?”

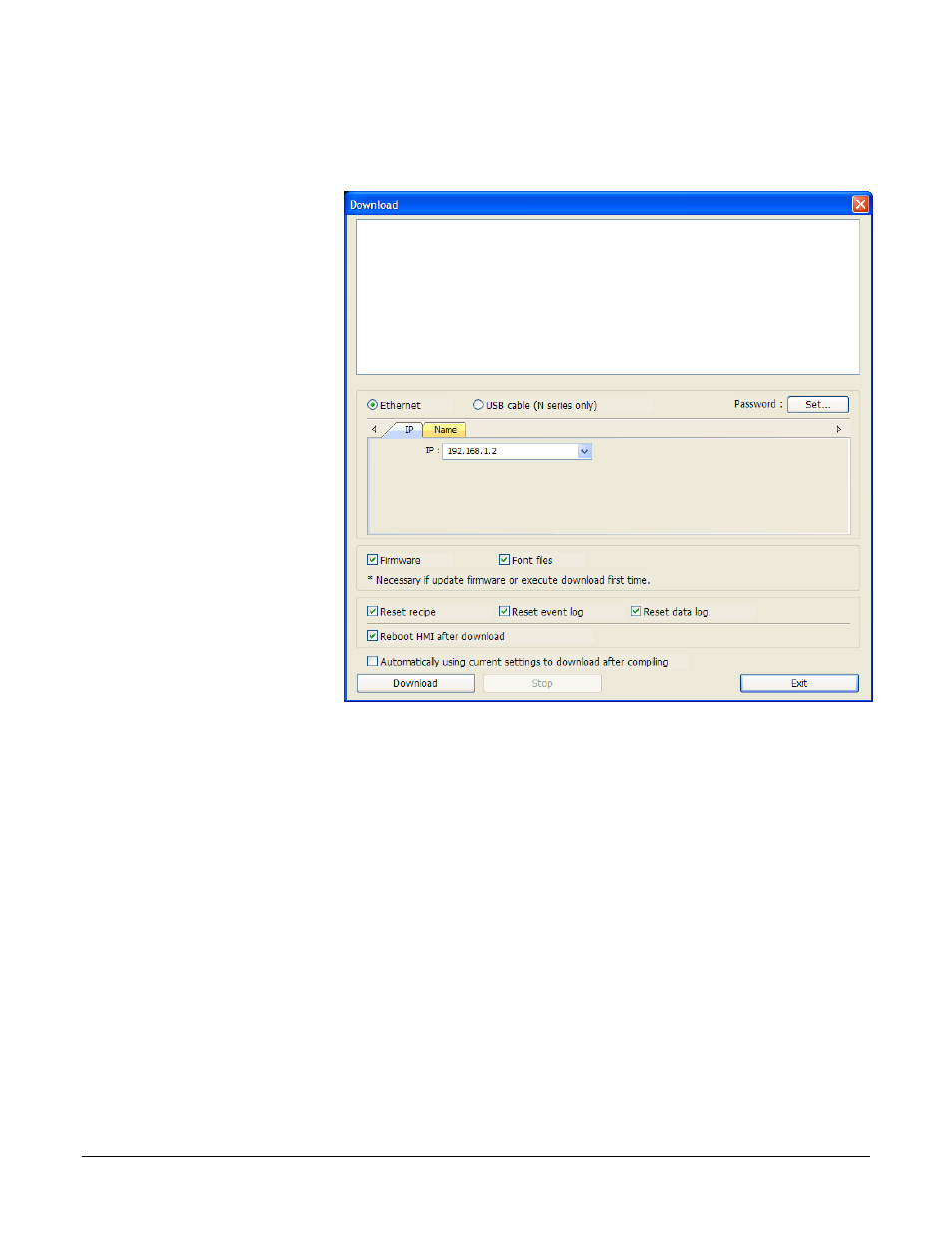

3) In EasyBuilder5000

from the Tools menu,
choose Download.

4) Select Ethernet or

USB cable.

5) For Ethernet, in HMI

IP select or enter the
OITs IP address.

6) Set Password to the

OITs password
(111111 by default).

7) Check Firmware, if

not already checked.

8) Check Reboot HMI

after download, if not
already checked.

9) Click Download.

(035)

10) Once the download is complete, click Exit.
