Silver Series OIT

 15 

Watlow Addendum

9) In the Popup window group, set Start pos. Y to 120 (0 for the 4.3 in. OIT).

10) Click OK.

11) In the Open Window dialog, select Window_11.

12) Click Open.

13) From the File menu choose Save.

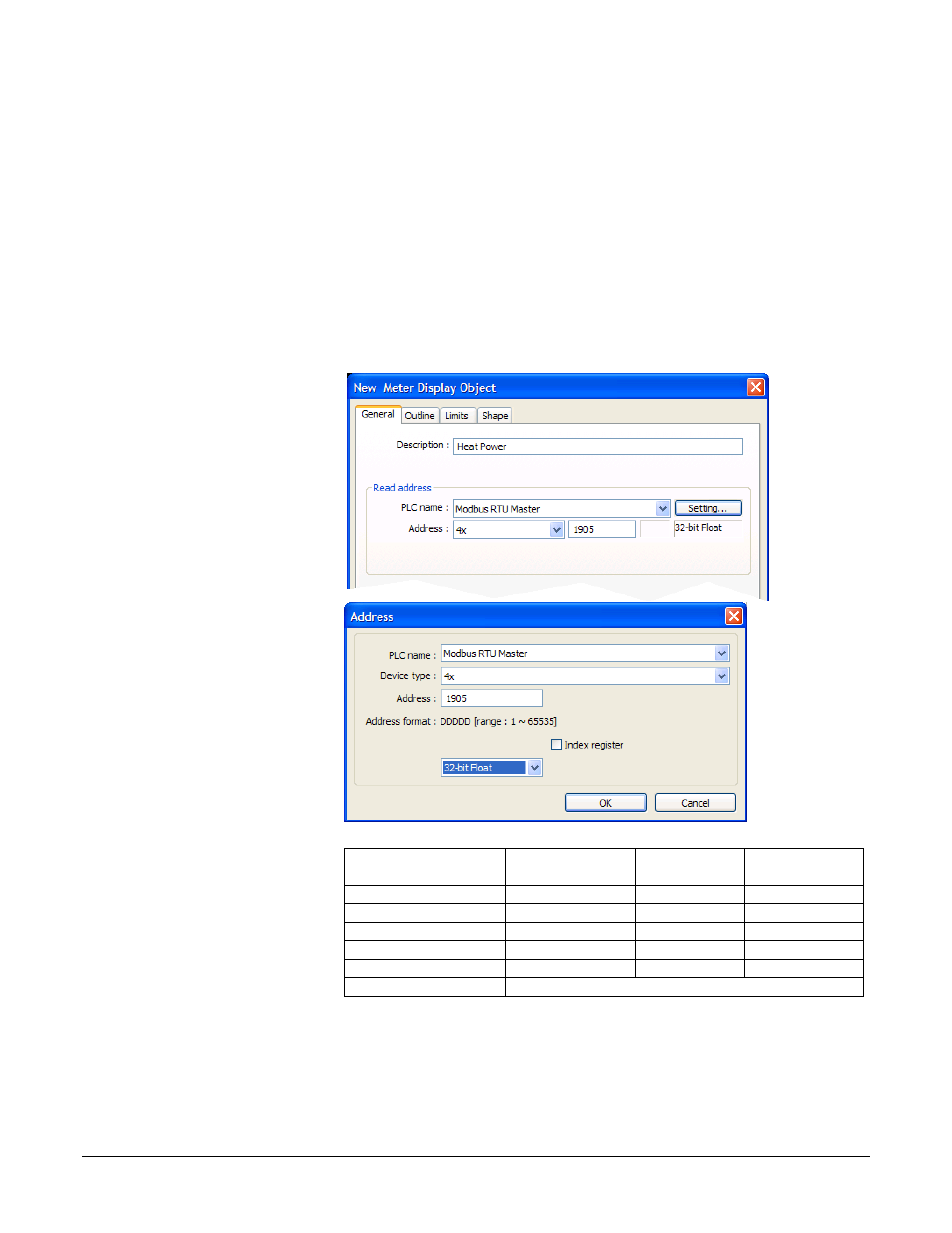

Create a Meter in a Popup Window

This example assumes you have created a popup window in a project that is configured to communicate
with a Watlow Controller and that window is open in EasyBuilder5000.

1) From the Objects

menu, choose Meter
Display
.

2) Click the General tab.

3) In Description type

Heat Power.

4) Click Settings…

5) For PLC name choose

Modbus RTU Master
or Modbus TCP/IP
Master
.

6) For Device type

choose 4x.

(009)

(075)

7) For Address enter the

address of the heat
power for your
controller. See the
table.

8) Select the data type in

the field below the
Address field. See the
table.

9) Click OK.

For this
controller…

This
parameter…

Enter this
Address*…

Choose this
Data Type…

RMCxxxx-xxxxxxx

Heat Power

2245

32-bit Float

RMHx-xxxx-x1xx

Heat Power

4125

32-bit Float

PMxxxxx-xxxxxxx

Heat Power

1905

32-bit Float

STxx-xxMx-xxxx

Heat Power

237

32-bit Float

ST via RUI Gateway

Heat Power

1901

32-bit Float

Other Controllers

Consult the controller manual.

*These addresses have already been changed to the absolute form
required for EasyBuilder5000 by adding 1 to the value listed in the Watlow
manual. Enter them as listed
