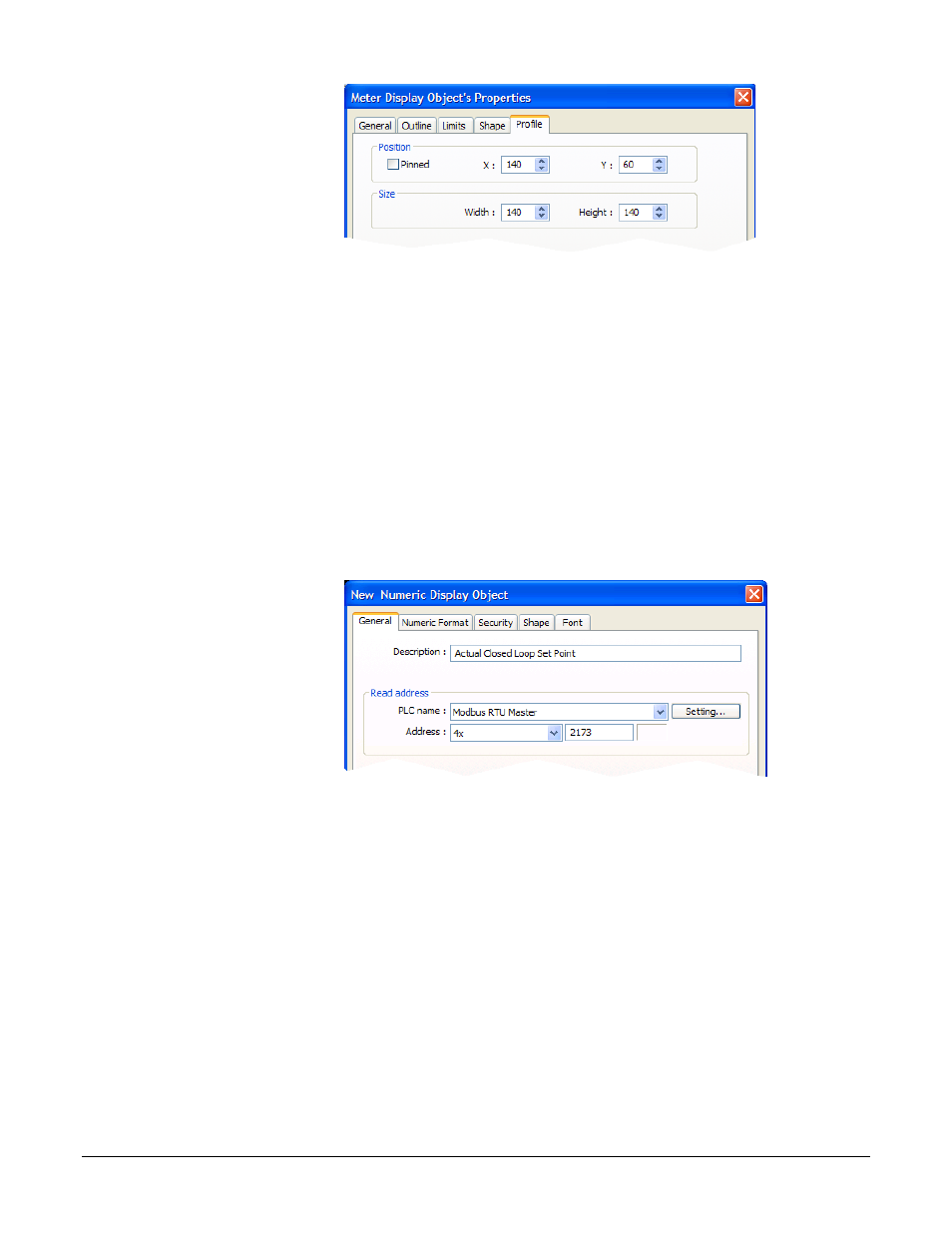

Add a numeric display – Watlow Silver Series Addendum User Manual
Page 17

Silver Series OIT
17
Watlow Addendum
27) Double-click the meter
to open the Meter
Display Object’s
Properties dialog.
28) Click the Profile tab.
29) Set X to 140.
(012)
30) Set Y to 60.
31) Set Width to 140.
32) Set Height to 140.
33) Click OK.
34) From the File menu
choose Save.
Add a Numeric Display
This example assumes you have created a window in a project that is configured to communicate with a
Watlow Controller and that window is open in EasyBuilder5000.
1) On the Objects menu,
click Numeric/ASCII
then choose Numeric
Display.
2) Click the General tab.
3) In Description type
Actual Closed Loop Set
Point.
4) For PLC name choose
Modbus RTU Master
or Modbus TCP/IP
Master.
(013)
