LT-4201TM/4301TM Hardware Manual
93

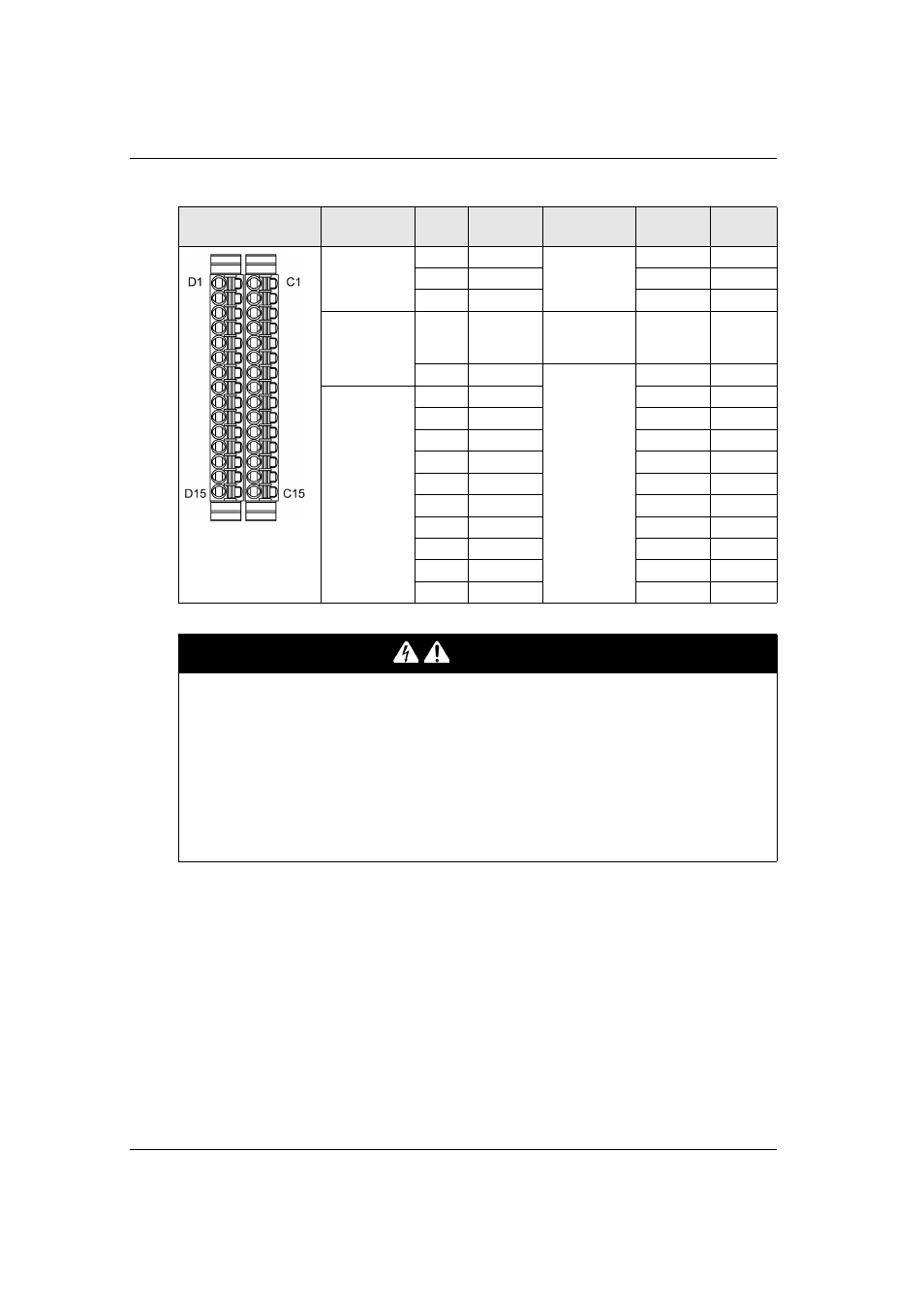

The table shows the group and signal names of the terminal blocks:
Pin Arrangement
Group
Pin
Signal
Name
Group
Pin
Signal
Name
Standard
Output
C1
Q7
Standard
Output
D1
Q6
C2
Q9
D2
Q8
C3
Q11
D3
Q10
Fast
Input/Standard
Input
C4
I0
Fast
Input/Standard
Input
D4
IC0
C5
I1
Standard Input D5
I2
Standard Input C6
I3
D6
IC1
C7
I5
D7
I4
C8
I7
D8
I6
C9
I9
D9
I8
C10
IC2
D10
IC2
C11
I11
D11
I10
C12
I13
D12
I12
C13
I15
D13
I14
C14
I17
D14
I16
C15
I19
D15
I18
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Disconnect all power from all equipment including connected devices prior to removing any
covers or doors, or installing or removing any accessories, hardware, cables, or wires except
under the specific conditions specified in the appropriate hardware guide for this equipment.
Always use a properly rated voltage sensing device to confirm the power is off where and when
indicated.
Replace and secure all covers, accessories, hardware, cables, and wires and confirm that a
proper ground connection exists before applying power to the unit.
Use only the specified voltage when operating this equipment and any associated products.
Failure to follow these instructions will result in death or serious injury.
