Proface LT4300M - 5.7 Modular HMI + Control" User Manual
Page 79
LT-4201TM/4301TM Hardware Manual
79
NOTE:
Do not solder the wire directly to the power receptacle pin.
The power supply cord must meet the specification shown above. Twist the power cords
together, up to the power plug, for EMC compliance.
Use field wiring terminal marking for wire type (75
° C (167 ° F) copper conductors only).
5

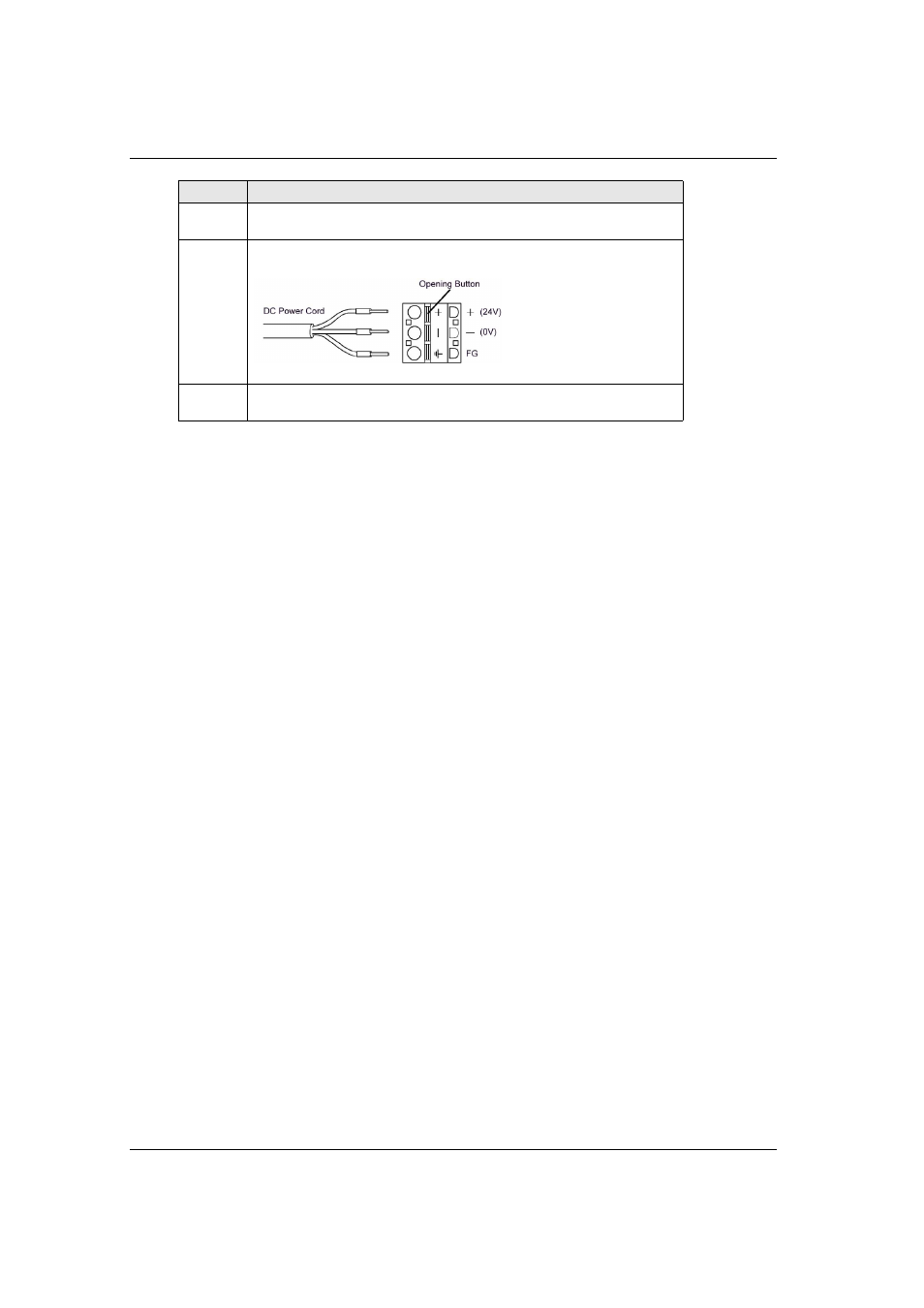

Push the Opening button with a small and flat screwdriver to open the desired
pin hole.
6
Insert each pin terminal into its corresponding hole. Release the Opening
button to clamp the pin in place.
7
After inserting all three pins, insert the power plug into the power connector on
the LT.
Step
Action
