GP3000H Series Hardware Manual
1-2
1.1
System Design

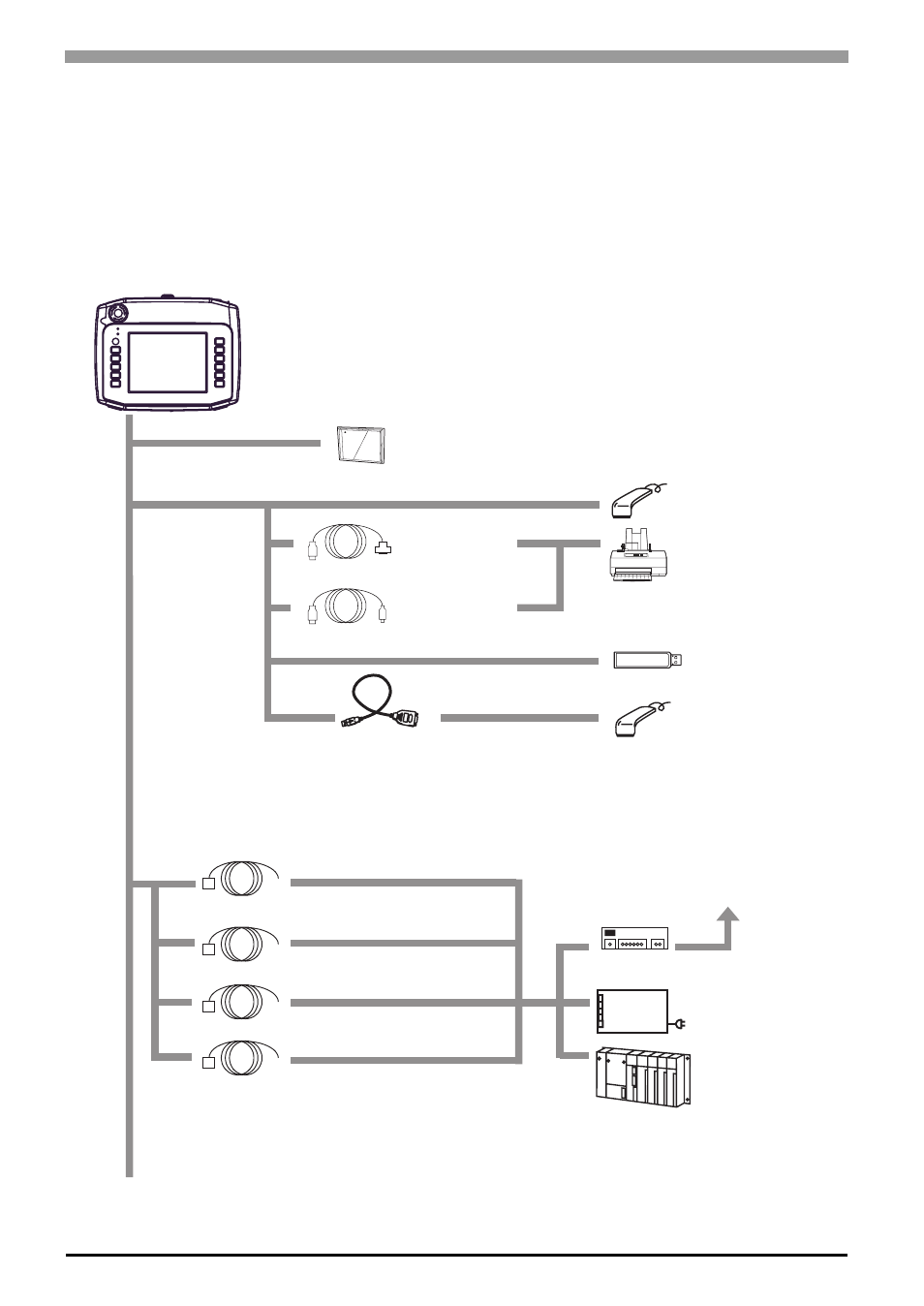

The following diagram illustrates the standard range of items that can be connected to GP-3000H Series unit.
For host controller (PLC, etc.) connection information, refer to the "GP-Pro EX Device/PLC Connection
Manual".
GP RUN Mode Peripherals
GP Unit
USB-to-IEEE1284
Conversion Cable
(Commercial type)
USB Cable
FP-US00 or
commercial type
CA3-CFCALL/128MB-01
CA3-CFCALL/256MB-01
CA3-CFCALL/512MB-01
CA6-CFCALL/1GB-01
CA8-CFCALL/2GB-01
Bar-Code Reader
*1
(Commercial type)
Printer
*1
(Commercial type)
Bar-Code Reader
*1
(Commercial type)
(2)
(1)
CF Card
24 VDC
Power Supply Unit
(Commercial type)
Host Controller
PLC etc.
GP3000H Soft-type 3 m
Direct-connect Cable
GP3000H-CBLS-3M
GP3000H Soft-type 5 m
Direct-connect Cable
GP3000H-CBLS-5M
GP3000H Soft-type 10 m
Direct-connect Cable
GP3000H-CBLS-10M
Continued
GP3000H Hard-type 10 m
Direct-connect Cable
GP3000H-CBLH-10M
(3)
USB-Serial (RS-232C)
Conversion Cable
CA6-USB232-01
To an Ethernet Network
Hub
(commercial type)
USB Memory Strage
*1
(Commercial type)
