CANbus Trigger, Decode, and Measure
8 CANbus-TD-TDM-OM-E RevB
trigger condition to be set from within the oscilloscope using an easy-to-understand
interface.

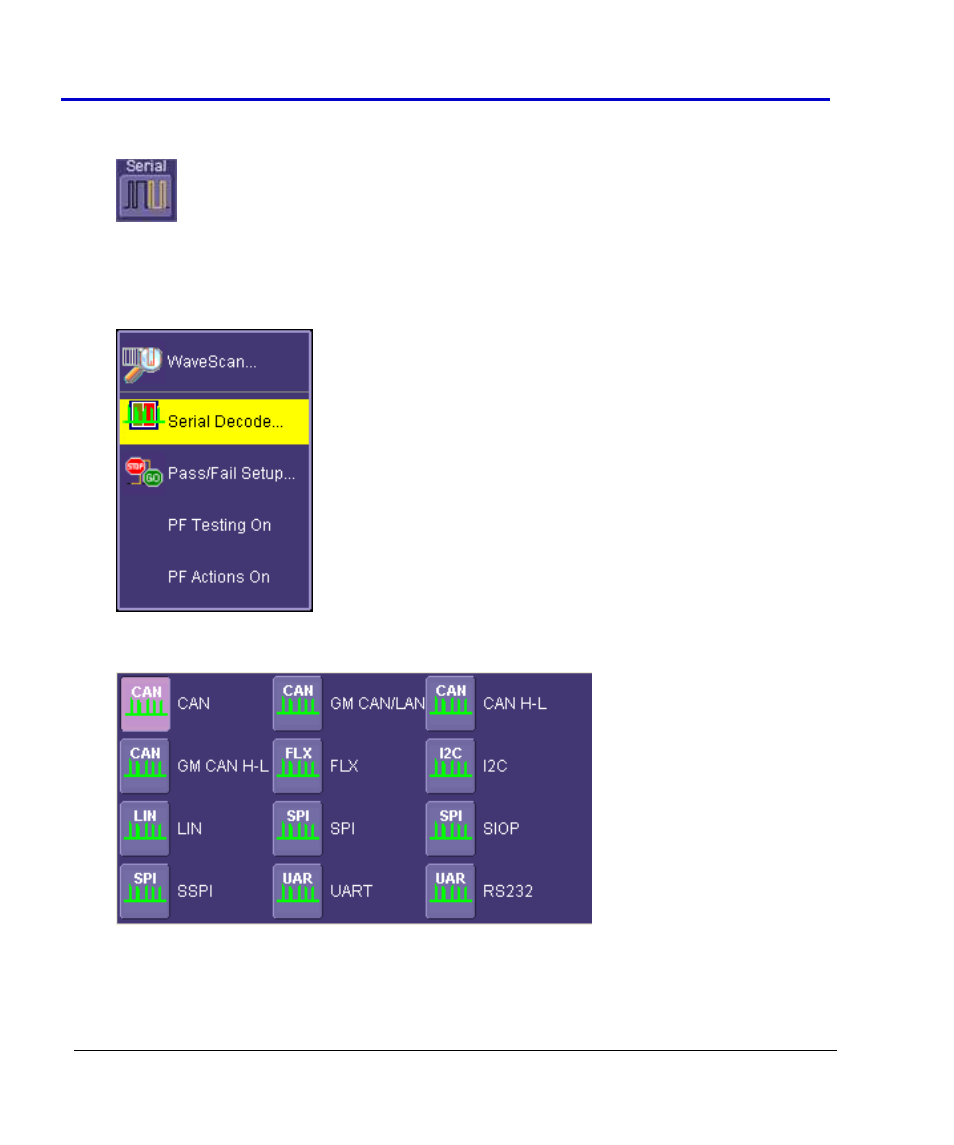

2. Serial Decode - If this is the first serial decode option you have installed on your scope, an
additional set of Serial Decode and Decode Setup dialog boxes are provided for setup of
protocol format (as necessary) and decoding. These can be accessed from the Analysis
menu.
3. Decode Protocol Selections - CAN is one of several signal types that can be decoded by
the oscilloscope. Other standards include I2C, SPI, UART, RS-232, LIN, and FlexRay.
4. Measure/Graph Setup - CAN measurement and graphing functions are accessed through
the Serial Decode setup by selecting the Measure/Graph Setup tab.
