CANbus Trigger, Decode, and Measure
10
CANbus-TD-TDM-OM-E RevB
Creating a CANbus Trigger Condition

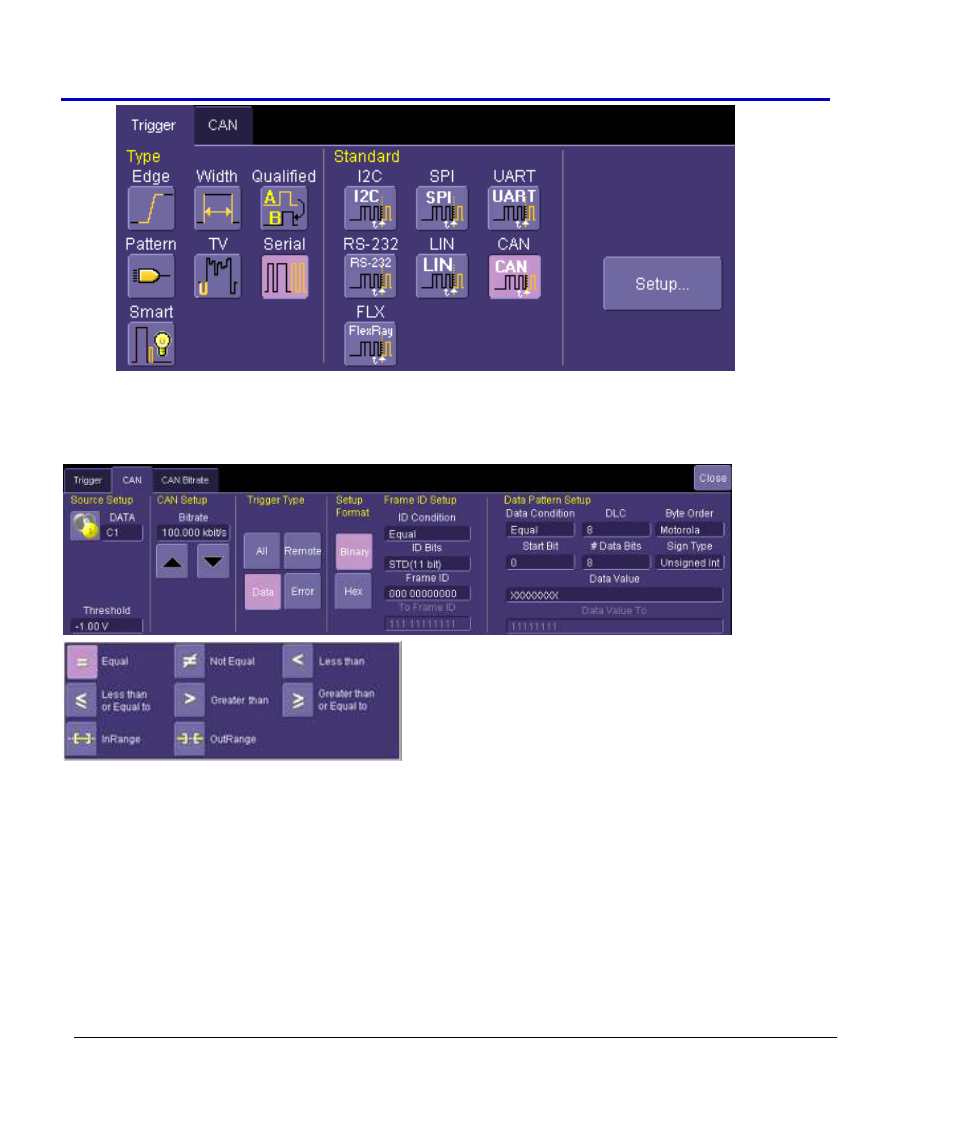

The CANbus Trigger dialog, with detail on some of the setup conditions, is shown in the
following topics.
CANbus Trigger Setup Detail
The following topics show the dialog selections for a CANbus Trigger.
