CANbus Trigger, Decode, and Measure

42

CANbus-TD-TDM-OM-E RevB

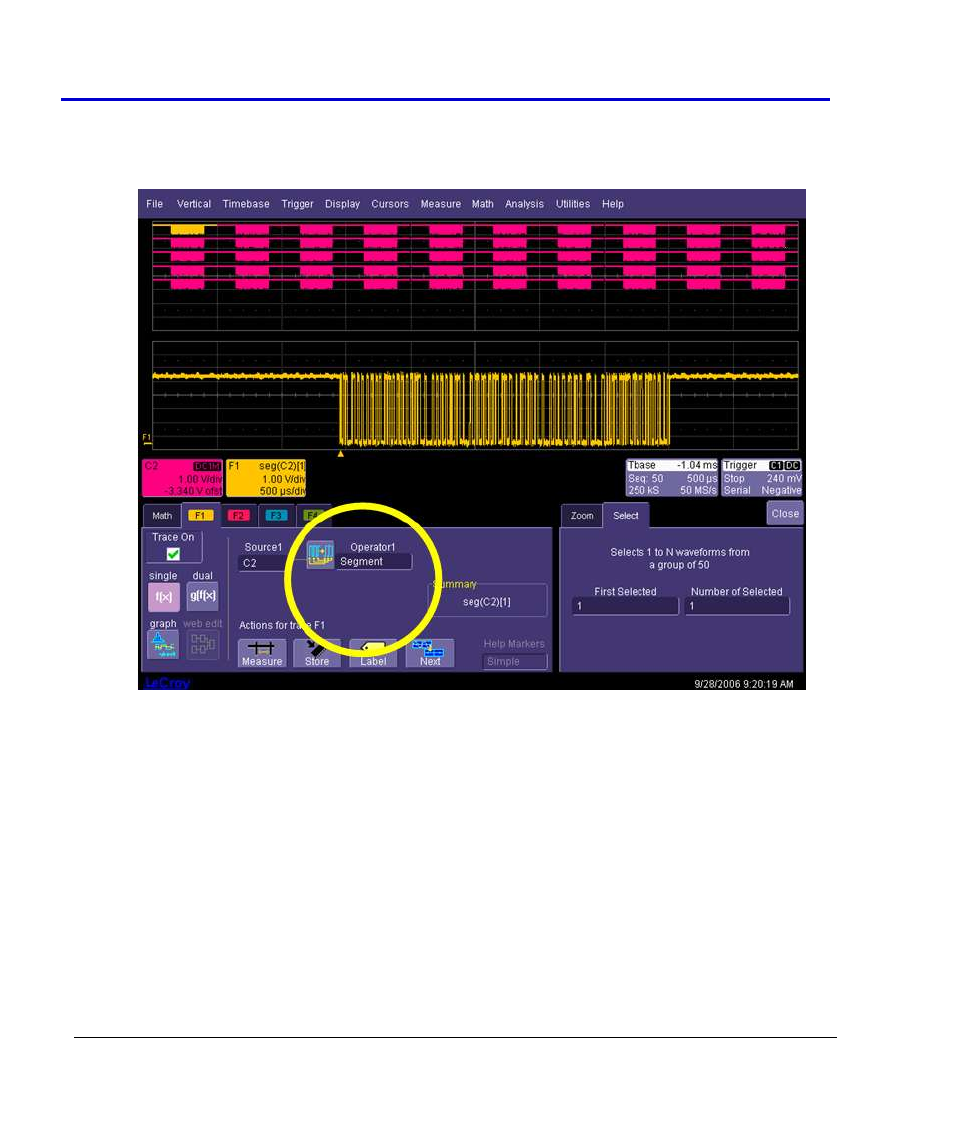

Use the channel the serial data was acquired on as a source (in this case Channel 2).
Check the TRACE ON checkbox to display the trace. Select a segment to view by touching
the Select tab and use either the pop-up keypad or the front panel adjust knob.

7. Set up the Decode to use the Math trace as the source for Data in order to view decoded

data on the individual segment (in this case F4 is the source).
