CANbus Trigger, Decode, and Measure

CANbus-TD-TDM-OM-E RevB

Note: Be sure to avoid touching the bottom or top of the Trigger Couplers or the Trigger Module
main boards. If you are unsure, use normal static grounding techniques.

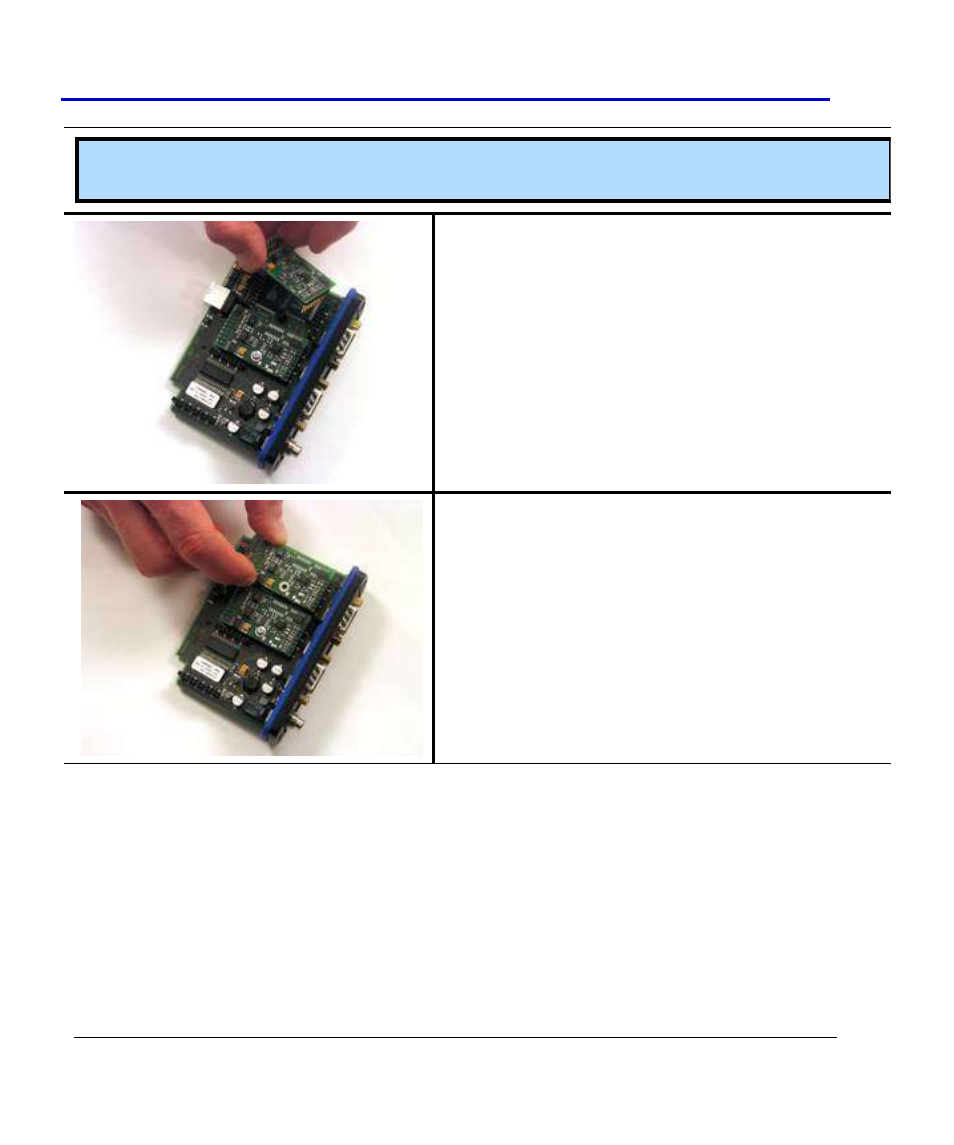

5. The Trigger Coupler is held down with a screw

and locknut. Use a Philips #1 screwdriver to
remove them. If necessary, carefully remove a
Trigger Coupler from the main board, taking
care not to touch the bottom of the Trigger
Coupler. Store the Trigger Coupler in one of the
static sensitive boxes (provided).

6. Install a new Trigger Coupler, making sure that

the two-row connector and one-row connector
are properly aligned and that the pins are fitting
correctly. Refasten screw and locknut.
