89
IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3

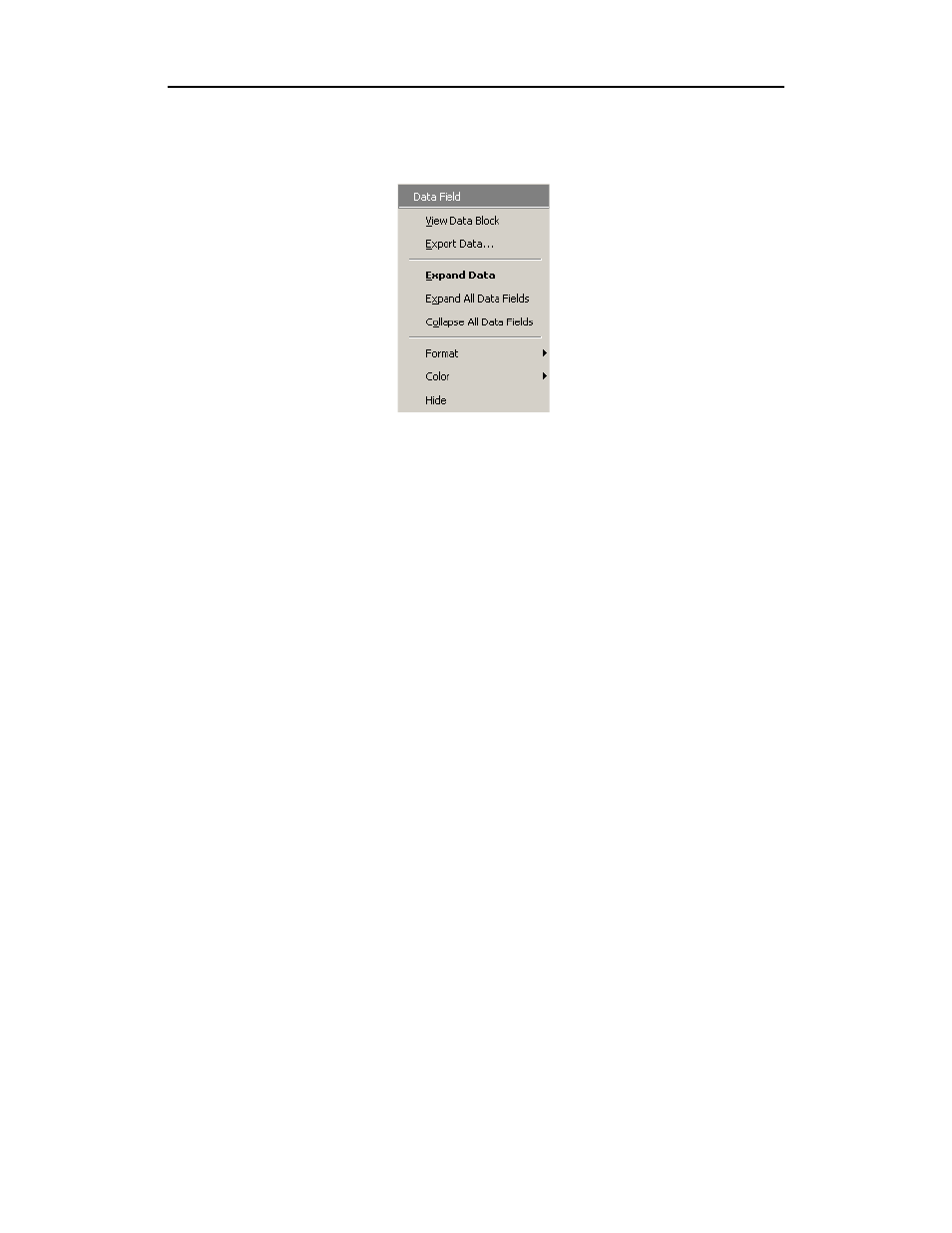

If your Data Trace View is currently collapsed, you see the Expand
Data menu:
Note You can choose to expand or collapse only the Data in the
selected Data packet OR All Data Fields in the Trace View.
Step 2
Select the desired Expand Data or Collapse Data menu item.
The Trace View is repositioned with the selected packet(s) adjusted
in the format you have specified.
Note
For headers, the same mechanism works for groups of cells.
Vertical arrows are used for expanding and collapsing transport
functions and higher level units. Click and hold applies to
collapse and expand actions for elements in all views.
