IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3
Capturing Your First CATC Trace
After a few moments, the recording will end and the results will display.
Trace View Features

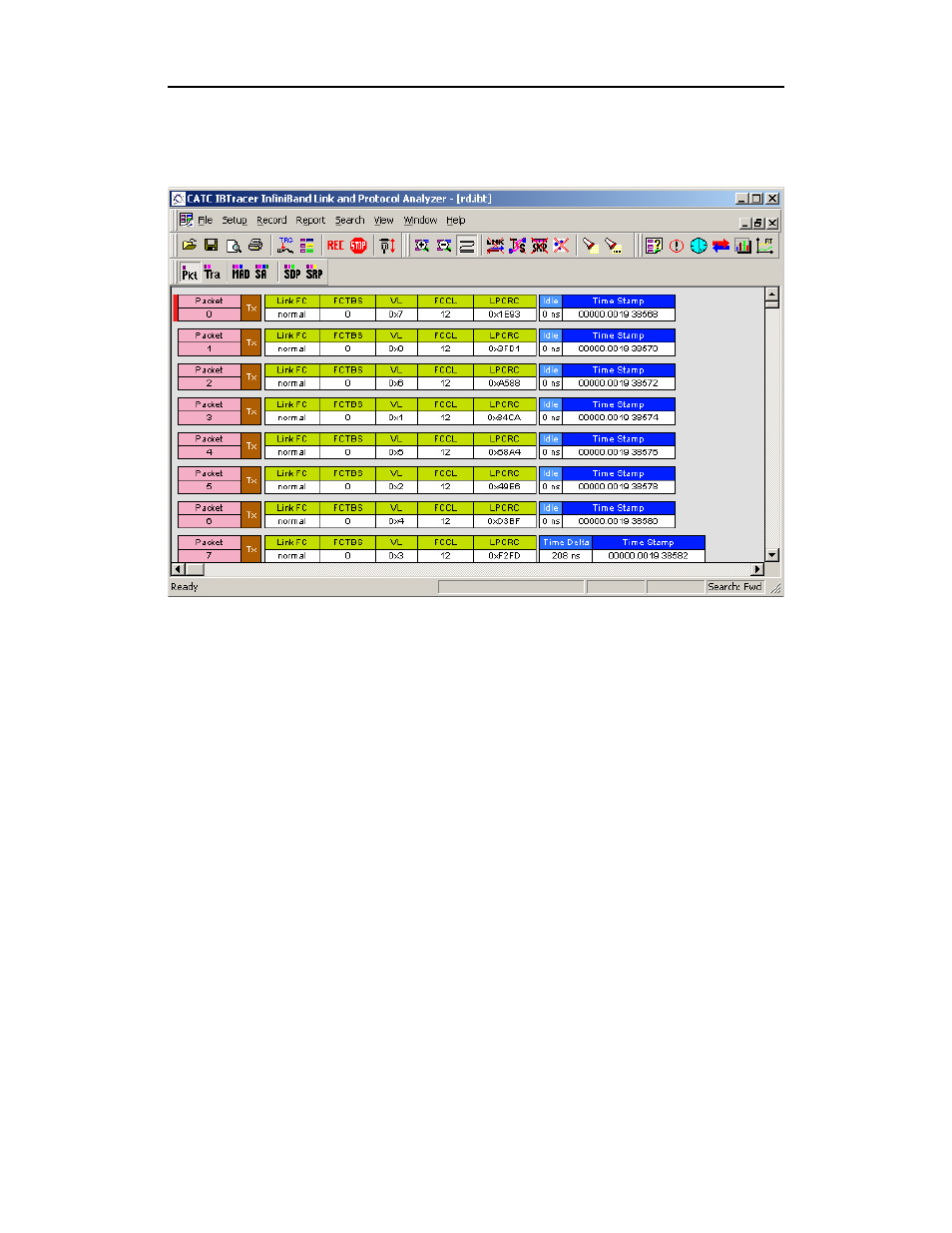

• The IBTracer packet view display uses color and graphics
extensively to fully document the captured traffic.
• Packets are shown on separate rows, with their individual fields
both labeled and color coded.
• Packets are numbered sequentially, as recorded and time-stamped
with a resolution of 1 symbol time or 4 ns.
• Display formats can be named and saved for later use.
• Pop-up Tool Tips annotate packet fields with detailed
information about their contents.
• Data fields can be collapsed to occupy minimal space in the
display (which can in turn be zoomed in and out to optimize
screen utilization).
• The display software can operate independent of the hardware
and thus can function as a stand-alone Trace Viewer that can be
freely distributed.
