38
IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3
• If the recording did not result from a Trigger Event, the display
begins with the first packet in the traffic file.
Analyzer Status
The third segment in the status bar displays analyzer status. During
uploading, this segment displays the percent of the upload process
completed.
Note
If packets are filtered from the recording or data are truncated,
the recording activity is reduced.
Search Status
The rightmost segment displays the current search direction: Fwd (forward)
or Bwd (backward).

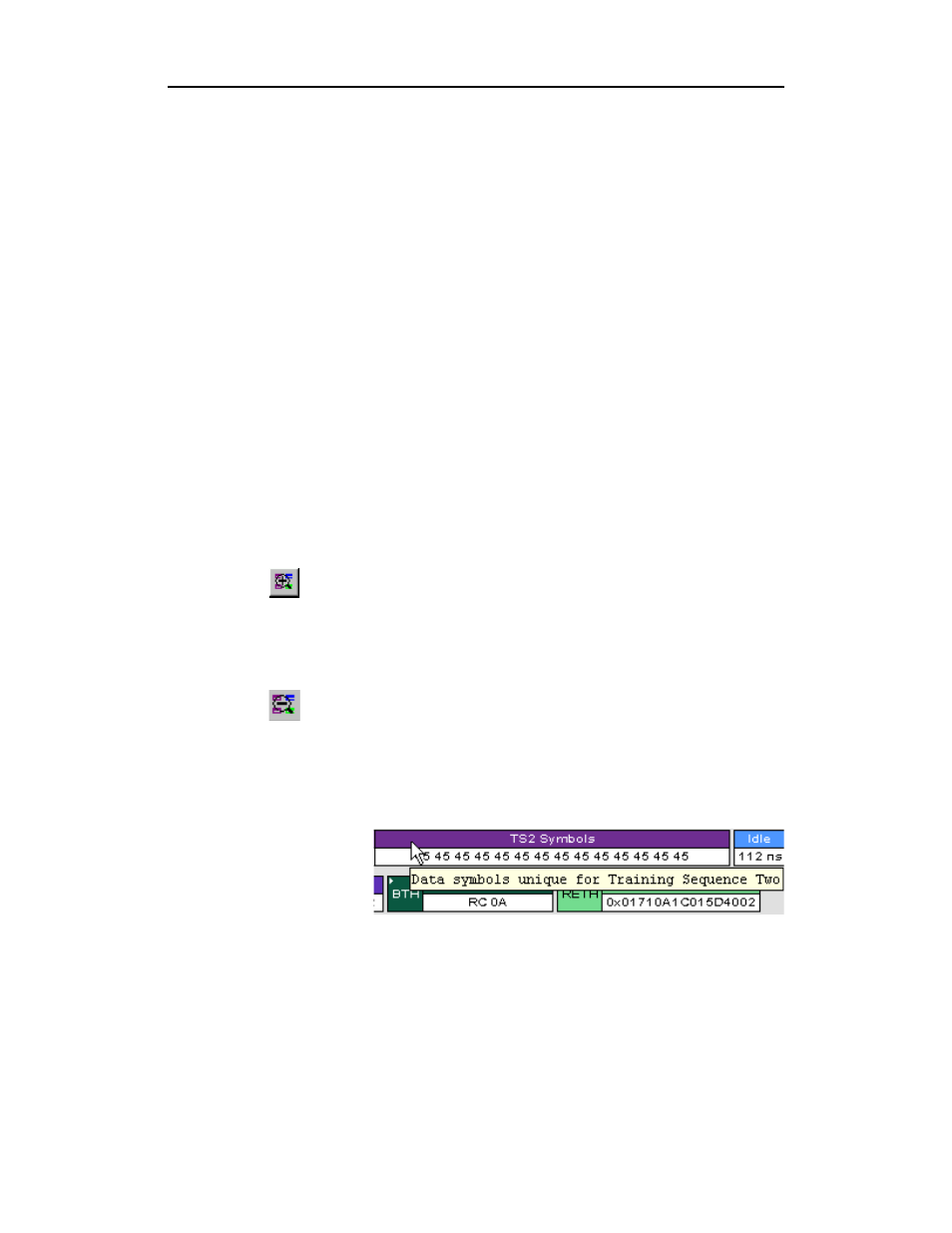

Zoom In
Zoom In increases the size of the displayed elements, allowing fewer (but
larger) packet fields per screen.
Click on the Tool Bar.
Zoom Out
Zoom Out decreases the size of the displayed elements, allowing more (but
smaller) packet fields per screen.
Click on the Tool Bar.
5.4 Tool Tips
Throughout the application, tool tips provide useful information.
To display a tool
tip, position the
mouse pointer
over an item. The
tool tip displays in
a short moment if present. Tool tips can also be found over the Tool Bar and
in areas of the packet view screen.
