18
IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3

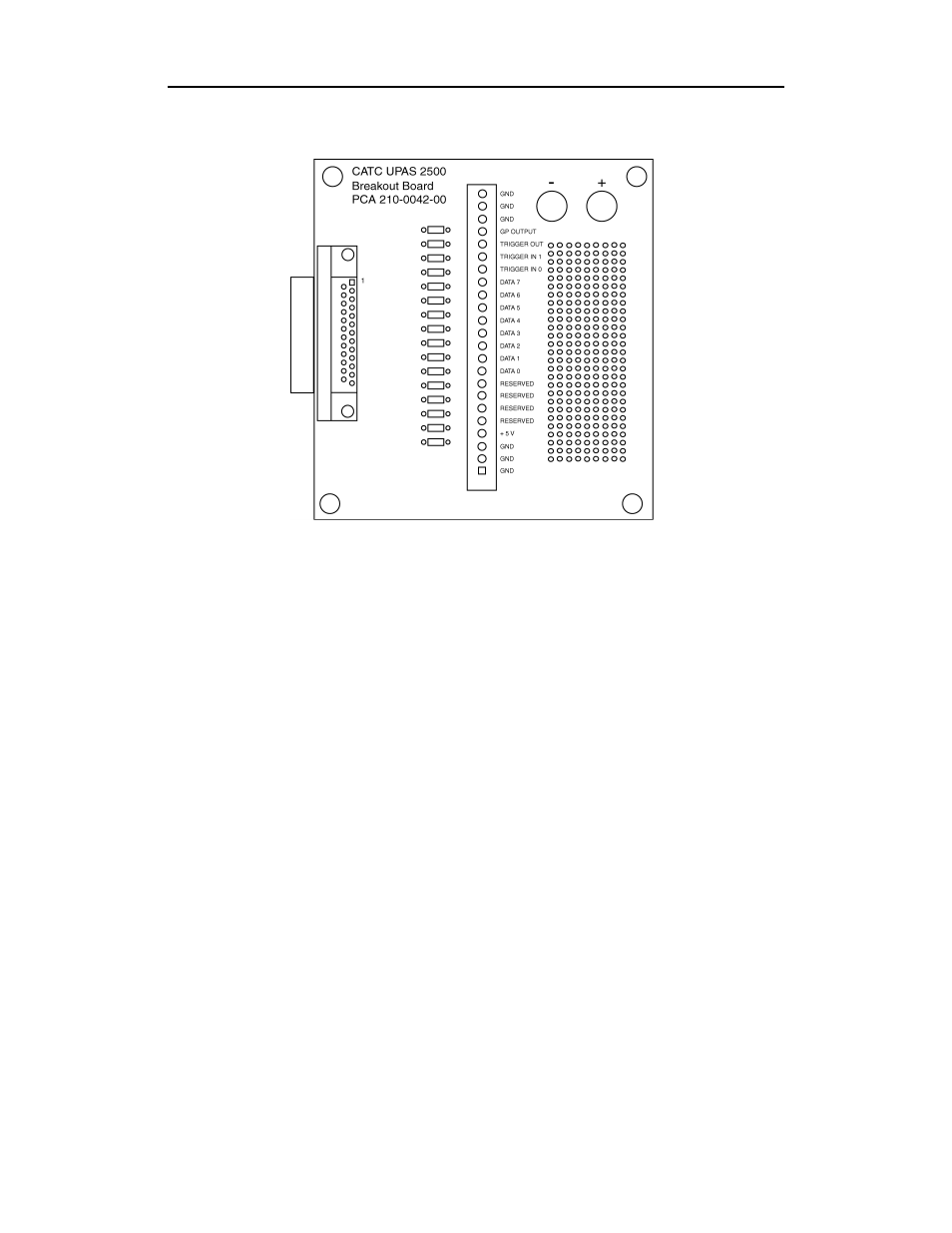

Figure 4: External Interface Breakout Board
Prototype Rework Area
The Breakout Board contains a prototype rework area for making custom
circuits for rapid development. The area consists of plated-through holes, 20
columns wide by 27 rows long. The top row of holes is connected to GND
and the bottom row is connected to +5V. The remaining holes are not
connected. Use the rework area to insert custom components and wire-wrap
their respective signal, power, and ground pins.
3.8 IBTracer Program Installation
The CATC IBTracer software is provided on CD-ROM and requires a
Windows 98SE, Windows 2000, Windows ME, or Windows XP operating
system.
Note
The IBTracer program can be installed on any Windows 98SE
or later operating system as a "Trace Viewer." That is, it may be
used to view, analyze, and print data that was collected and
saved on another system even if it does not have an Analyzer
attached.
Loading the IBTracer USB Drivers
Step 1 Insert the IBTracer program CD-ROM into your PC.
