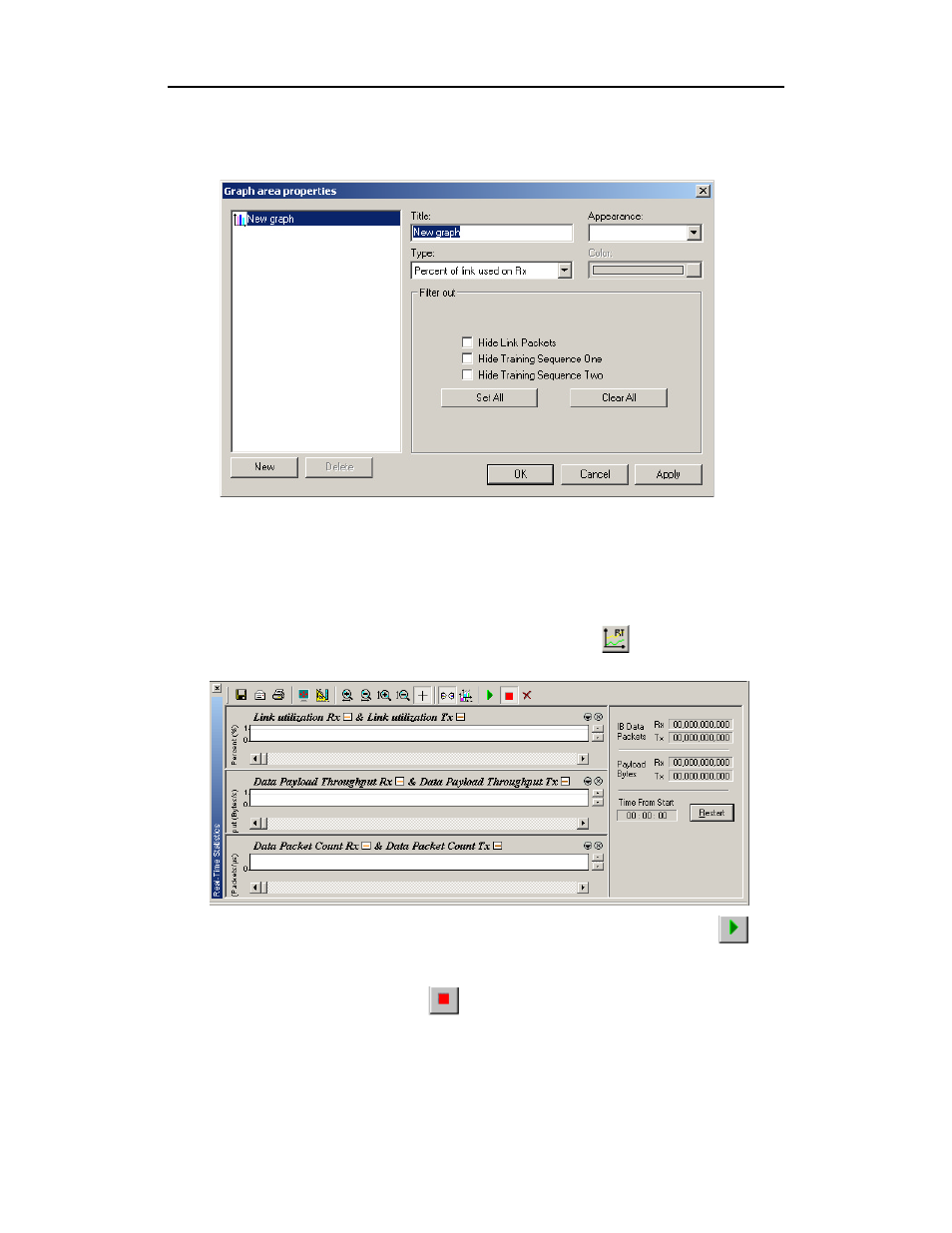

The following dialog box will open. It will display options for setting
the title, data, color, and line type for the graph.
10.9 Real Time Statistics
Real Time Statistics displays a summary of the traffic currently being
recorded by the analyzer.
To display the Real-Time Statistics window, click
in the Tool Bar.
The Real Time Statistics window opens:
To see a graph of traffic, start InfiniBand link activity, then press
to
start the Real-Time statistics monitor. As traffic flows on the link, data will
stream in real-time to this window in a format of your choice.
To stop the monitor, press
.
