IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3
Event Sequences

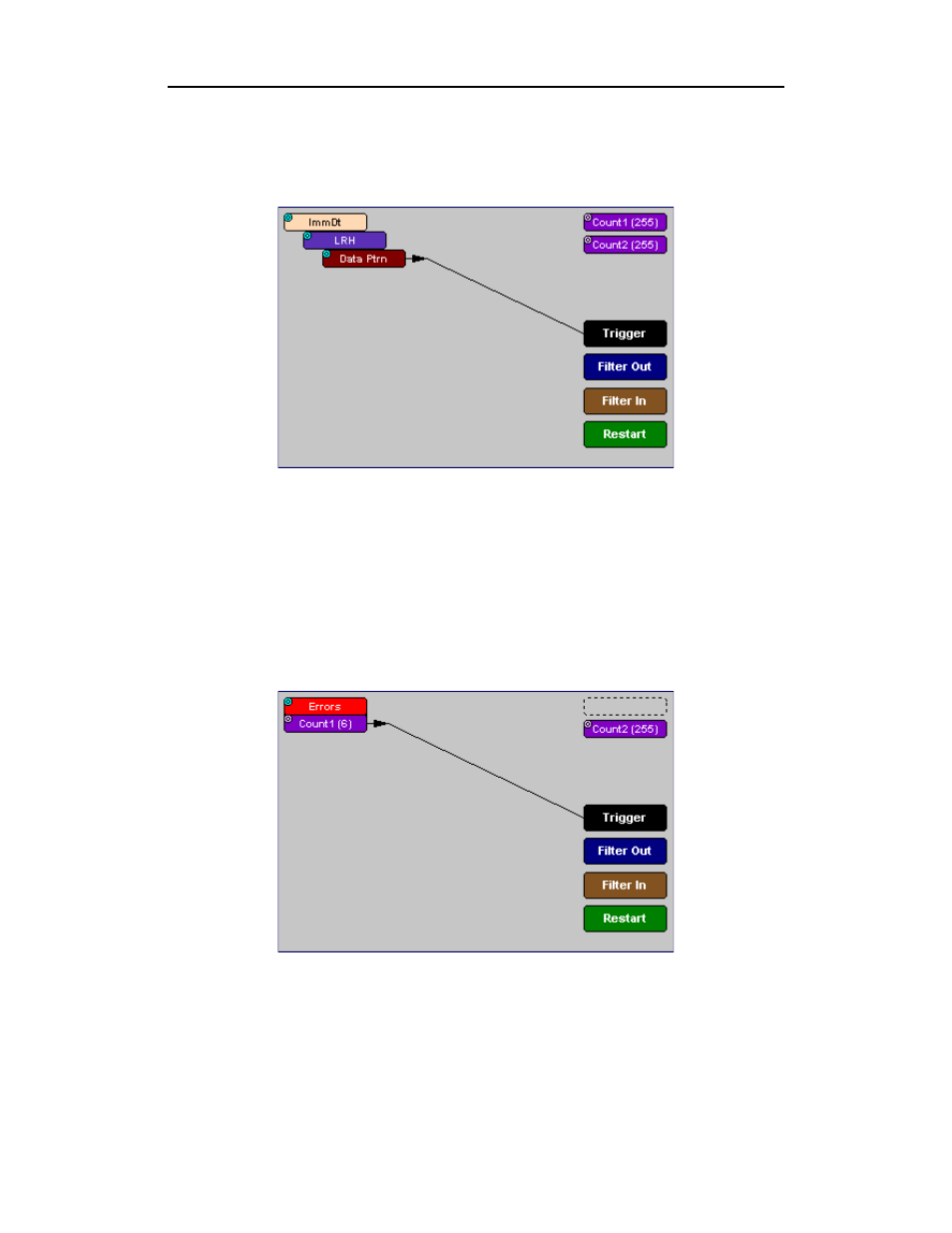

An event sequence is two or more events (up to six) that are strung in a series
to a trigger button.
Event Counts
An event count is an Event button connected to a Counter button. An event
count is a search for multiple instances of an event - such as six Errors. To
create an Event count, you click on an Event button and then click on one of
the counters on the right side of the window. As soon as you click on the
counter, the Counter button repositions itself directly below the associated
Event button. To set the counter to a particular value, click the blue dot in
the corner of the button and enter a value (for details see “Counting Events”
on page 64.)
