85
IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3
8. Reading a CATC Trace

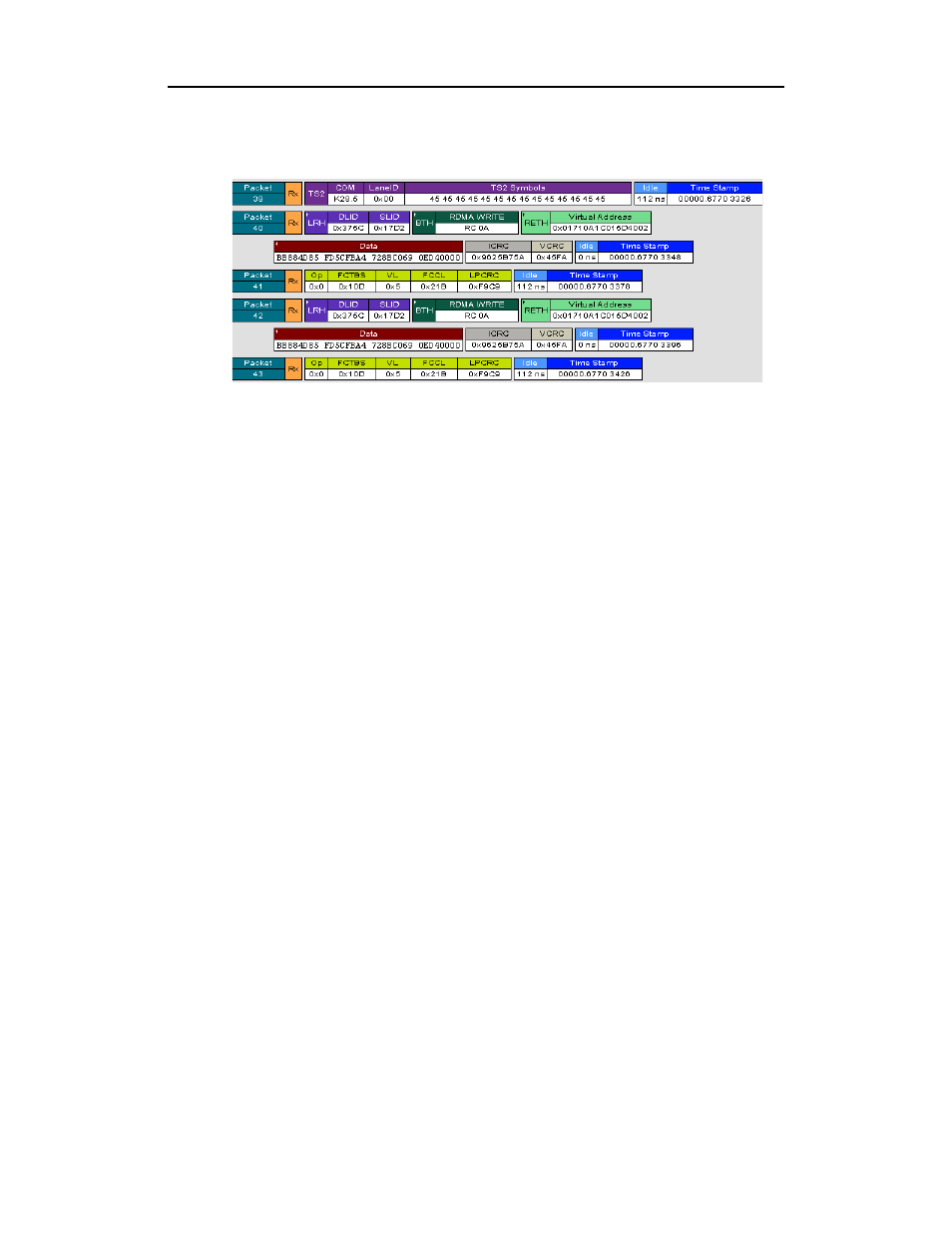

8.1 Trace View Features
• The IBTracer packet view display uses color and graphics
extensively to fully document the captured traffic.
• Packets are shown on separate rows, with their individual fields
both labeled and color coded.
• Packets are numbered (sequentially, as recorded), time-stamped,
and highlighted to show the device status (master or slave).
• Display formats can be named and saved for later use.
• Pop-up Tool Tips annotate packet fields with detailed
information about their contents.
• Several fields such as Data fields can be collapsed to occupy
minimal space in the display.
• The display software can operate independent of the hardware
and so can function as a stand-alone Trace Viewer that may be
freely distributed.
8.2 Set Marker
You can define a unique Marker for each packet operation on a MAD.
To place a marker on a packet,
Step 1
Left-click on Packet # for the packet you wish to mark.
