IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3
Sequencing with Counters

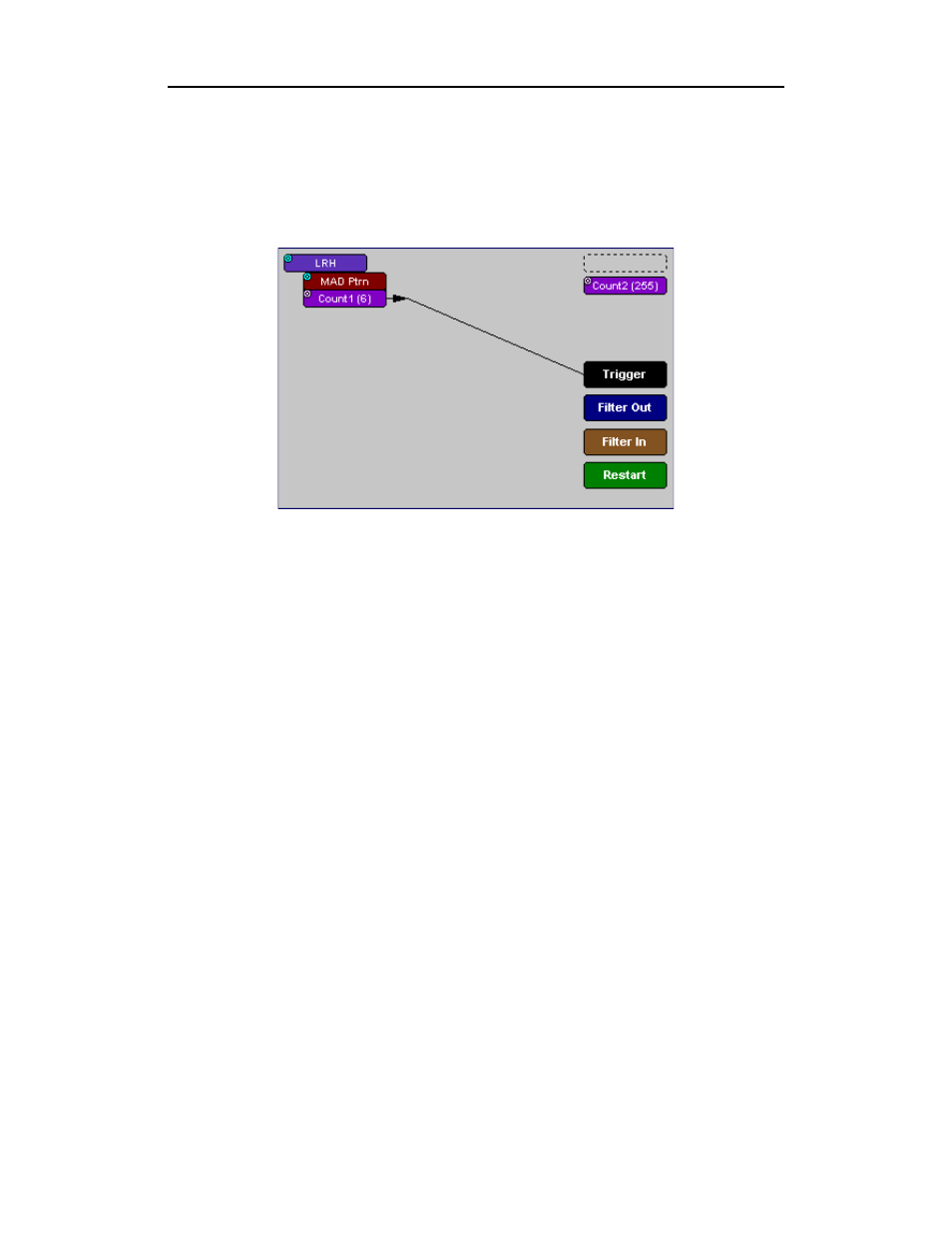

When two or more Events are connected together and then to a counter, a
condition is created such as the one shown below. This example reads:
"When a packet occurs with a Local Routing Header (LRH) followed by six
MADs with data patterns, trigger the end of the recording."
To link two or more Events to a counter,
Step 1
Select two or more events in the Events window (Recording Options
> Events).
Step 2
Click the Actions tab.
Step 3
Click one of the event buttons. An elastic arrow will appear on your
mouse pointer.
Step 4 Click one of the Counters. The Counter button will move directly
under the Event button.
Step 5
Click another Event button. An elastic arrow will appear on your
mouse pointer.
Step 6
Click the Counter button that is below the first Event button.
