Step 4

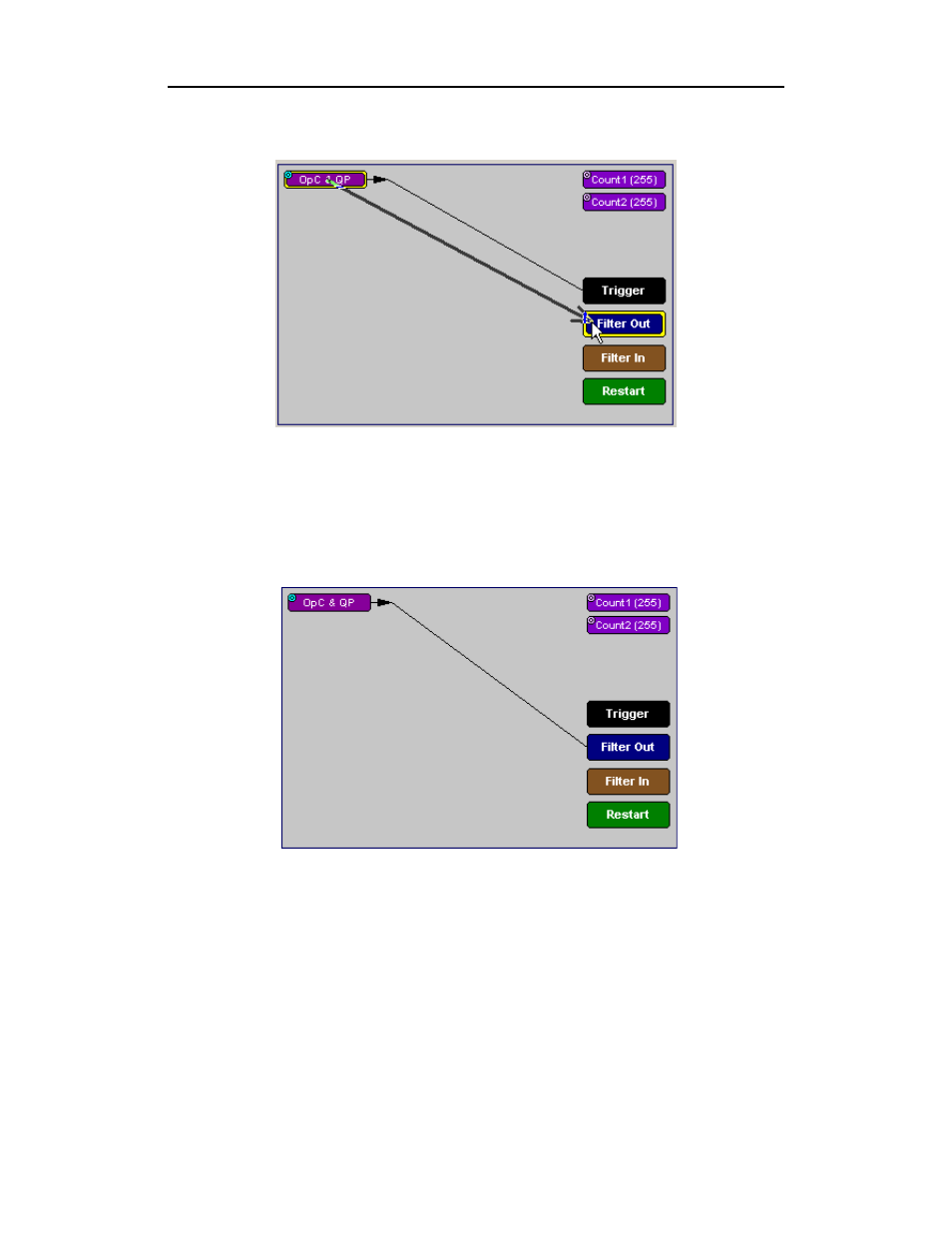

Drag the arrow to the desired Action button.
Step 5
With the pointer over the desired Action button, click the left mouse
button again.
The arrow is replaced with a black line, and the Event button is now
connected to the Action button.
Note: Not all events can be connected to the Filter or Restart
buttons (for example, Errors).
If an Event button is linked to a counter and then to a Trigger, it indicates
that the analyzer should trigger following a count of several instances of the
event. The number of times that the analyzer should count the event is
determined by the number visible in the counter button. You set this number
by clicking the blue dot in the counter and entering a value.
