70
IBTracer 4X Protocol Analyzer User’s Manual CATC SW Version 2.3
Linking Two Events to Two or More Counters
If an Event is linked to Count1 and a second event is linked to Count2, it

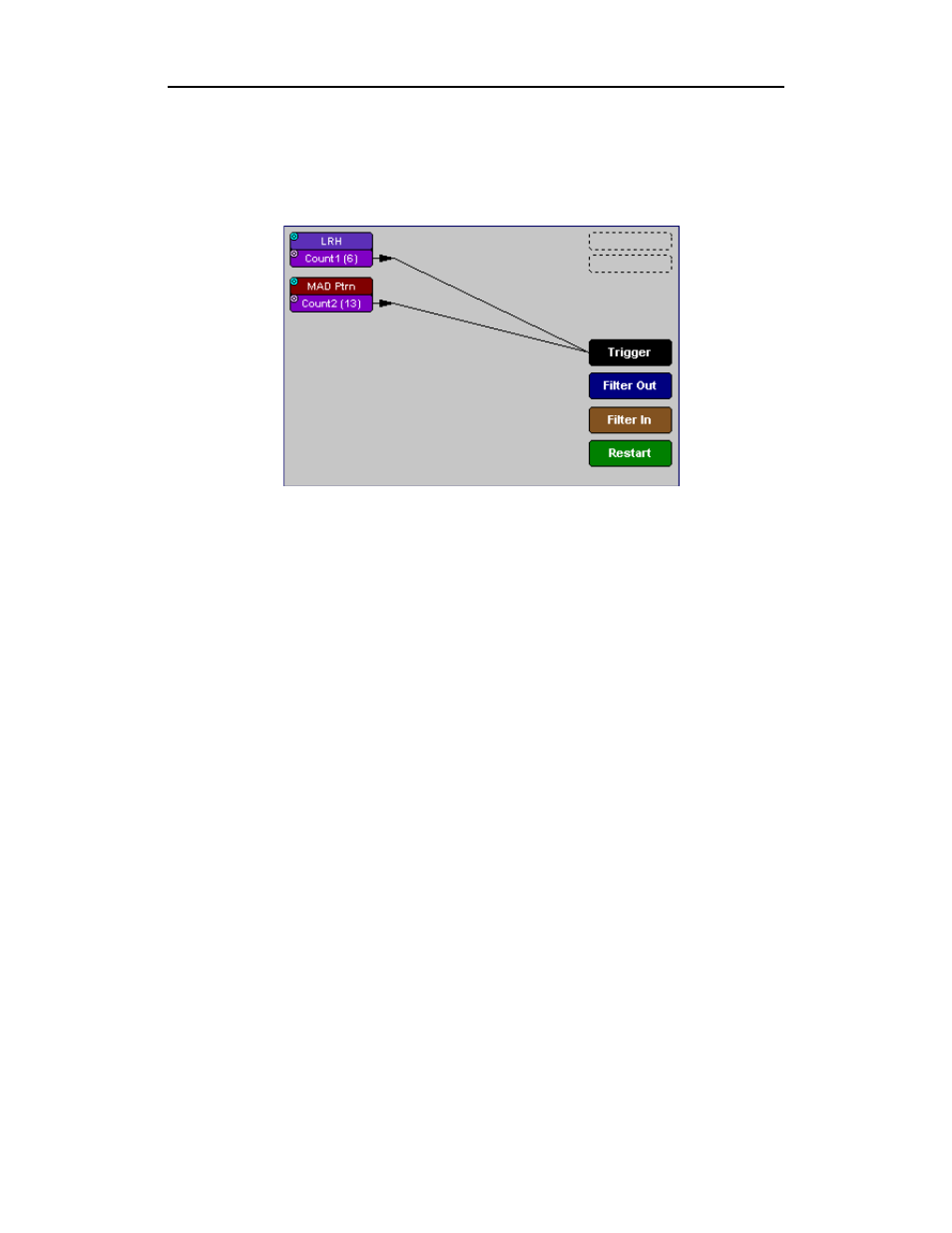

creates an "or" condition. The example below reads "Trigger when Count1
OR Count2 has reached their specified values."
6.12 Filtering Traffic
Filtering lets you exclude unwanted traffic so you can preserve recording
memory and increase the amount of desired traffic in the trace. You have
two options: Filter In, which lets you filter traffic into the recording and
thereby exclude other traffic, and Filter Out, which lets you filter traffic out
of the recording.
Note: Some events, such as errors, cannot be filtered.
How Filtered Out Traffic Is Indicated in the Trace
When traffic is filtered out, a horizontal line appears in the trace where the
item was removed.
How to Use Filters
To filter an event in or out from a recording, follow these steps:
Step 1
From the Events window, select one or more events.
Step 2 Click the Actions tab to open the Actions window.
Step 3
Click an Event button, then click the button marked Filter In or
Filter Out.
A line will connect the Event button to the Filter In or Filter Out
button.
The selected event will now be set for filtering.
