13-2. Editing of tool coordinate system data

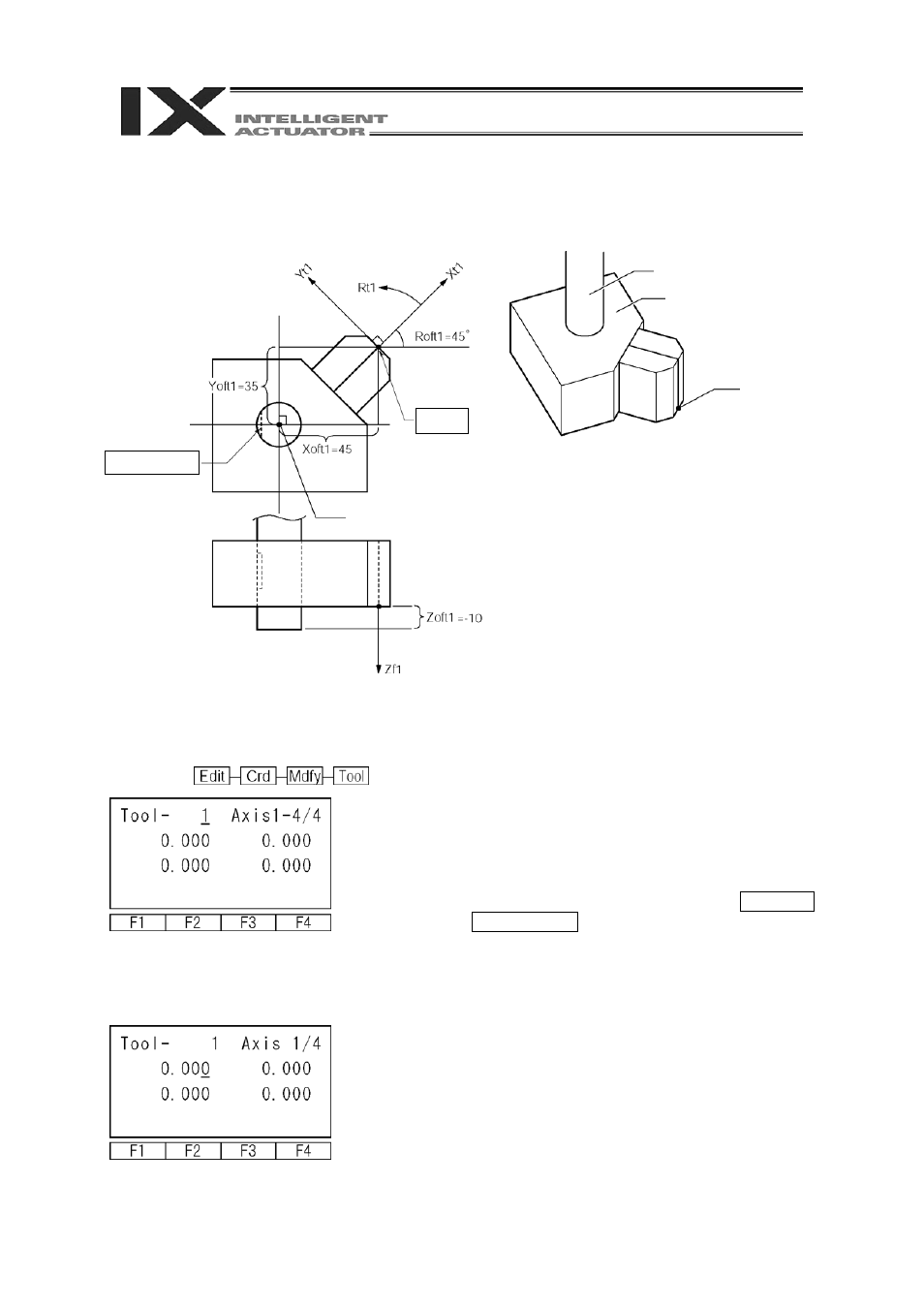

As an input example of the tool coordinate system data, a tool as shown below is set for the tool
coordinate system No. 1.
R-axis
Tool
Tool tip
Tool tip
D-cut surface
Tool mounting surface center
The offset values from the tool coordinate system No. 1 become Xoft1 = 45, Yoft1 = 35, Zoft1 =
-10 and Roft1 = 45.
Mode flow:
This is the tool coordinate system No. selection
screen.
The cursor is located at the tool coordinate system
No.
To select the work coordinate system No., enter the
No. with the ten-key numeric pad or the PAGE UP
and PAGE DOWN keys, and confirm it with the
return key.
This example indicates the setting of the tool
coordinate system No. 1.
Press the return key as it is.
The cursor is located at the X-axis offset value data.
Enter 45 and press the return key.
