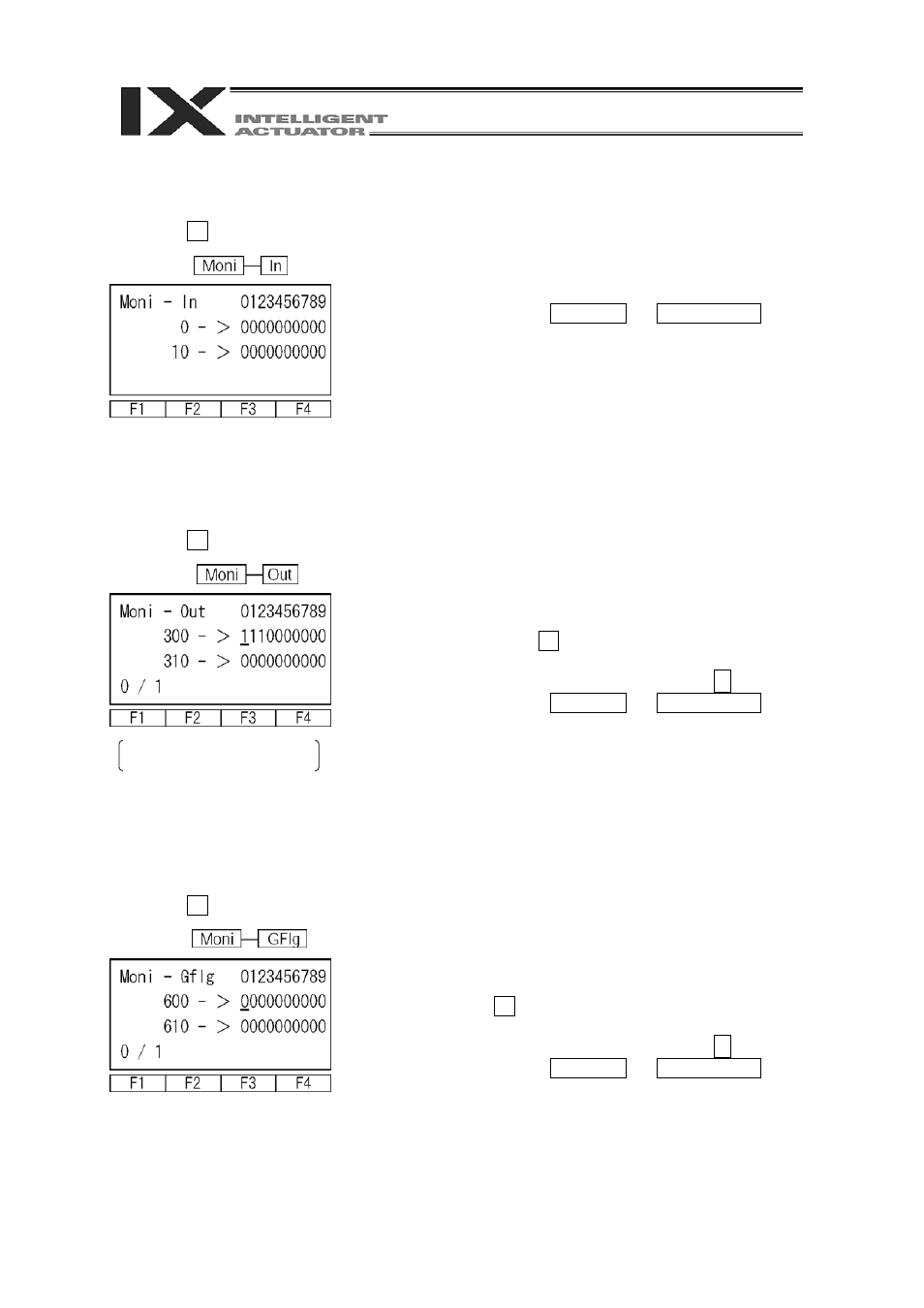

16-2. Input ports
The ON/OFF conditions of input ports are displayed.
Select the F1 (In) key on the Moni screen.
Mode flow:
1: ON, 0: OFF
Every time the PAGE UP or PAGE DOWN key is
pressed, the port Nos. are shifted by 20 and
displayed.
16-3. Output ports
The ON/OFF conditions of output ports are displayed. In addition, the ON/OFF conditions of
output ports can be changed.
Select the F2 (Out) key on the Moni screen.
Mode flow:
The condition of the output port at which the cursor
is located can be changed between ON and OFF
every time the F1 (0/1) key is pressed.
1: ON, 0: OFF
Move the cursor with the return key or ← key.
Every time the PAGE UP or PAGE DOWN key is
pressed, the port Nos. are shifted by 20 and
displayed.
The figure above is the screen on
which the output ports No. 300 to
No. 302 are ON.
16-4. Global flags
The ON/OFF conditions of global flags are displayed. In addition, the ON/OFF conditions of
global flags can be changed.
Select the F3 (GFlg) key on the Moni screen.
Mode flow:
The condition of the global flag at which the cursor is
located can be changed between ON and OFF every
time the F1 (0/1) key is pressed.
1: ON, 0: OFF
Move the cursor with the return key or ← key.
Every time the PAGE UP or PAGE DOWN key is
pressed, the flag Nos. are shifted by 20 and
displayed.
