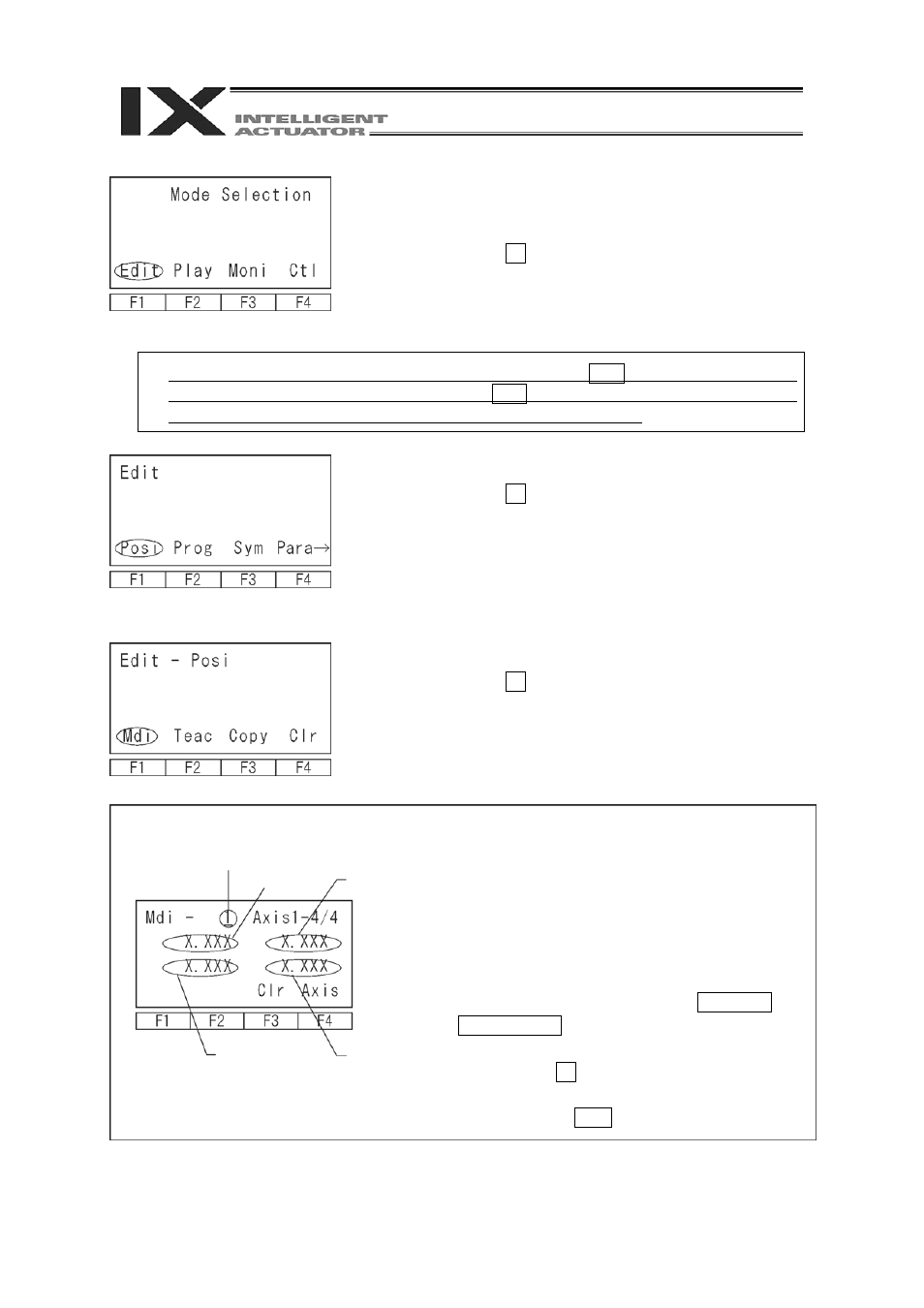

Mode Selection screen
This screen becomes the basic screen for all
operations.
Press the F1 (Edit) key.
* When you make a selection error or input error, press the ESC key to return to the last
screen and continue operation. Pressing the ESC key once or several times during any
operation can return to the basic screen shown above without fail.
Edit mode screen
Press the F1 (Posi) key.
Edit-Posi (position data edit) screen
Press the F1 (Mdi) key.
Position No. input mode
The cursor is located at the position No.
When no data is input, X.XXX is displayed. Press
the return key to move the cursor to the section of
the position data for the X-axis.
* When data is already input, overwrite it (the
original data is lost) or use the PAGE UP and
PAGE DOWN keys to move to the screen with
X.XXX displayed and input data.
Pressing the F3 (Clr) key twice clears the input
data for all axes. This key clears the controller’s
data even if the WRT key is not pressed.
Position No.
X-axis data
Y-axis data
Z-axis data R-axis data
