11. Position Editing
11-1. Mdi (numeric input)
Method of inputting a numeric value with the ten-key numeric pad for position data
For the data input of the coordinate position with the ten-key numeric pad, refer to “9. Simple
Operating Procedures.”
Method of inputting Vel (velocity), Acc (acceleration), and Dcl (deceleration) for each position No.
Example of Mdi (numeric input):
Mode flow to numeric input screen: Position No. + return
Vel is displayed in the function key section on the
data input screen for each axis. Press the F2 (Vel)
key.

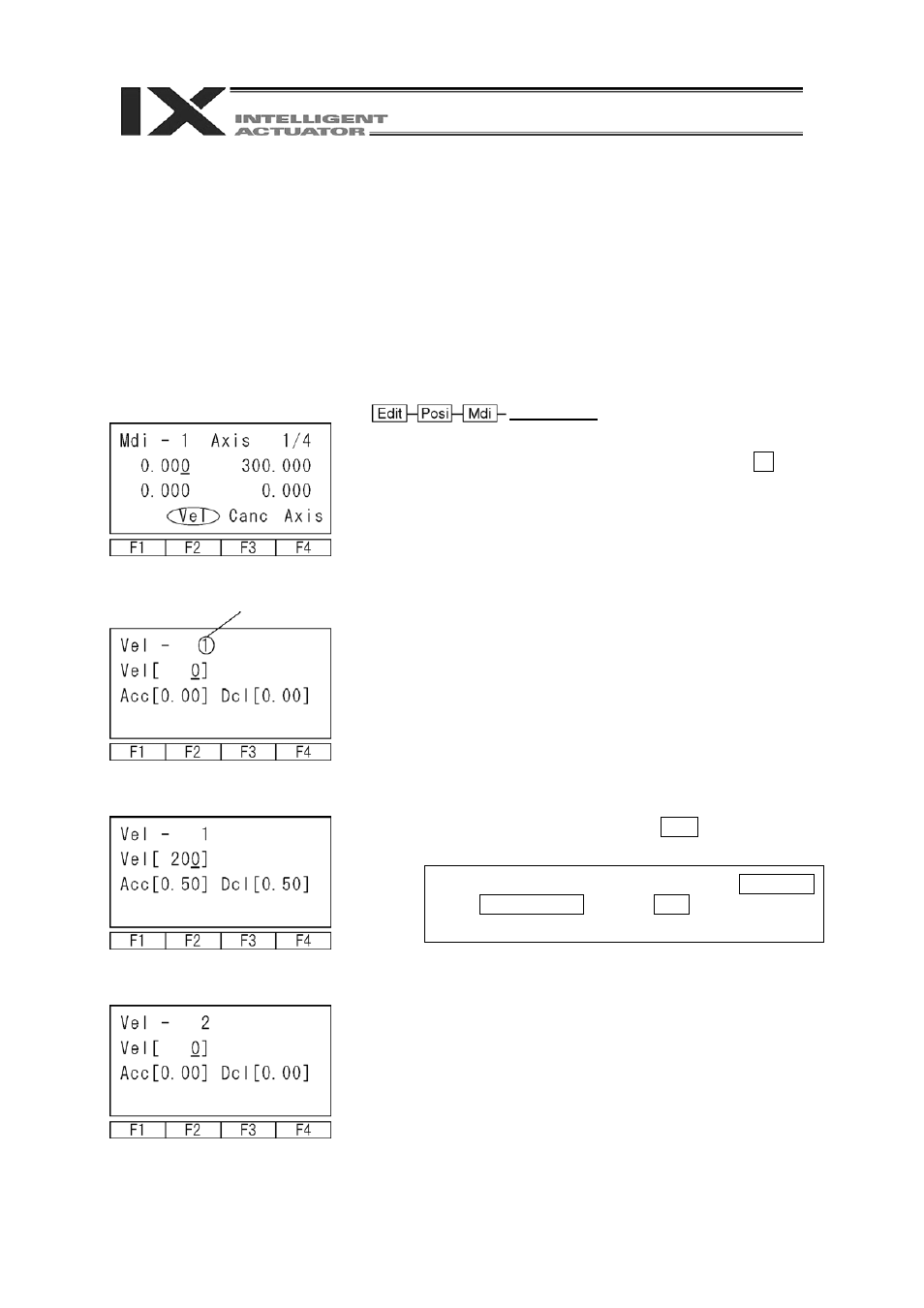

Vel, Acc, and Dcl input screen
Move the cursor with the return key, enter data in a
required section with the ten-key numeric pad, and
press the return key.
After entering data, press the WRT key to transfer
the data to the controller.
* When the screen is changed with the PAGE UP
Position No.
and PAGE DOWN keys or ESC key before data
transfer, the input data becomes invalid.
The position No. is incremented and the next Vel,
Acc, and Dcl input screen is displayed.
