15-2. Input example: Editing of axis-specific parameters
The axis-specific parameter No.58 positioning width is set as axis No. 1 = 0.1 mm and axis No. 2
= 0.1 mm.
Select the F3 (Axis) key on Edit-Para screen.

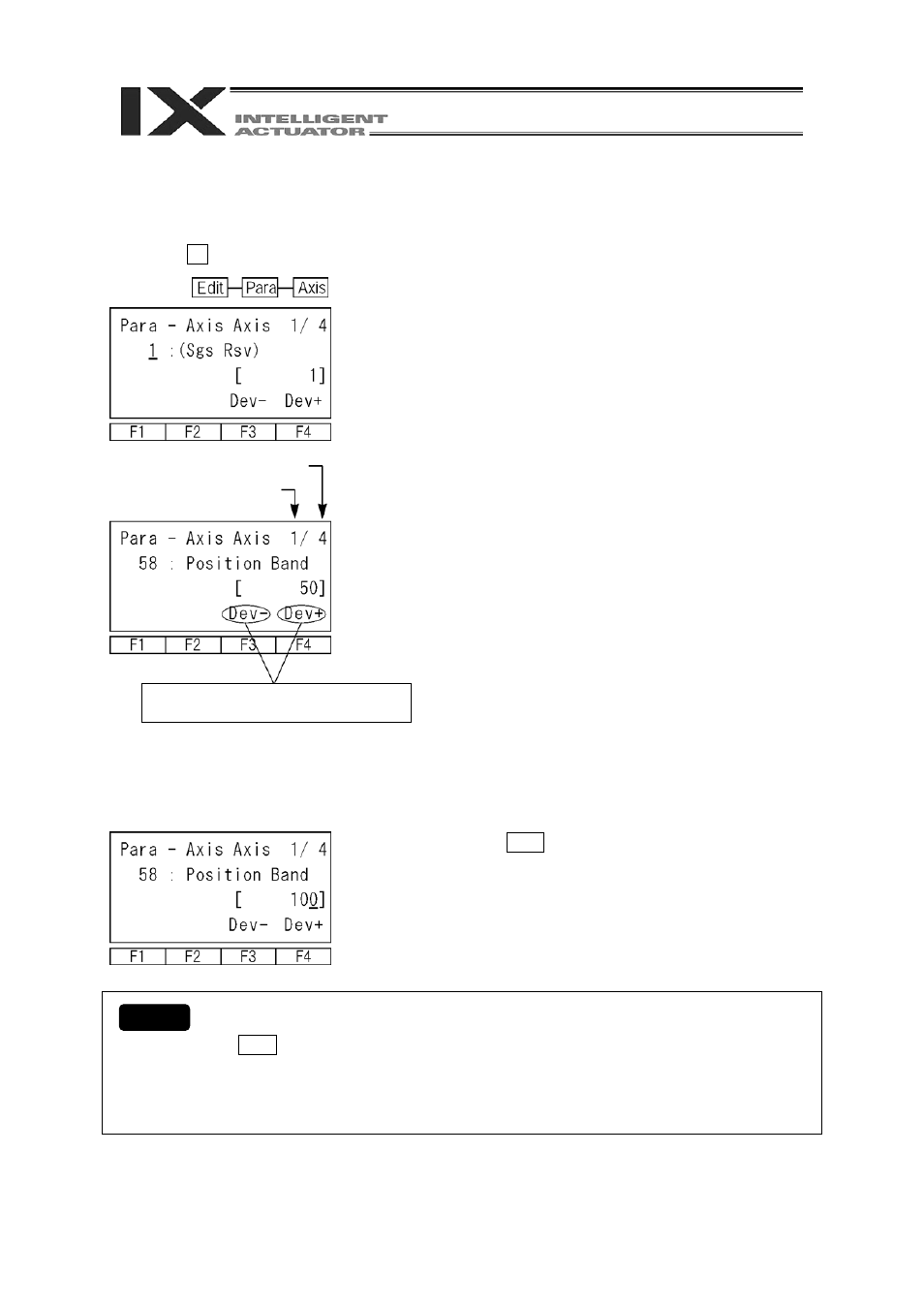

Mode flow:
The cursor is located at the parameter No.
Enter 58 with the ten-key numeric pad and press the
return key.
The screen for editing the axis-specific parameter
No. 7 soft limit + is displayed. The cursor is located
at the parameter data.
Data input for axis No. 1
Set the parameter by axis or I/O board depending on
the parameter item.
(Axis-specific parameters, driver card parameters,
encoder parameters, I/O slot card parameters)
Check that the screen for editing the axis No. 1 is
displayed.
Enter 100 and press the return key.
(Unit: 0.001 mm)
Press the WRT key to transfer the parameter data to
the controller.
One transfer (WRT key) with the Teaching Pendant stores the data only on the current
display screen in memory. Therefore, it is required to input the parameter data and transfer
it by axis (device).
The untransferred data becomes invalid when the screen is changed.
Number of axis in connection
Axis No. in editing
The function keys of F3 (Dev-) and F4
(Dev+) are used to change the axis No.
