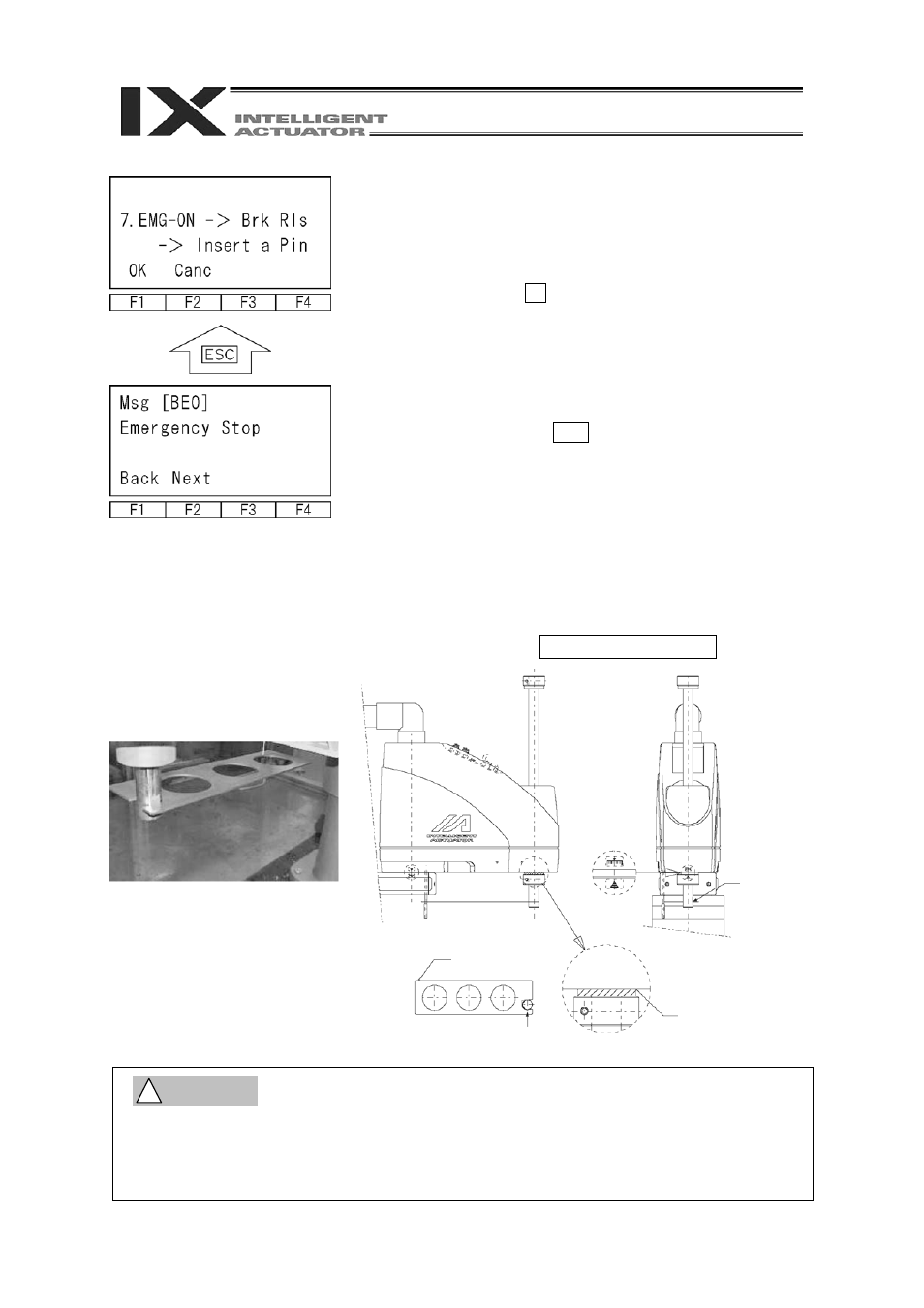

⑦ Emergency stop input and adjusting jig set
Press the EMERGENCY STOP button.
Press the brake release switch to release the
brake.
After fixing the standard posture as shown below,
press the F1 (OK) key.
Inputting emergency stop displays the screen at
the left.
Pressing the ESC key returns the display to the
previous screen.
Place the adjusting jig plate and pin as shown below and fix the standard posture.
▪ After checking that the EMERGENCY STOP switch has been pressed, set the jig.
▪ Set the jig by referring to the positioning mark.
▪ Adjust the level so that the top surface of the stopper approximately agrees with the
under surface of the arm 2.
Standard Posture Drawing
D-cut surface
Rotation axis
positioning
mark seal
Tap it on the pin
Adjust the level so that the top
surface of the stopper agrees with
the under surface of the arm 2.
D-cut surface
▪ Be sure to press the EMERGENCY STOP switch before setting an adjusting jig.
Failure to do so may cause a robot malfunction, which may lead to a serious accident
resulting in injury or death.
WARNING
!
139
