28
Output Part
100-mA output circuit by power MOSFET
Item Specification
Number of output points 10 points
Rated load voltage 24 VDC; 60 VDC (peak) (without flywheel diode)
Maximum load current 100 mA per point
Residual voltage 1.8 V / 100 mA
Isolation method Photocoupler
Overcurrent protection Fuse resistance: 10 , 0.1 W

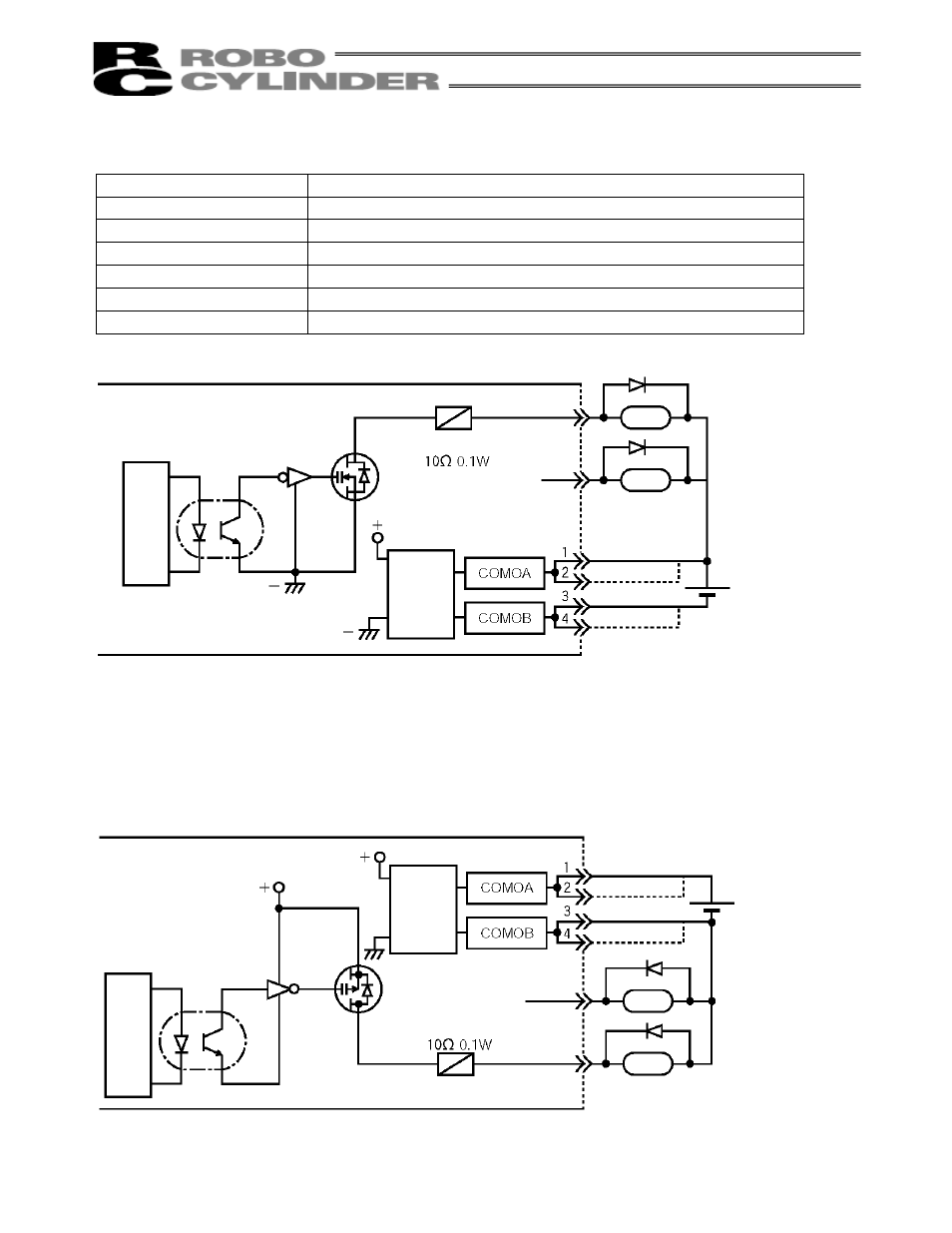

Internal circuit configuration (Standard NPN specification)
 Supply 24 VDC between COMOA and COMOB. COMOA and COMOB have no polarities.
 Pin Nos. 1 & 2, and 3 & 4, are connected internally.
Note 1) The output circuit is an open-drain circuit provided by a power MOSFET and has no flywheel diode.
When connecting a load, such as a relay, also connect a diode, etc., to suppress flyback voltage.
(Spike noise can be eliminated most effectively when a diode is connected at the closet possible
position to the coil).
Internal circuit configuration (Optional PNP specification)
External
power supply
24 VDC
Pin No.
Rectifier
Each output
Internal circuit
Fuse resistance:
Load
Each output
Load
External
power supply
24 VDC
Pin No.
Rectifier
Internal circuit
Fuse resistance:
Load
Load
