1.5 Installation Environment and Noise Elimination
Pay due attention to the installation environment of the controller.
1.5.1 Installation Environment
(1) When installing and wiring the controller, do not block the cooling ventilation holes. (Insufficient ventilation
will not only prevent the controller from demonstrating its full performance, but it may also cause
breakdown.)
(2) Prevent foreign matter from entering the controller through the ventilation holes. Since the enclosure of the
controller is not dustproof or waterproof (oilproof), avoid using the controller in a place subject to significant
dust, oil mist or splashes of cutting fluid.
(3) Do not expose the controller to direct sunlight or radiating heat from a large heat source such as a heat
treatment furnace.
(4) Use the controller in an environment free from corrosive or inflammable gases, under a temperature of 0 to
40 C and humidity of 85% or less (non-condensing).
(5) Use the controller in an environment where it will not receive any external vibration or shock.
(6) Prevent electrical noise from entering the controller or its cables.
1.5.2 Power Supply
The power supply specification is 24 VDC, 100 VAC or 200 VAC depending on the controller type.
1.5.3 Noise Elimination and Grounding
(1) Wiring and power supply
[1] 100/200-VAC controller
PE on the power terminal block is a protective grounding terminal. Provide Class D grounding.
Use a grounding cable of 0.75 mm
2 (AWG18) or larger. The grounding cable must be longer than the AC
cable.

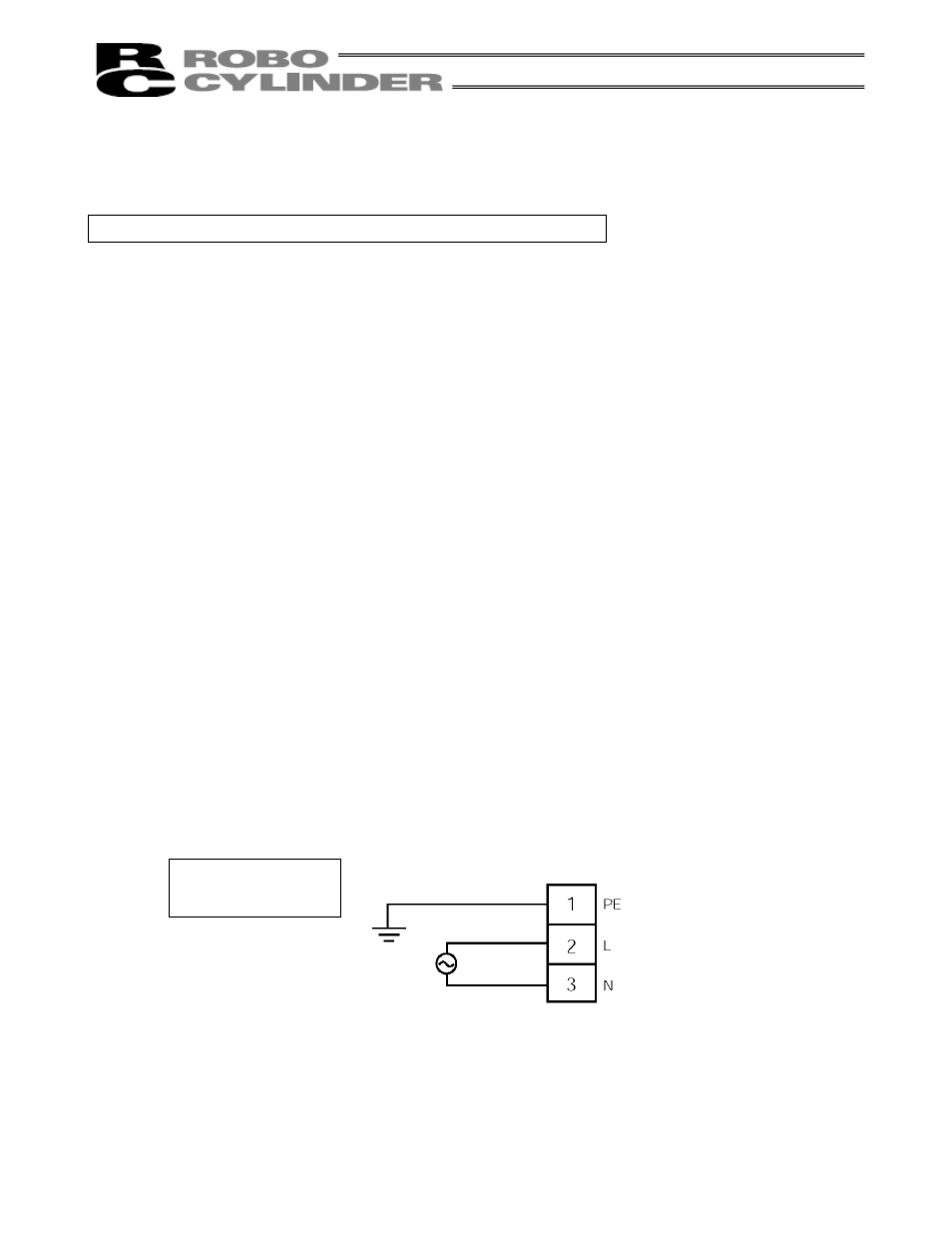

Class D grounding
(protective grounding)
100/200-VAC power supply
