59

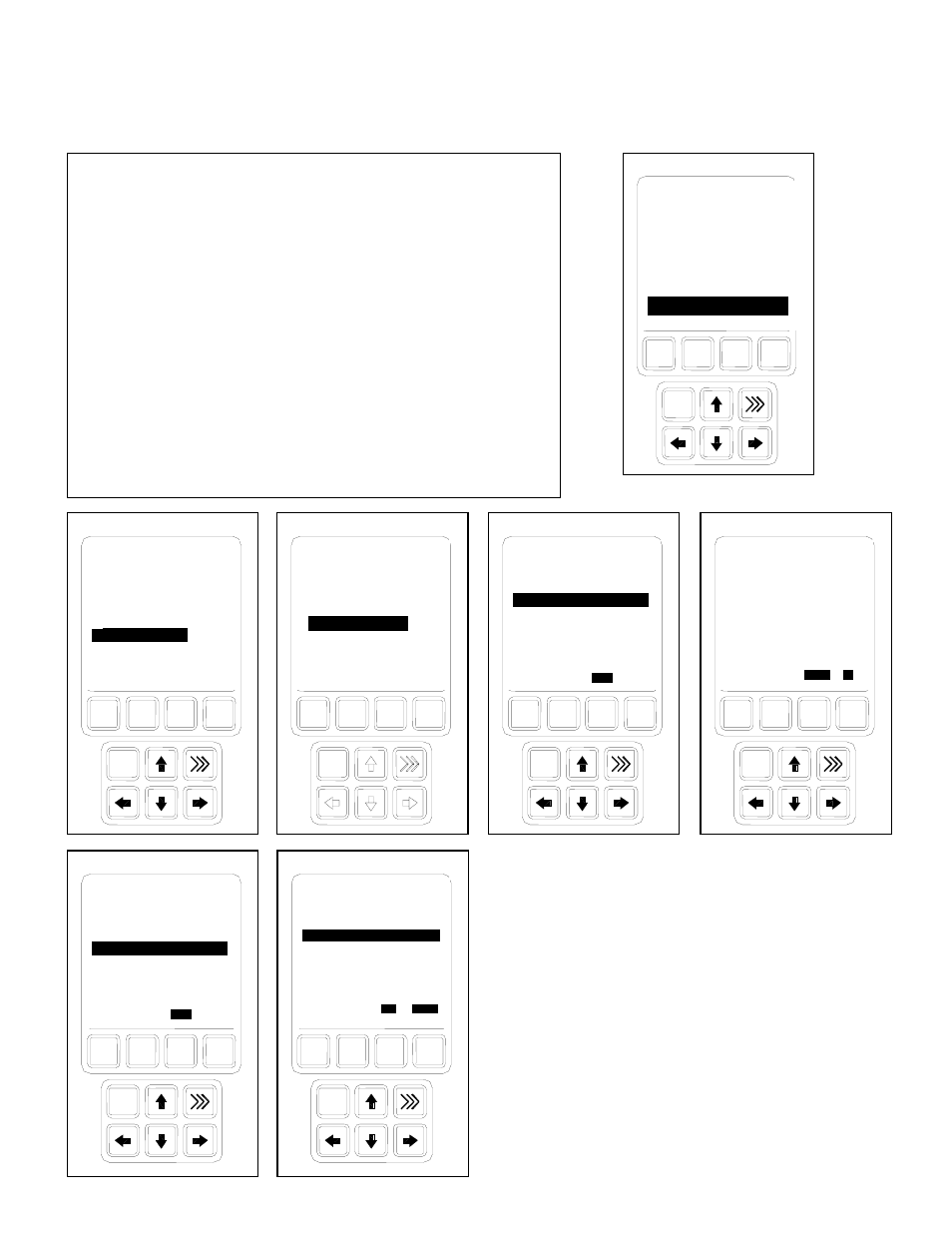

Quick Start Reference – Calibrating Flow Rate
(For Completion of a Dual Point Calibration)
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow Gauge
Main Menu
Variables
Status Display
Configuration
Digital Outputs
Digital Inputs
→
Calibration .
Diagnostics
Step 1 High Calibrate
(Have the maximum flow input ready)
Scroll down ↓ to “Calibration” Press → to enter menu
Scroll down ↓ to “Cal Flow Rate” Press the → to enter menu
Scroll down ↓ to “High Calibrate” Press the → to enter menu
Select “High Flow Rate Cal” press → to enter menu
Read the next screen carefully and acknowledge by pressing the F4
(OK) Key. Calibration will begin. (This may take several minutes.)
Scroll down ↓ to “High Flow Rate” Press → to enter menu
Notice the value that is displayed.
Use
← Key and → Key to toggle back and forth between digits.
Change the value using ↑ or ↓
Enter the value of the process (Example 8 Gal per min.).
Press The F4 Key to enter and store the value.
Press the F3 Key (Home) to return to the Main Menu.
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow
Gauge
High Calibrate
→High Flow Rate Cal .
High Flow Rate 2.00
High Cap Value 280
Pulse Factor 0.4600
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow Gauge
Calibration
State Fully Calibra
Ref Constants
Cal Density
→Cal Flow Rate
Temp Reference
Cal Remote Solids
Last Ref.Date
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow Gauge
Cal Flow Rate
State
Low Reference
→High Calibrate
Manual Entry
Clear Ref/Cal
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow Gauge
Low Reference
WARNING – Remove
loop from automatic
control before doing
calibrate procedure.
ABORT OK
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow Gauge
High Calibrate
High Flow Rate Cal
→High Flow Rate 2.00
Cal Cap Val 280
Pulse Factor 0.4600
HOME
C
F1 F2 F3 F4
Ronan Engineering
X96S Mass Flow Gauge
Cal Density
2.0000 Gal per min
0.0000
ESC ENTER
