Quick Start Reference – Calibrating Density
(For Completion of a Single Point Reference)

Ronan Engineering
X96S Mass Flow Gauge
Main Menu
Variables
Status Display
Configuration

Digital Outputs
Digital Inputs

→

Calibration

Diagnostics

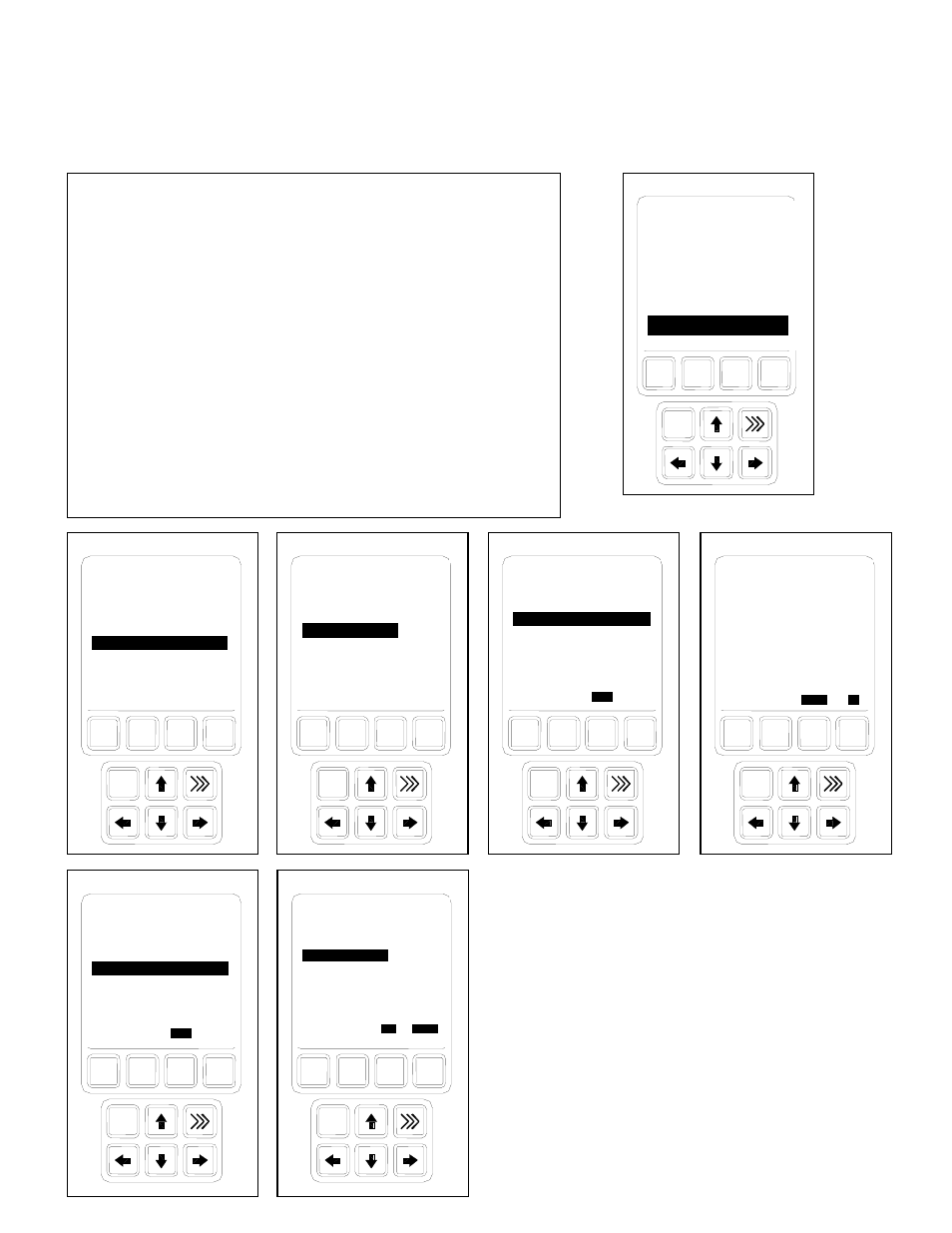

Step 3 ‘Low Reference Density’ Calibration

(Have the process ready filled with water)

Scroll down

↓ to “Calibration” Press → to enter menu

Scroll down

↓ to “Cal Density” Press the → to enter menu

Scroll down

↓ to “Low Reference” Press the → to enter menu

Select “Perform Reference” press

→ to enter menu

Read the next screen carefully and acknowledge by pressing the F4
(OK) Key. Referencing will begin. (This may take several minutes.)

Scroll down

↓ to “Ref Density” Press → to enter menu

Notice the value that is displayed.
Use

← Key and → Key to toggle back and forth between digits.

Change the value using

↑ or ↓

Enter the value of the process (Example 0.0000 %Solids for water).
Press The F4 Key to enter and store the value.
Press the F3 Key (Home) to return to the Main Menu.

Ronan Engineering
X96S Mass Flow

Gauge

Low Reference

→Perform Reference

Ref Density 0.0000
Ref Cap 20000

HOME
